G19E
MAINTENANCE

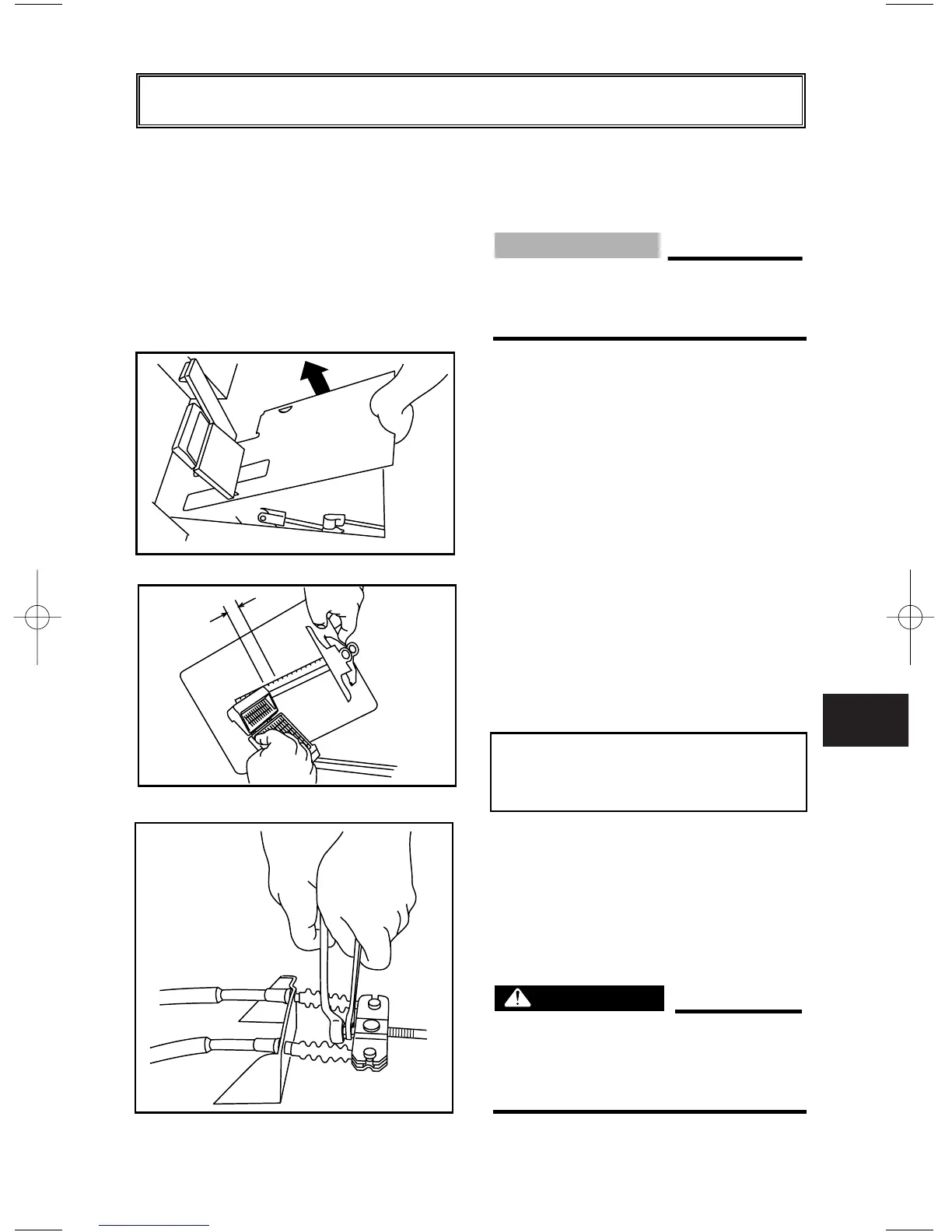

Brake Pedal Free Play
Adjustment
Before adjusting brake pedal free
play, pump the brake pedal several
times to self-adjust the brakes.
To adjust the brake pedal free play:
1. Remove the service lid from the
floor of the golf car.
2. Check the brake pedal free play
by pressing against the pedal
with two fingers (using light force)
and measuring the distance the
pedal travels before resistance is
felt.
Brake pedal free play:
25-30 mm (0.98-1.18 in.)
3. If the free play distance needs
adjusting, loosen the lock nut and
turn the adjusting nut in or out
until the free play specification is
met. Then tighten the lock nut in
place.
Do not overtighten the brake
cables. The self adjusters may not
operate properly, reducing braking
performance.
WARNING
CAUTION
Y-61
7
18
17
16
15
14
13
12
11
10
9
8
Y-62
25-30 mm
Y-63
