4-2
4
EBU26691
Indicator lights and warning lights
EBU17830
Reverse indicator light “”
This indicator light comes on when the transmis-
sion is in the reverse position.
EBU17860
Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.
EBU17900
Coolant temperature warning light “”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the light does
not come on, have a Yamaha dealer inspect the
electrical circuit.
CAUTION:
ECB00010
● The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.

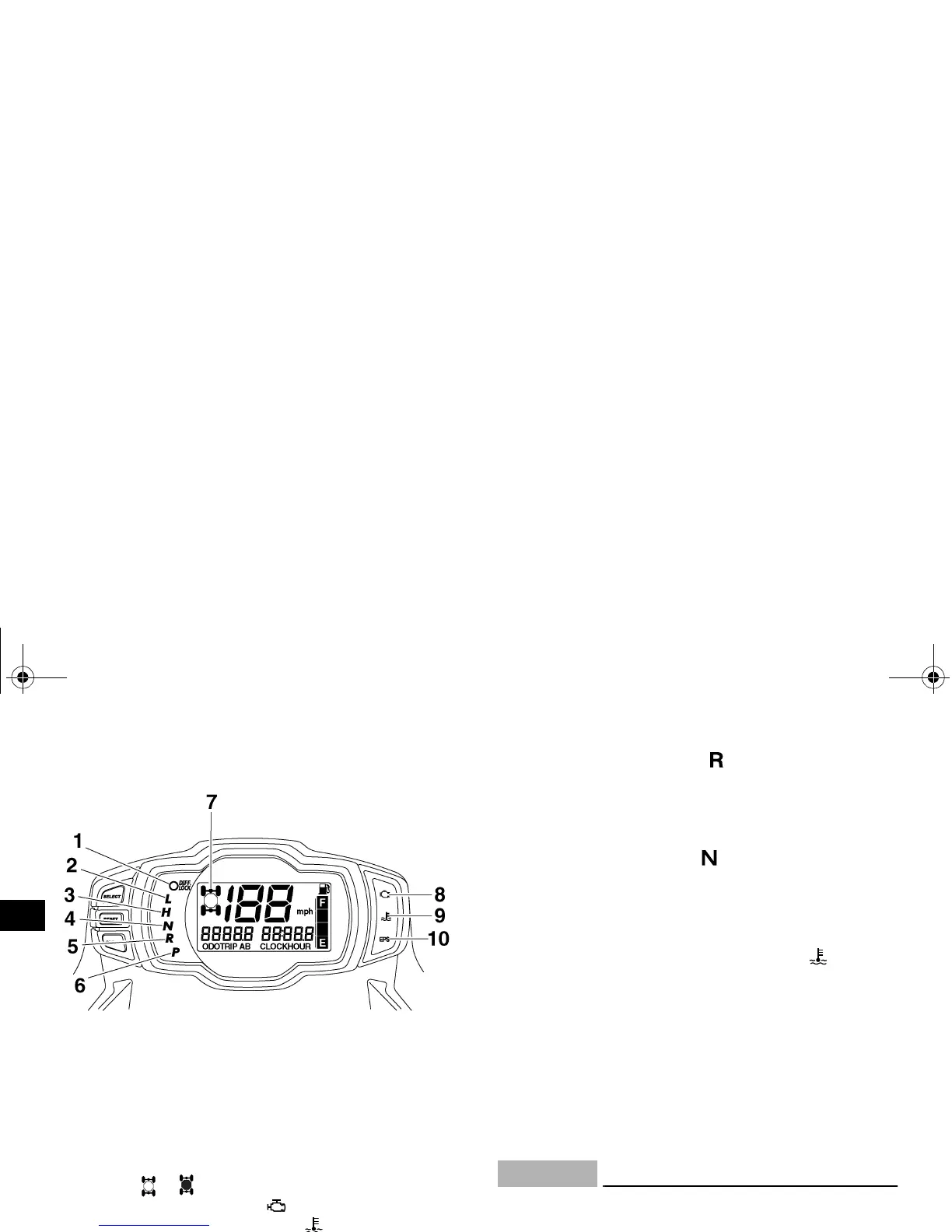

1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator “”/“”
8. Engine trouble warning light “”
9. Coolant temperature warning light “”
10.EPS warning light “EPS”
DIFF.
LOCK
