4-6
EBU00447

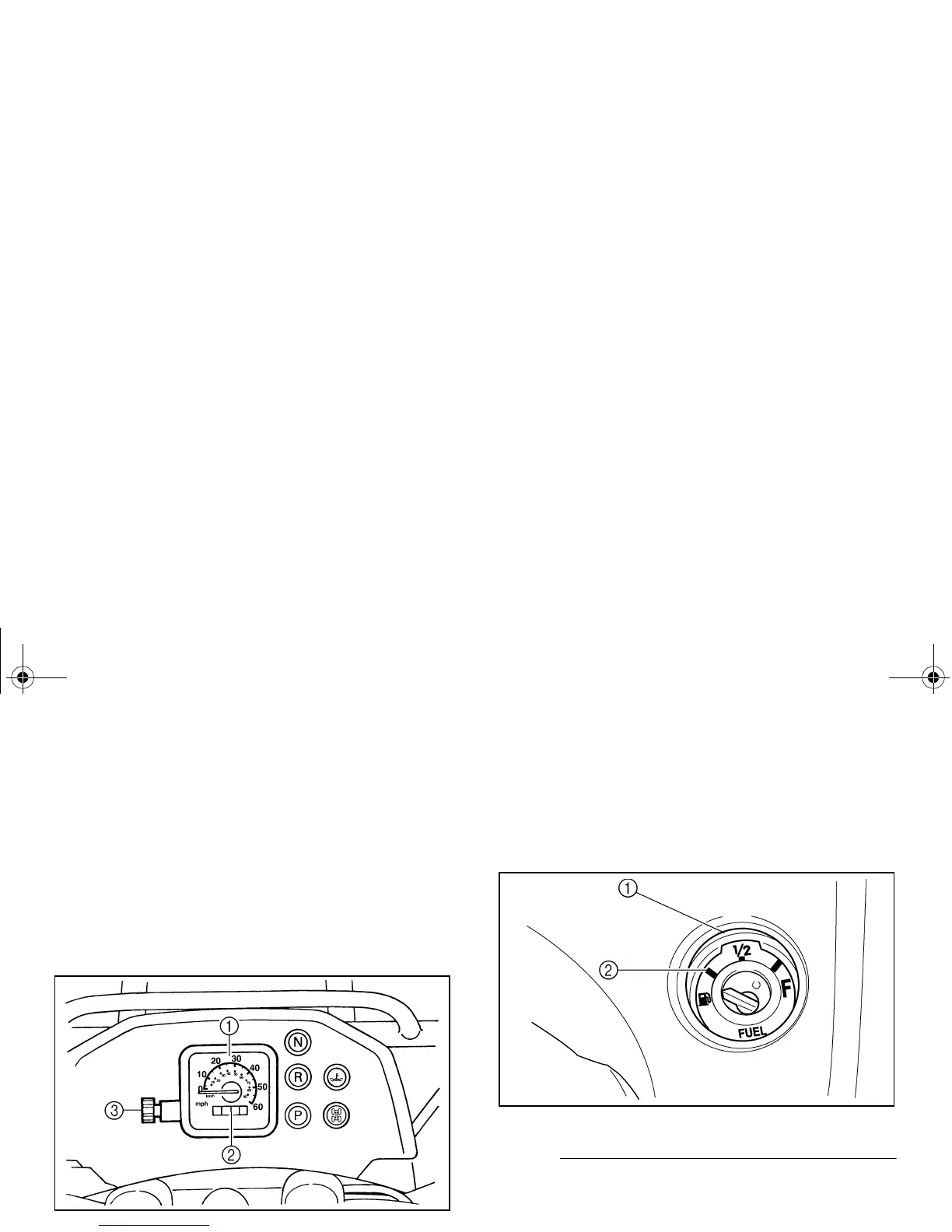

Speedometer
The speedometer shows riding speed. This
speedometer is equipped with a trip odome-
ter. The trip odometer can be reset to “0” with
the reset knob. Use the trip odometer to esti-
mate how far you can ride on a tank of fuel be-
fore going to reserve. This information will
enable you to plan fuel stops in the future.
1. Speedometer 2. Trip odometer
3. Reset knob
EBU00052
Fuel gauge
The fuel gauge indicates the amount of fuel in
the fuel tank. When the needle reaches the
red line, refill the tank at the first opportunity.
1. Fuel gauge 2. Red line
NOTE:
If the machine runs out of fuel, move the fuel
cock lever to the “RES” position. Approxi-
mately 4.5 L (0.99 Imp gal, 1.19 US gal) of
fuel will be remaining in the tank.
