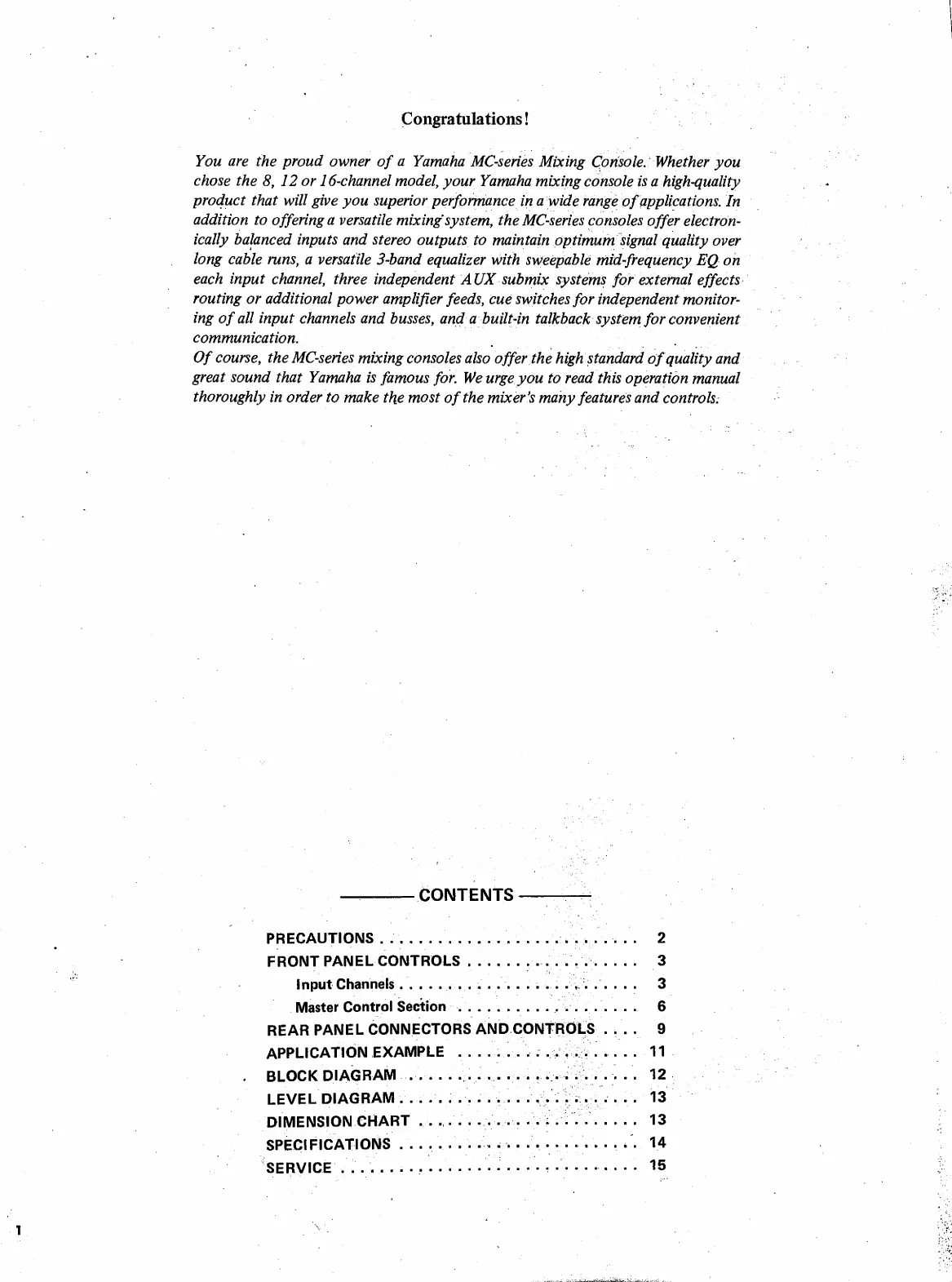

Congratulations!
You are the proud owner of a Yamaha MC-series Mixing Console.’ Whether you
chose the 8, 12 or 16-channel model, your Yamaha mixing console is a high-quality
product that will give you superior performance in a wide range of applications. In |
addition to offering a versatile mixing system, the MC-series consoles offer electron-
ically balanced inputs and stereo outputs to maintain optimum ‘signal quality over
long cable runs, a versatile 3-band equalizer with sweepable mid-frequency EQ. on
each input channel, three independent AUX .submix systems for external effects.
routing or additional power amplifier feeds, cue switches for independent monitor-
ing of all input channels and busses, and a built-in talkback system for convenient
communication. mE М
Of course, the MC-series mixing consoles also offer the high standard of quality and
great sound that Yamaha is famous for. We urge you to read this operation manual
thoroughly in order to make the most of the mixer’s many features and controls:
1
— — —— CONTENTS
PRECAUTIONS elle "m el vies. 2
FRONT PANEL CONTROLS ...... и... 3
їприї Сћаппеб........ ә зз: ~ A Ses. 3
. Master Control Section: DENEN TE - .. 6
REAR PANEL CONNECTORS AND CONTROLS . 9
APPLICATION
EXAMPLE
.....
0.5.00
cre
ee
ey
11.
ВЕОСК О!АбВАМ .................1....... 12.
LEVEL DIAGRAM... iere Rees 18.
DIMENSION CHART .... ee iere 13
SPECIFICATIONS ... ies. 14
SERVICE es ce D reels 15
а а aA aa A уље sol
