FILTER EG Settings
The FILTER EG (Envelope Generator) determines the transition in timbre while the key is being
held down. There are five handles, each controlling a different stage in the envelope. The first
handle (furthest to the left) controls the “Hold Time/Level.” The second controls the “Attack Time/
Level.” The third controls the “Decay 1 Time/Level.” The fourth controls the “Decay 2 Time/Sustain
Level.” The last square mark (furthest to the right) controls the “Release Time/Level.” Drag the
handles vertically to adjust levels, and horizontally to adjust the transition times.
n To set these values directly, select the “FILTER EG” tab of the “EL DETAIL” dialog.
AMPLITUDE EG Settings
Controls the transition in volume from the moment a Note On message is received (attack) to the
point at which the sound stops (release). Drag the leftmost ■ up or down to set the velocity of the
attack time. Drag the second ■ left or right to set the envelope attack time, and drag it up or down
to set the attack level. Dragging the third and fourth ■ left or right controls the way the sound is
sustained (Decay Time 1 & 2) while the keys on the keyboard are held down, and dragging them
up or down control the Decay 1 Level and Sustain Level. Dragging the last ■ left or right controls
the how long the sound is heard after receiving a Note Off message (Release Time).
n To set these values directly, select the “AMP EG” tab of the “EL DETAIL” dialog.

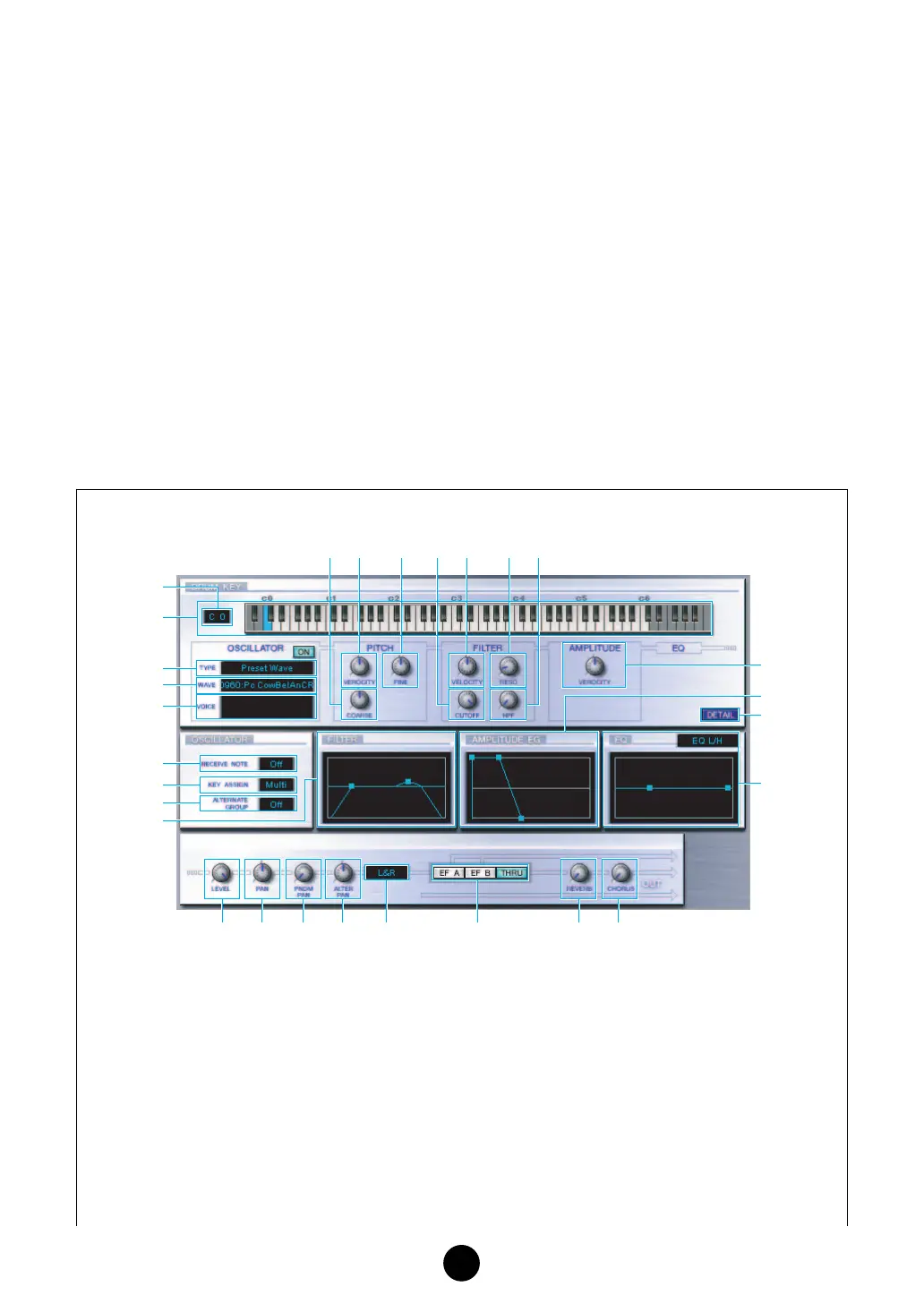

“DRUM KEY” Dialog
1 Key .................................. Indicates the note name to be edited.
2 Keyboard.........................Click on the keyboard to specify note assigned to the Element or Voice
you are editing. The text box to the left shows the note name.
3 TYPE ..............................Determines the bank of the sound source: Preset/User wave or Voice.
4 WAVE.............................. To select a waveform as the source, click this and then the text box
next to it to select the waveform.
5 VOICE.............................To select a voice as the source, click this and then the text box next to
it to open the “Voice List” dialog.
6 COARSE......................... Use the “COARSE” knob to tune the Element’s pitch in coarse incre-
ments (semitones).
7 VELOCITY ......................Use the “VELOCITY” knob to define how the Element’s pitch varies
with note velocity.
