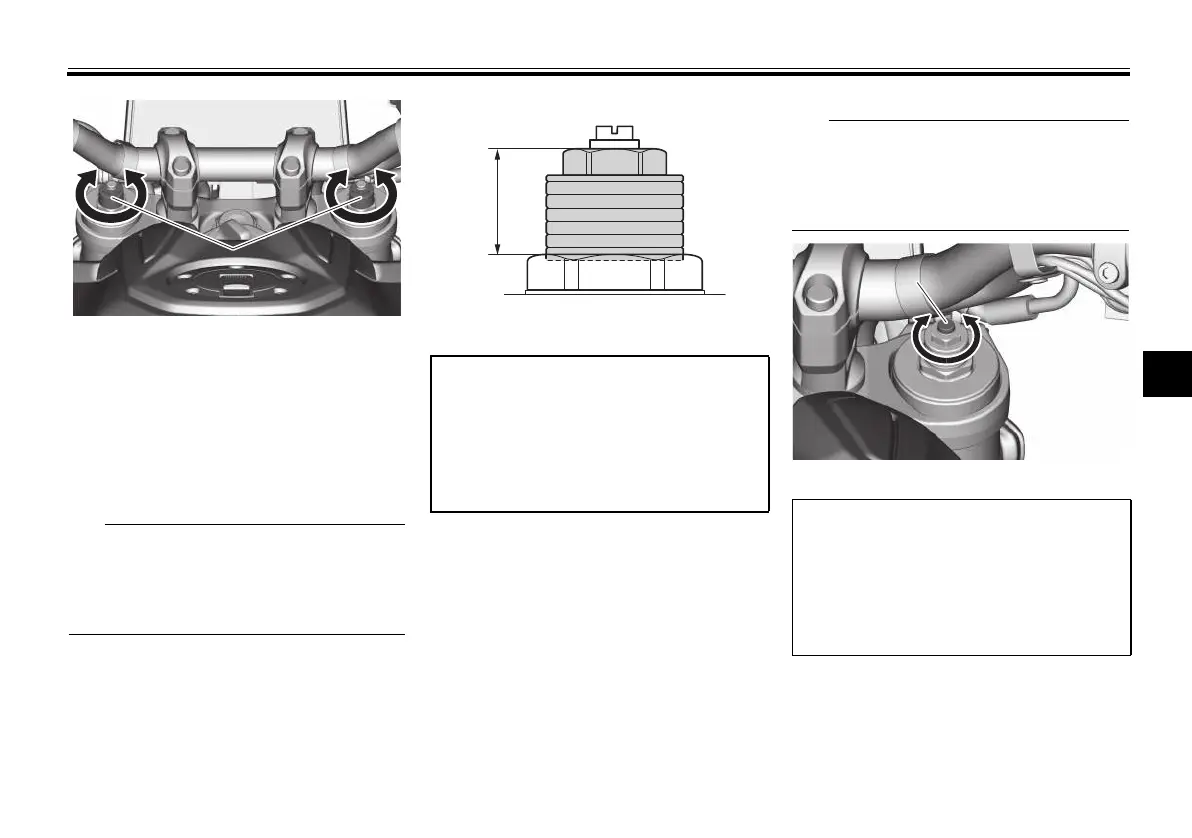

The spring preload setting is deter-
mined by measuring distance A, as
shown in the illustration. The shorter
distance A is, the higher the spring pre-
load; the longer distance A is, the lower
the spring preload.
TIP
There are separate adjusters for the left
and right so copy any changes from
one side to the other to keep the set-
tings identical on both sides.
Rebound damping
Turn the adjuster in direction (a) to in-
crease the rebound damping.
Turn the adjuster in direction (b) to de-
crease the rebound damping.
To set the rebound damping, turn the
adjuster in direction (a) until it stops,
and then count the clicks in direction
(b).
TIP
There are separate adjusters for the left
and right so copy any changes from
one side to the other to keep the set-
tings identical on both sides.
1. Spring preload adjuster
(a)(a) (b)(b)(a) (b) (a)(a) (b)(b)(a) (b)
11
1. Distance A
Spring preload setting:
Minimum (soft):
Distance A = 19.0 mm (0.75 in)
Standard:
Distance A = 14.0 mm (0.55 in)
Maximum (hard):
Distance A = 4.0 mm (0.16 in)
1
1. Rebound damping force adjuster
Rebound damping setting:
Minimum (soft):
26 click(s) in direction (b)
Standard:
11 click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
(a)(a)(a) (b)(b)(b)
11
