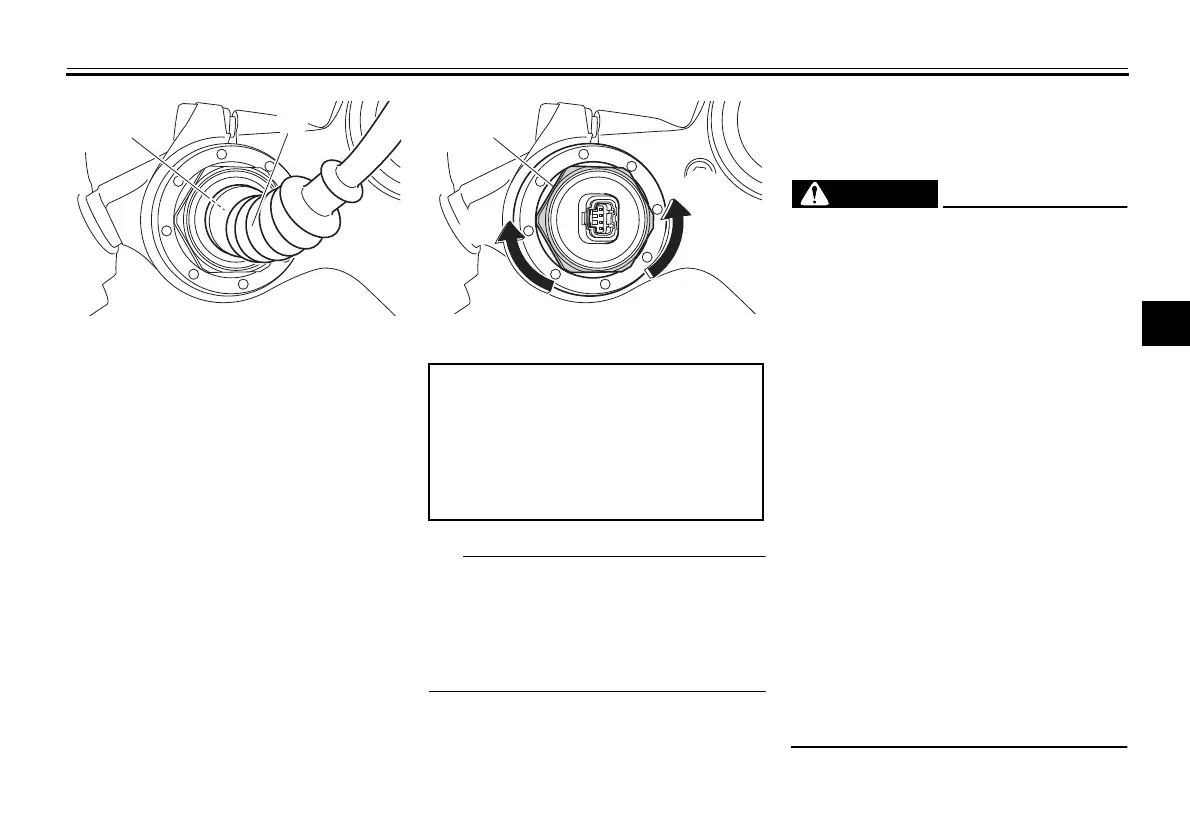

4. Turn the adjusting bolt in direction
(a) to increase the spring preload.
Turn the adjusting bolt in direction
(b) to decrease the spring preload.
To set the spring preload, turn the
adjuster in direction (b) until it
stops, and then count the turns in
direction (a).
When turning the spring preload adjust-
er in direction (a), it may turn beyond
the stated specifications, however such
adjustments are ineffective and may
damage the suspension.
5. Attach the coupler on each fork.
6. Slide the rubber cover to the origi-
nal position.
EAU94880
Adjusting the shock absorber
assembly
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
Do not tamper with or attempt to
open the cylinder assembly.
Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
This model is equipped with ÖHLINS
1. Rubber cover
2. Coupler
2
1
1. Spring preload adjusting bolt
Spring preload setting:
Minimum (soft):
0 turn(s) in direction (a)
Standard:
11 turn(s) in direction (a)
Maximum (hard):
15 turn(s) in direction (a)
1
(a)
(b)
