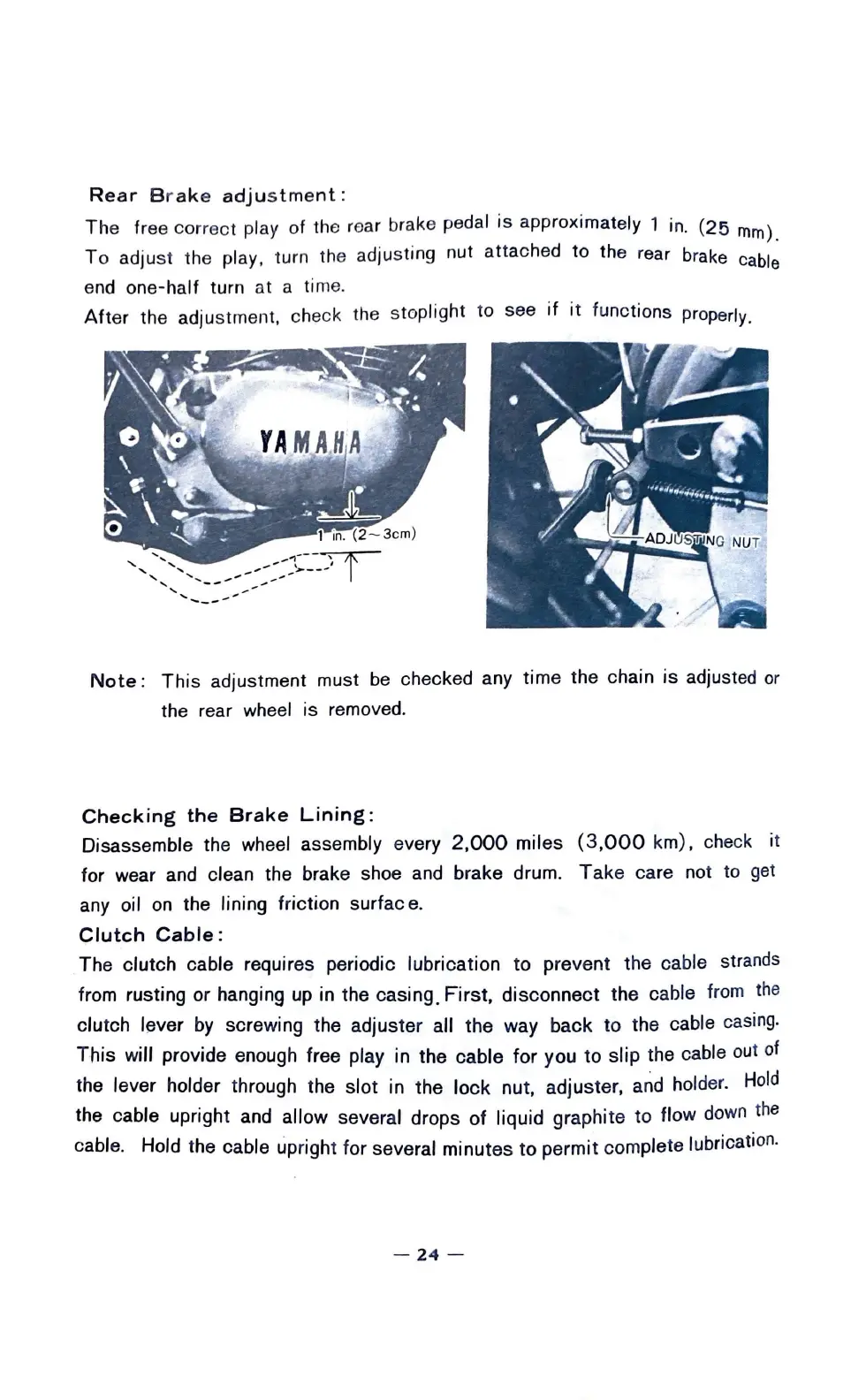

Rear
Brake
adjustment:
The free correct play of the rear brake pedal is approximately 1
in.
(25
mm).
To
adjust the play, turn the adjusting nut attached to the rear
brake
cable
end one-half turn at a time.
After
the adjustment, check the stoplight to see
if it
functions properly.
\
\
~-
0 \
Note:
This adjustment must
be
checked any time the chain is adjusted
or
the rear
wheel
is
removed.
Checking
the
Brake
Lining:
Disassemble the
wheel
assembly every
2.000
miles
(3.000
km), check it
for wear and clean the brake shoe
and
brake drum. Take care not to
get
any oil
on
the lining friction surface.
Clutch
Cable:
The clutch cable requires periodic lubrication
to
prevent the cable strands
from rusting or hanging
up
in
the casing,
First.
disconnect the cable
from
the
clutch lever
by
screwing the adjuster all the way back to the cable
casing.
This will provide enough free play in the cable for you to slip the cable
out
of
the lever holder through the slot in the lock nut. adjuster.
a~d
holder.
Hold
the cable upright
and
allow several drops
of
liquid graphite to flow
down
the
cable. Hold the cable upright for several minutes
to
permit complete lubrication.
