19
DGX-530/YPG-535

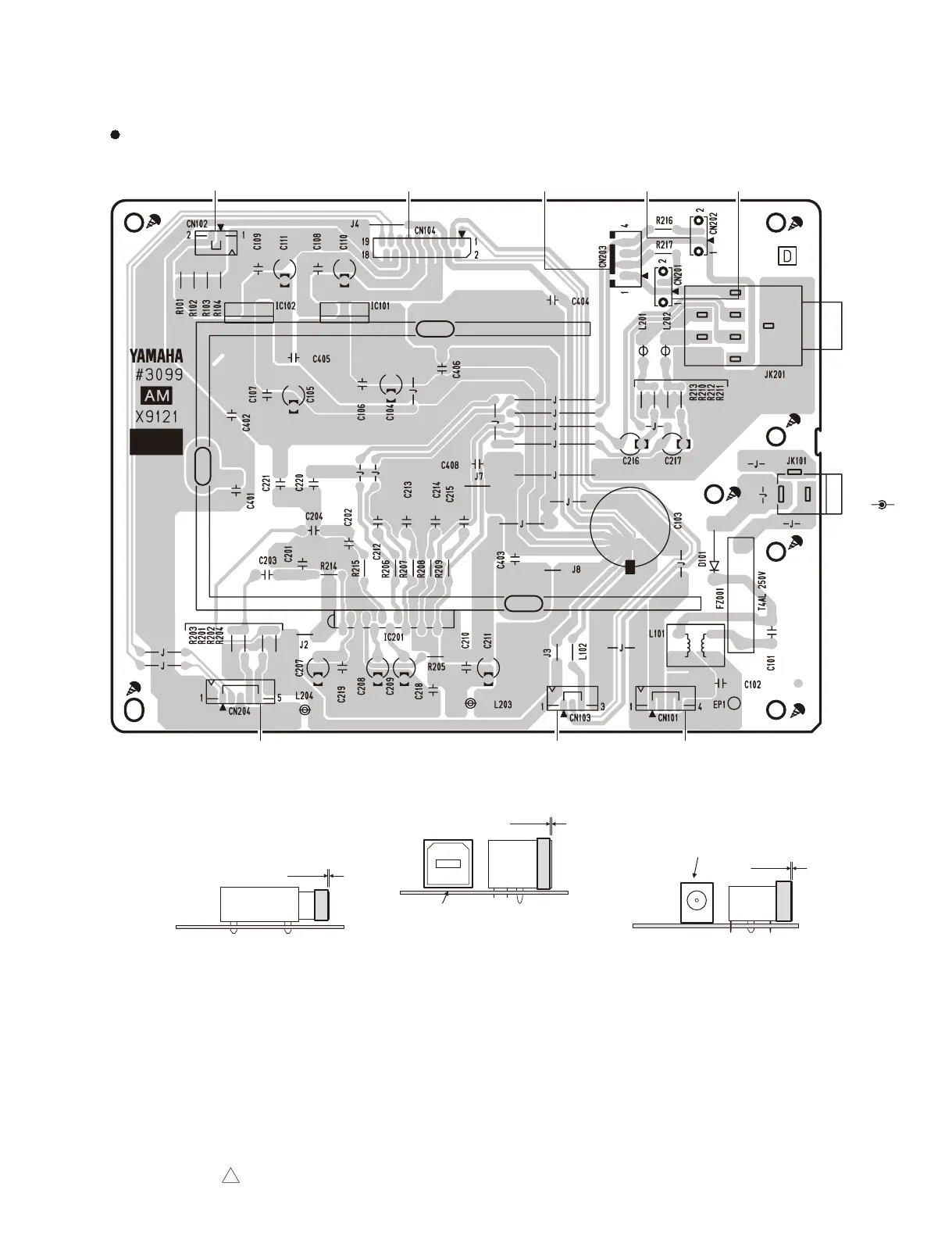

AM Circuit Board
Component side
to Backlight assembly
to DM-CN901
to Speaker
(Woofer)
to TW (R) to TW (L)
+ –
DC IN 12V
PHONES/
OUTPUT
to PSW-CN501to PB-CN401to MVR-CN601
A nonwoven fabric does not overflow
from the end of a jack.
PWB
JK201,JK301
JK302
PWB
0 - 0.5mm
0.5 -1.0mm
The nonwoven fabricis prevented from
overlapping on the PWB side.
PWB
JK101
0 - 0.5mm
To pile it up in the upper side, it is pasted.
2NA-WG25900
