PERIODIC MAINTENANCE AND ADJUSTMENT
7-8
1
2
3
4
5
6
7
8
9
10
11
12
EAU18713

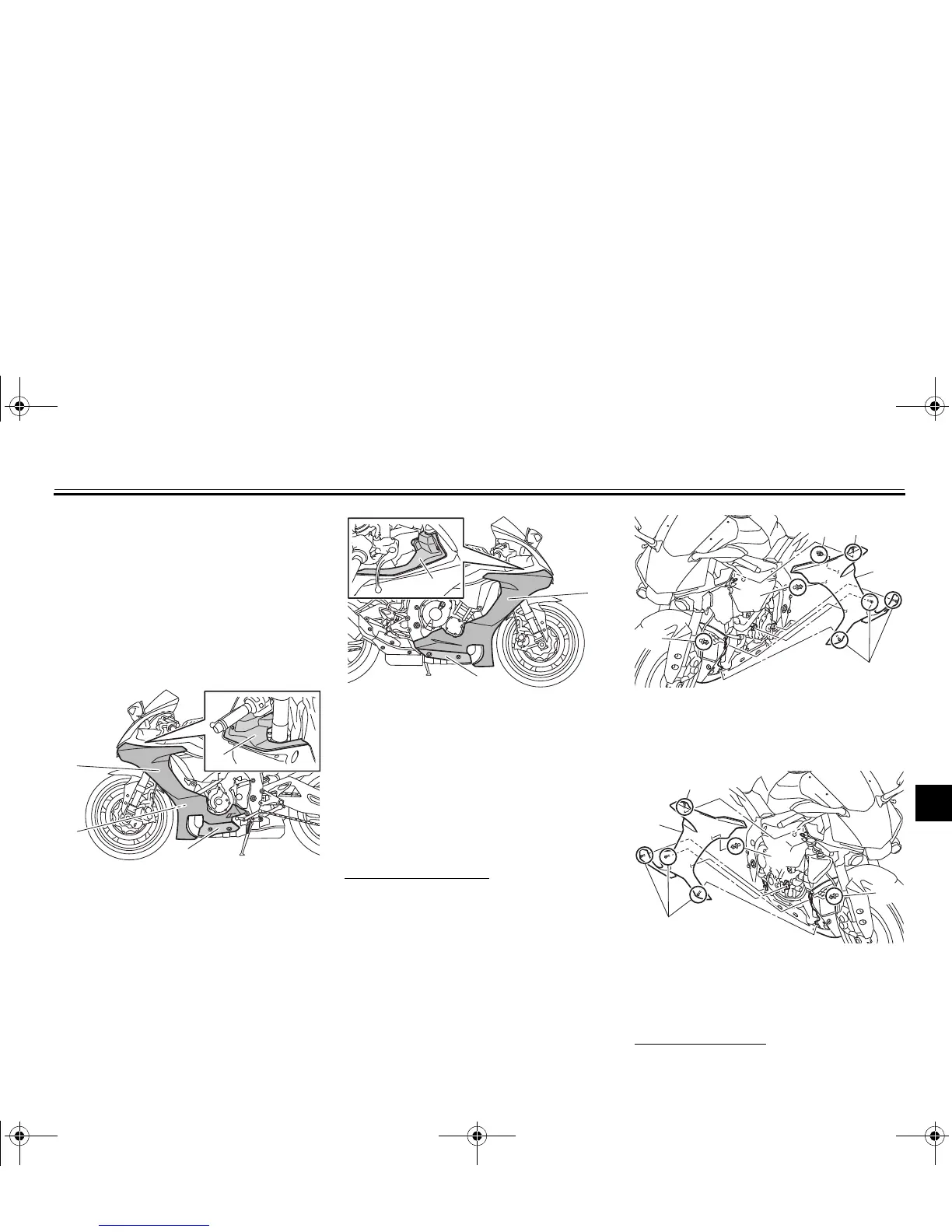

Removing and installing
cowlings and panels
The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU66972
Cowlings A and B (for YZF-R1)
To remove a cowling
Remove the quick fastener screws and
the quick fasteners, and then take the
cowling off.
To install a cowling
Place the cowling in its original position,
1. Panel A
2. Cowling A
3. Cowling C
4. Panel B
1
2
3
4
1. Panel C
2. Cowling B
3. Panel D
1
2
3
1. Cowling A
2. Quick fastener screw
3. Quick fastener
1. Cowling B
2. Quick fastener screw
3. Quick fastener
1
2
3
2
3
3
1
2
3
2
3
2CR-9-E0_1.book 8 ページ ２０１５年１月５日 月曜日 午前１１時５４分

Yamaha R1 YZF-R1 Specifications

General

Bore x Stroke	79.0mm x 50.9mm
Compression Ratio	13.0:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	190/55ZR17
Maximum Power	200 PS (147.1 kW) @ 13, 500 rpm
Maximum Torque	11, 500 rpm
Fuel System	Fuel Injection
Ignition	TCI
Transmission	6-speed
Front Suspension	43mm inverted fork; fully adjustable
Rear Suspension	Monoshock; fully adjustable
Front Brakes	Dual 320mm discs
Rear Brakes	220 mm hydraulic disc, ABS
Length	2, 055 mm
Width	690 mm
Height	1, 150 mm
Wheelbase	1, 405 mm
Seat Height	855 mm
Ground Clearance	130 mm
Fuel Capacity	17 L
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline 4-cylinder
