1.

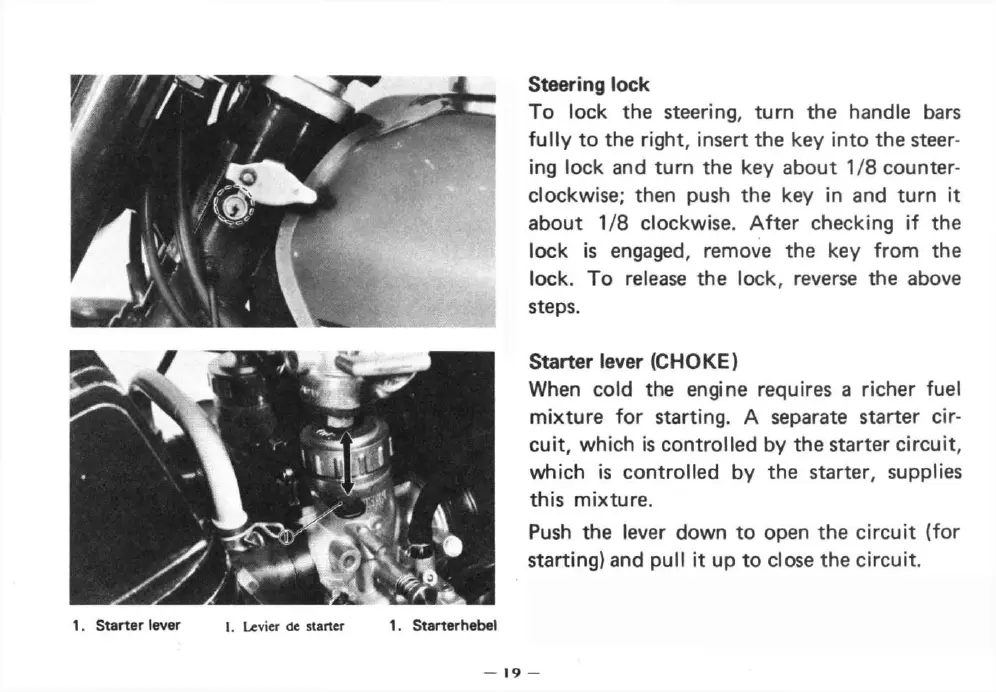

Starter lever l. Levier de starter 1. Starterhebel
Steering lock
To lock the steering, turn the handle bars
fully to the right, insert the key into the steer-
ing lock and turn the key about 1/8 counter-
clockwise; then push the key in and turn it
about 1/8 clockwise. After checking if the
lock is engaged, remove the key from the
lock. To release the lock, reverse the above
Steps.
Starter lever (CHOKE)
When cold the engine requires a richer fuel
mixture for starting. A separate starter cir-
cuit, which is controlled by the starter circuit,
which is controlled by the starter, supplies
this mixture.
Push the lever down to open the circuit (for
starting) and pull it up to close the circuit.
— 19 —
