Yamaha RT100 - Description; Left View; Controls;Instruments; Right View

R
2-1
DESCRIPTION
/home/Imai/imai_data/YMC-om/AB9239_RT100-26/English/E-2.frame

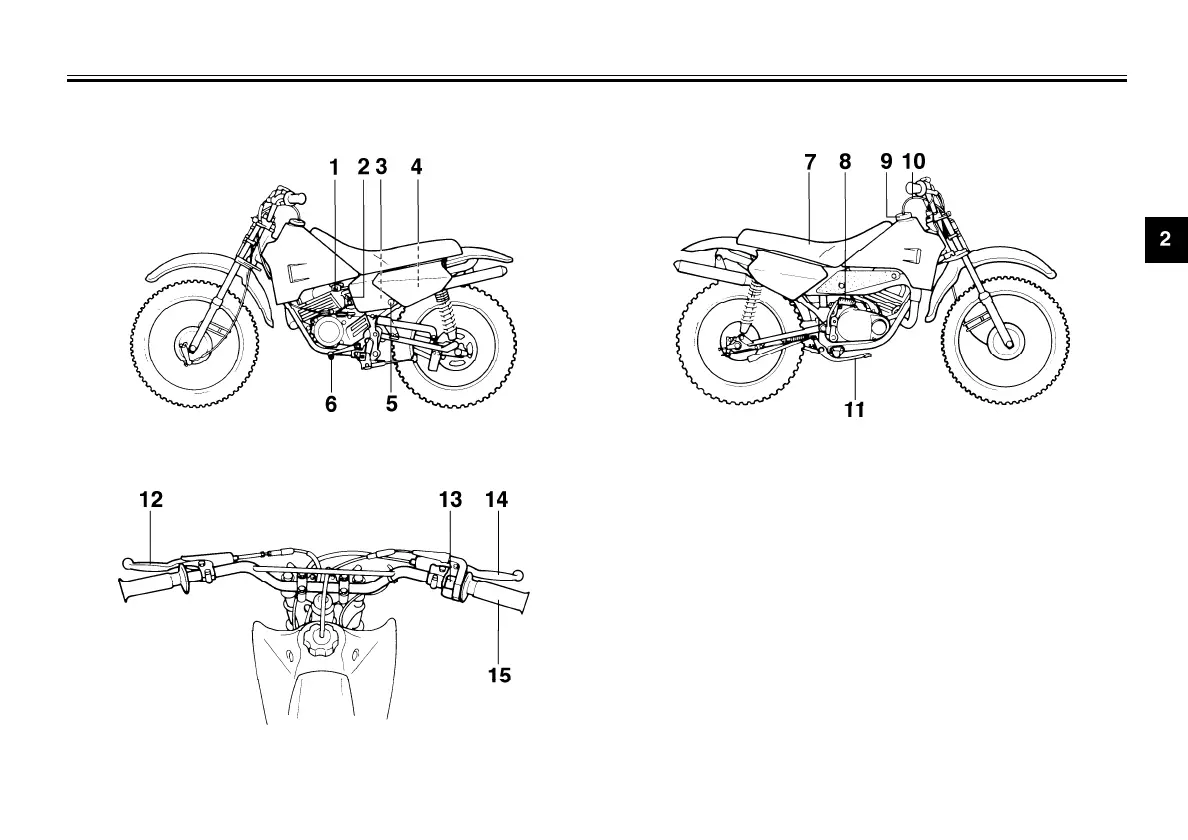

Left view
Controls/Instruments
EAU00026
Right view
1. Fuel cock (page 3-4)
2. Starter (choke) (page 3-5)
3. Air filter (page 6-7)
4. Oil tank (page 3-4)
5. Oil level window (page 3-3)
6. Shift pedal (page 3-1)
7. Seat (page 3-6)
8. Kick starter (page 3-5)
9. Fuel tank cap (page 3-2)
10. Fuel tank breather hose
11. Rear brake pedal (page 3-2)
12. Clutch lever (page 3-1)
13. Engine stop switch (page 3-1)
14. Front brake lever (page 3-2)
15. Throttle grip (page 6-9)
