RX-V340/RX-V340RDS/HTR-5630/HTR-5630RDS/DSP-AX340
49
FUNCTION
(
3
)
P.C.B.
FUNCTION
(
1
)
P.C.B.
(Surface Mount Device)
(Surface Mount Device)

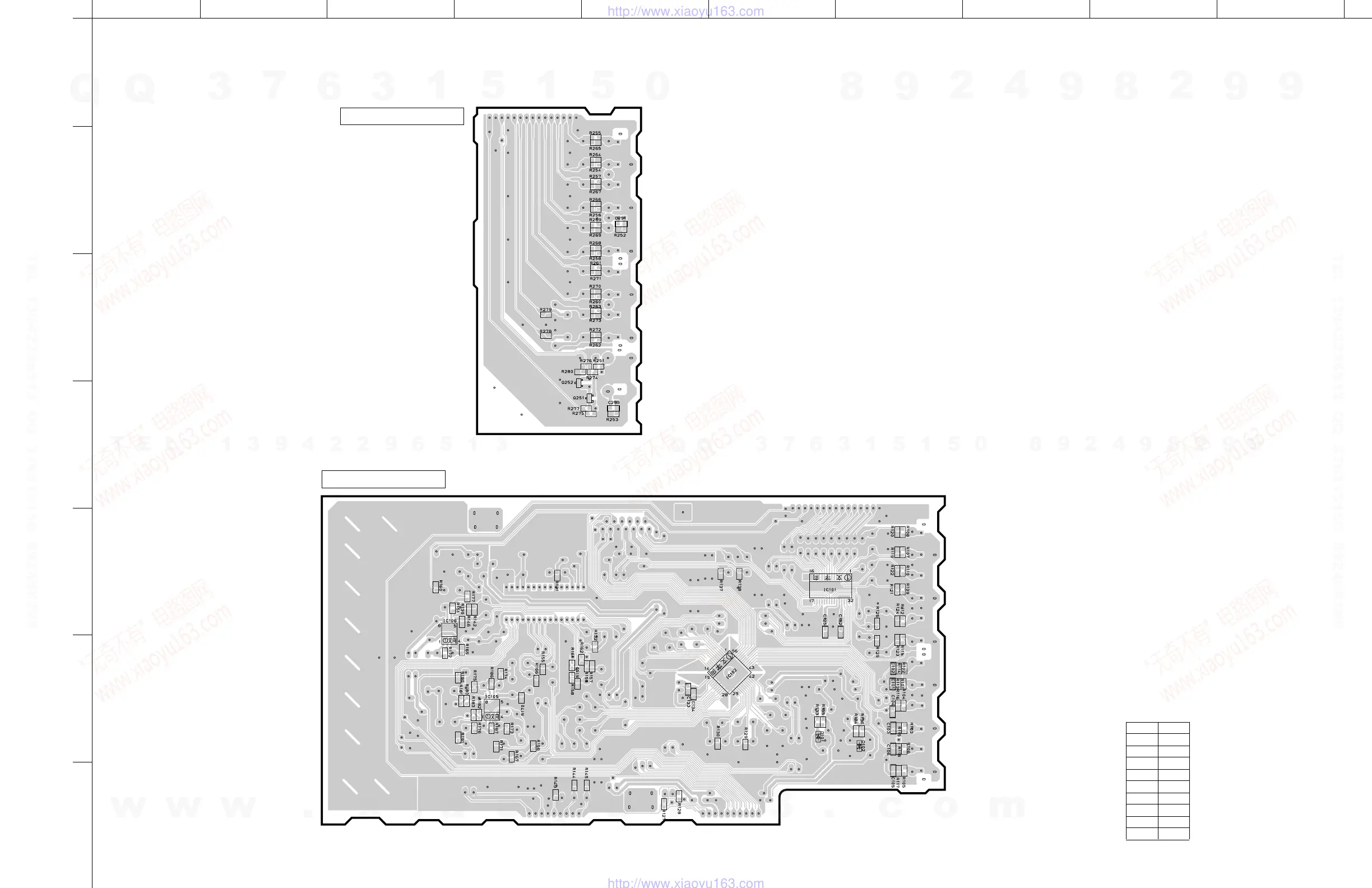

■ PRINTEDCIRCUITBOARD(Foilside)
Ref. No. Location
D101 F6
D102 G6
IC101 F5
IC102 F6
IC105 D6
IC106 C5
Q251 E4
Q252 D4
Q591 G2
• Semiconductor Location
