2-10

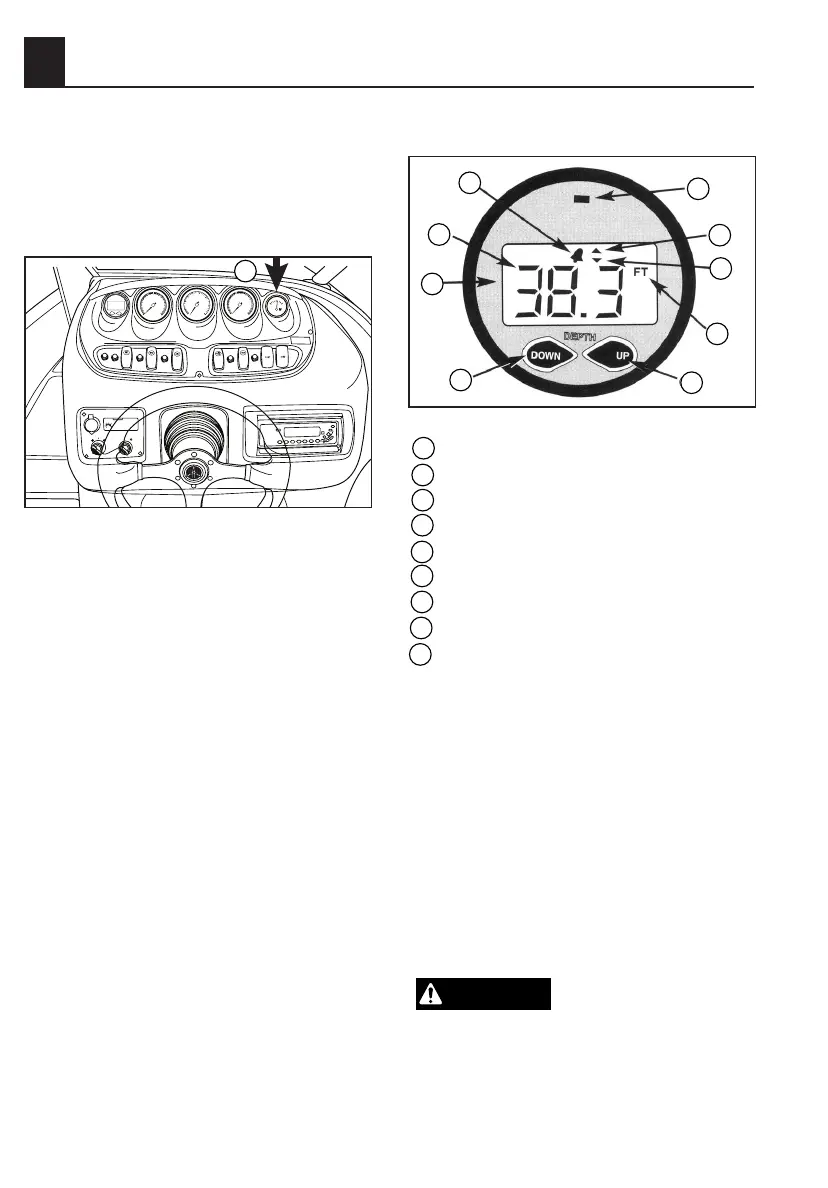

3. Fuel Level Gauge
The fuel level gauge 1 shows the
amount of fuel in the fuel tank. The
ignition switch must be in the “ON”
position to activate the gauge.
Always consider the distance you are
traveling and the amount of fuel you
have available. Be sure you have
enough fuel to reach your next fuel
stop. A good tip to remember is to use
a third of your fuel to get out, a third to
get back, and keep a third in reserve.
4. Depth Finder
Warning LED
Shallow Alarm Indicator
Deep Alarm Indicator
Units of Measure
Up Key
Down Key
Display
Depth Readout
Alarm Indicator
The Depth Finder continually monitors
and displays a reading of water depths
from 2.5 to 200 feet (0.8 to 61 meters).
The instrument calculates the depth by
emitting sound signals and measuring
how long it takes for the sound to
“echo” off the bottom. In addition, the
gauge can be set for each use to give
an alarm when a specified shallow-
water or deep-water depth is reached.
• The depth finder should not be
used as a navigational aid to pre-
vent grounding, boat damage, or
personal injury. Always operate
the boat at slow speeds in unfa-
2 FEATURES & FUNCTIONS
