OIL COOLER
6-4
EAS20064
OIL COOLER

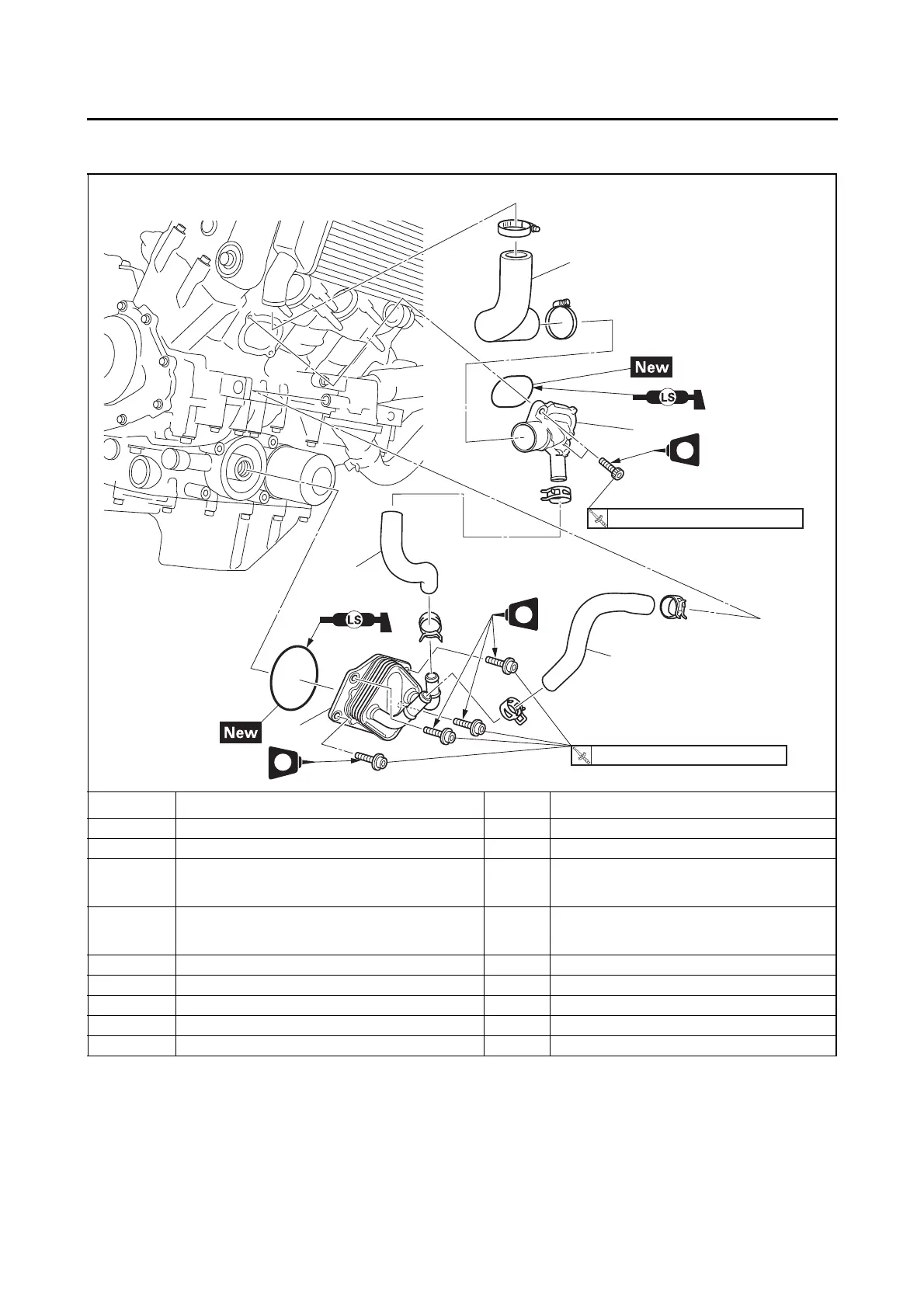

Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Coolant reservoir Refer to “RADIATOR” on page 6-1.
Muffler assembly Refer to “ENGINE REMOVAL” on page 5-3.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-27.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-24.
1 Radiator inlet hose 1
2 Oil cooler inlet hose 1
3 Oil cooler outlet hose 1
4 Oil cooler 1
5 Water jacket joint 1
LT
1
2
3
4
5
10 N・m (1.0 kgf・m, 7.2 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
LT
LT
