FUEL TANK
7-1
EAS20067
FUEL TANK

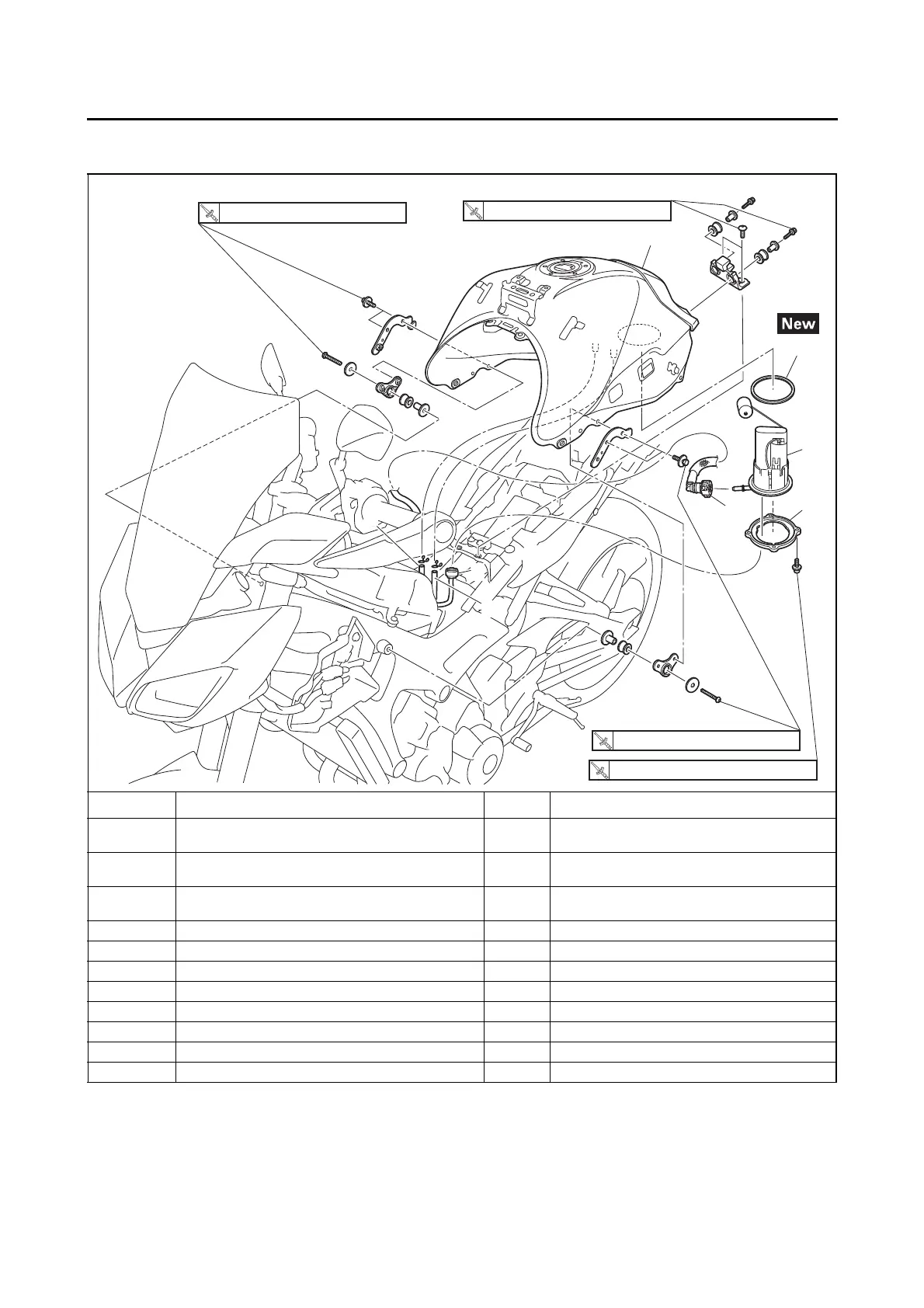

Removing the fuel tank
Order Job/Parts to remove Q’ty Remarks
Fuel tank front cover/Front side panel/Front side
cowling
Refer to “GENERAL CHASSIS (2)” on page
4-6.
Passenger seat/Rider seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank cover
Refer to “GENERAL CHASSIS (3)” on page
4-13.
1 Fuel hose connector 1 Disconnect.
2 Fuel pump coupler 1 Disconnect.
3 Fuel tank breather hose 1 Disconnect.
4 Fuel tank drain hose 1 Disconnect.
5Fuel tank 1
6 Fuel pump bracket 1
7 Fuel pump 1
8 Fuel pump gasket 1
1
2
3
4
5
5
6
7
8
(2)
(4)
(2)
(2)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
4.0 N・m (0.40 kgf・m, 2.9 lb・ft)
To Next Page
