CABLE ROUTING Fl

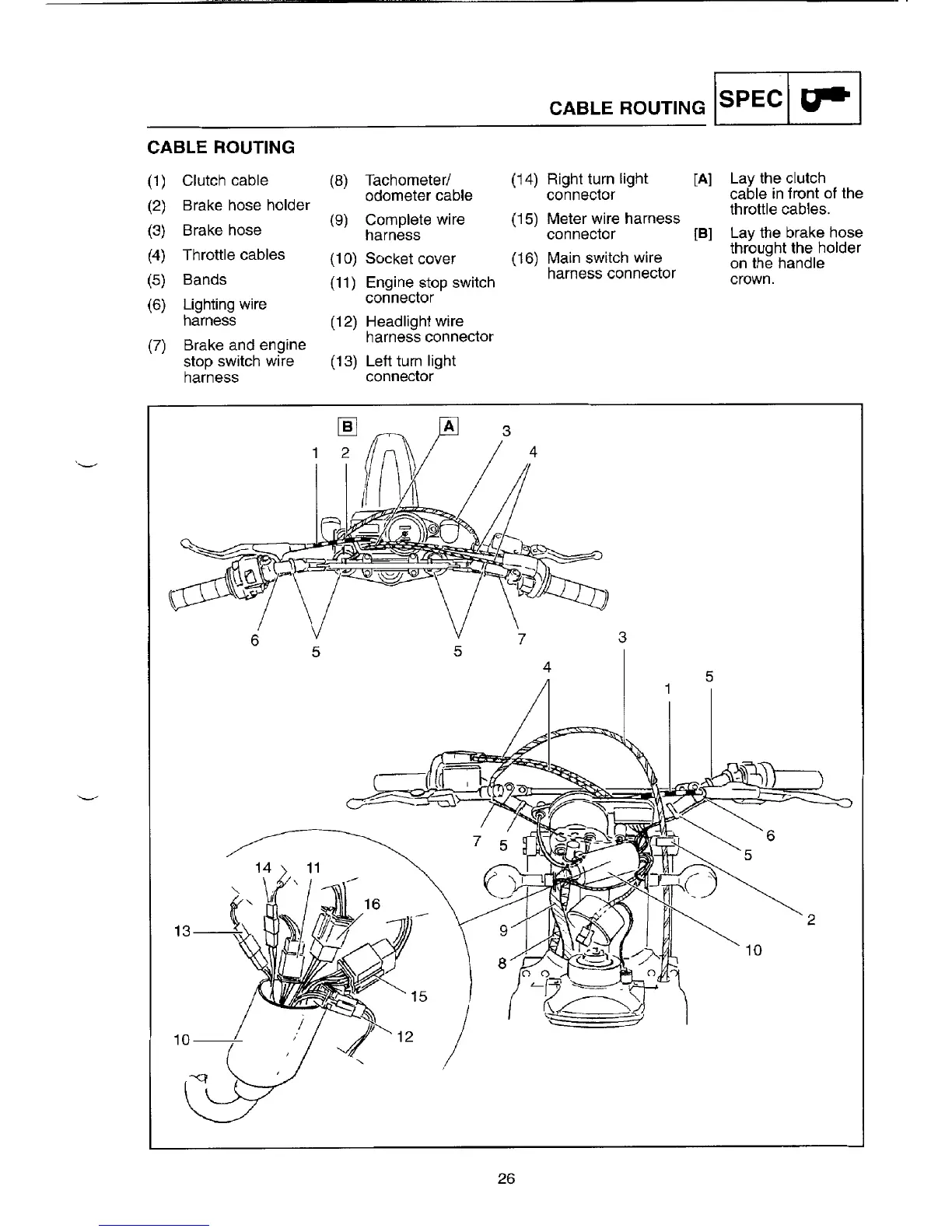

CABLE ROUTING
(1) Clutch cable (8) Tachometer/ (14) Right turn light [A] Lay the clutch
(2) Brake hose holder
odometer cable connector cable in front
of the
(9) Complete wire (1 5) Meter wire harness
throttle cables.
(3) Brake hose harness connector
[B] Lay the brake hose
(4) Throttle cables (1 0) Socket cover (16) Main switch wire
throught the holder
on the handle
(5) Bands (1 1) Engine stop switch crown.
(6) Lighting wire
connector
(7) Brake and engine
harness connector
harness connector
harness
(12) Headlight wire
stop switch wire
(13)
Left turn light
harness
connector
I I
