2-2
DESCRIPTION
2
9.
Spark arrester
(page 6-13)
10.
Battery
(page 6-29)
11.
Fuse
(page 6-30)
12.
Shock absorber compression
damping adjusting knob
(page 3-11)
13.
Main switch
(page 3-1)
14.
Engine oil filter element
(page 6-9)
15.
Brake pedal
(page 3-3, 6-20)
16.
Shock absorber spring preload
adjusting nut
(page 3-10)
91
0
1
1
1
2
1
3
14
15
16

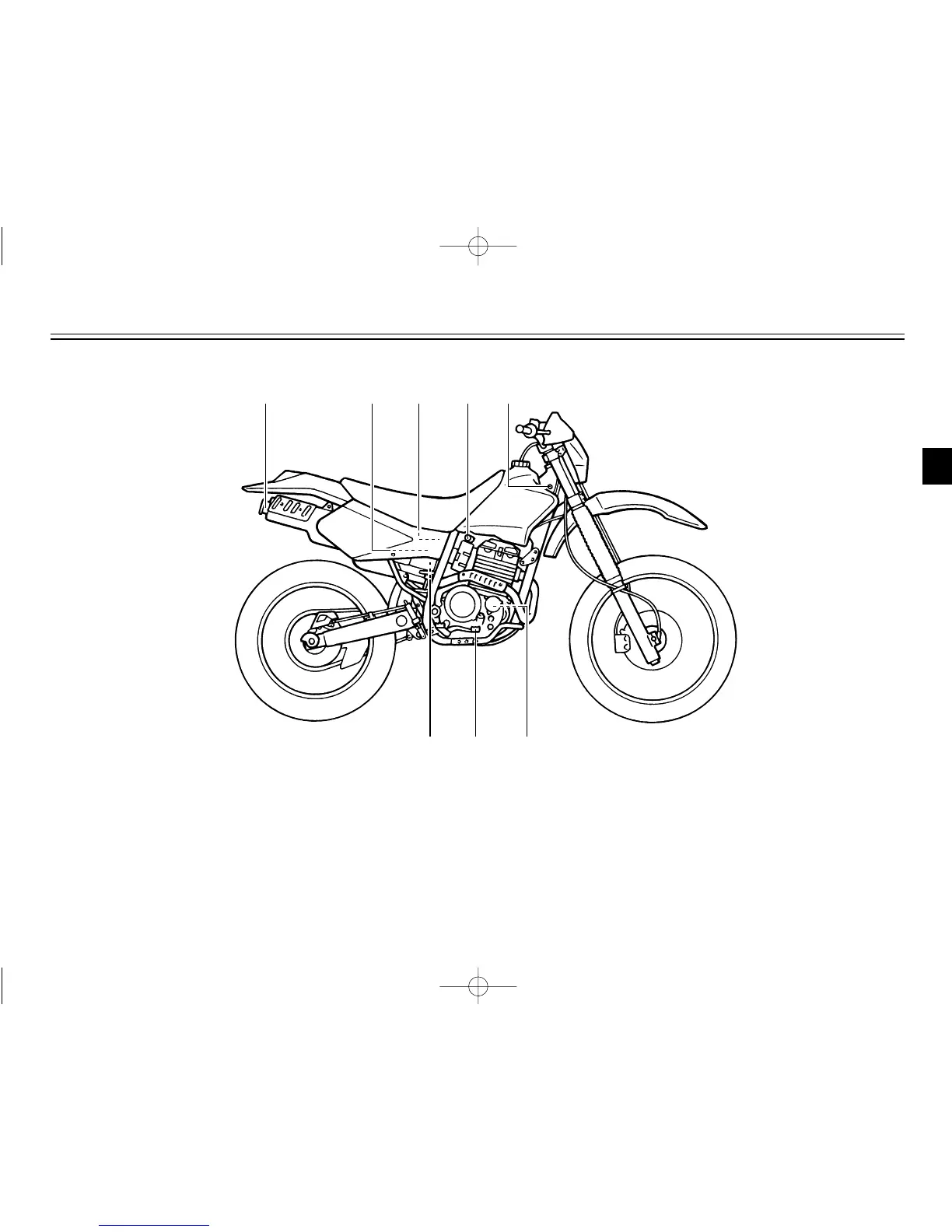

Right view
5GF-9-14 (USA) 4/23/02 2:10 PM Page 17
18
20
Table of Contents
Default Chapter
4
Important Manual Information
4
Table of Contents
7
1 Safety Information
10
Safe Riding
10
Protective Apparel
11
Modifications
12
Loading and Accessories
12
Gasoline and Exhaust Gas
14
Location of Important Labels
16
2 Description
18
Left View
18
Right View
19
Controls and Instruments
20
3 Instrument and Control Functions
21
Main Switch
21
Tripmeter
21
Handlebar Switches
21
Clutch Lever
22
Shift Pedal
22
Brake Lever
23
Brake Pedal
23
Fuel Tank Cap
23
Fuel
24
Fuel Tank Breather Hose
25
Fuel Cock
25
Starter (Choke) Knob
26
Seat
27
Adjusting the Front Fork
27
Adjusting the Shock Absorber Assembly
30
Starting Circuit Cut-Off System
32
Pre-Operation Checks
34
Pre-Operation Check List
34
5 Operation and Important Riding Points
37
Starting and Warming up a Cold Engine
37
Starting a Warm Engine
39
Shifting
39
Engine Break-In
40
Parking
41
6 Periodic Maintenance and Minor Repair
42
Owner's Tool Kit
42
Periodic Maintenance and Lubrication Chart
43
Removing and Installing the Cowling and Panels
46
Checking the Spark Plug
47
Engine Oil and Oil Filter Element
49
Cleaning the Air Filter Element
53
Cleaning the Spark Arrester
54
Adjusting the Carburetor
55
Adjusting the Throttle Cable Free Play
55
Adjusting the Valve Clearance
56
Tires
56
Spoke Wheels
58
Accessories and Replacement Parts
59
Adjusting the Clutch Lever Free Play
60
Adjusting the Brake Lever Free Play
60
Adjusting the Brake Pedal Position
61
Checking the Front and Rear Brake Pads
62
Checking the Brake Fluid Level
62
Changing the Brake Fluid
63
Drive Chain Slack
64
Lubricating the Drive Chain
65
Checking and Lubricating the Cables
66
Checking and Lubricating the Throttle Grip and Cable
67
Checking and Lubricating the Brake and Shift Pedals
67
Checking and Lubricating the Brake and Clutch Levers
67
Checking and Lubricating the Sidestand
68
Checking the Front Fork
68
Checking the Steering
69
Checking the Wheel Bearings
69
Battery
70
Replacing the Fuse
71
Replacing the Headlight Bulb
72
Replacing the Taillight Bulb
74
Supporting the Machine
74
Front Wheel
75
Rear Wheel
77
Troubleshooting
79
Troubleshooting Chart
80
Machine Care and Storage
81
Care
81
Cleaning
81
Storage
84
8 Specifications
86
Specifications
87
9 Consumer Information
90
Identification Numbers
90
Key Identification Number
90
Vehicle Identification Number
90
Model Label
91
Motorcycle Noise Regulation
92
Maintenance Record
94
Off-Road Motorcycle Limited Warranty
96
Yamaha Extended Service (Y.E.S.)
98
