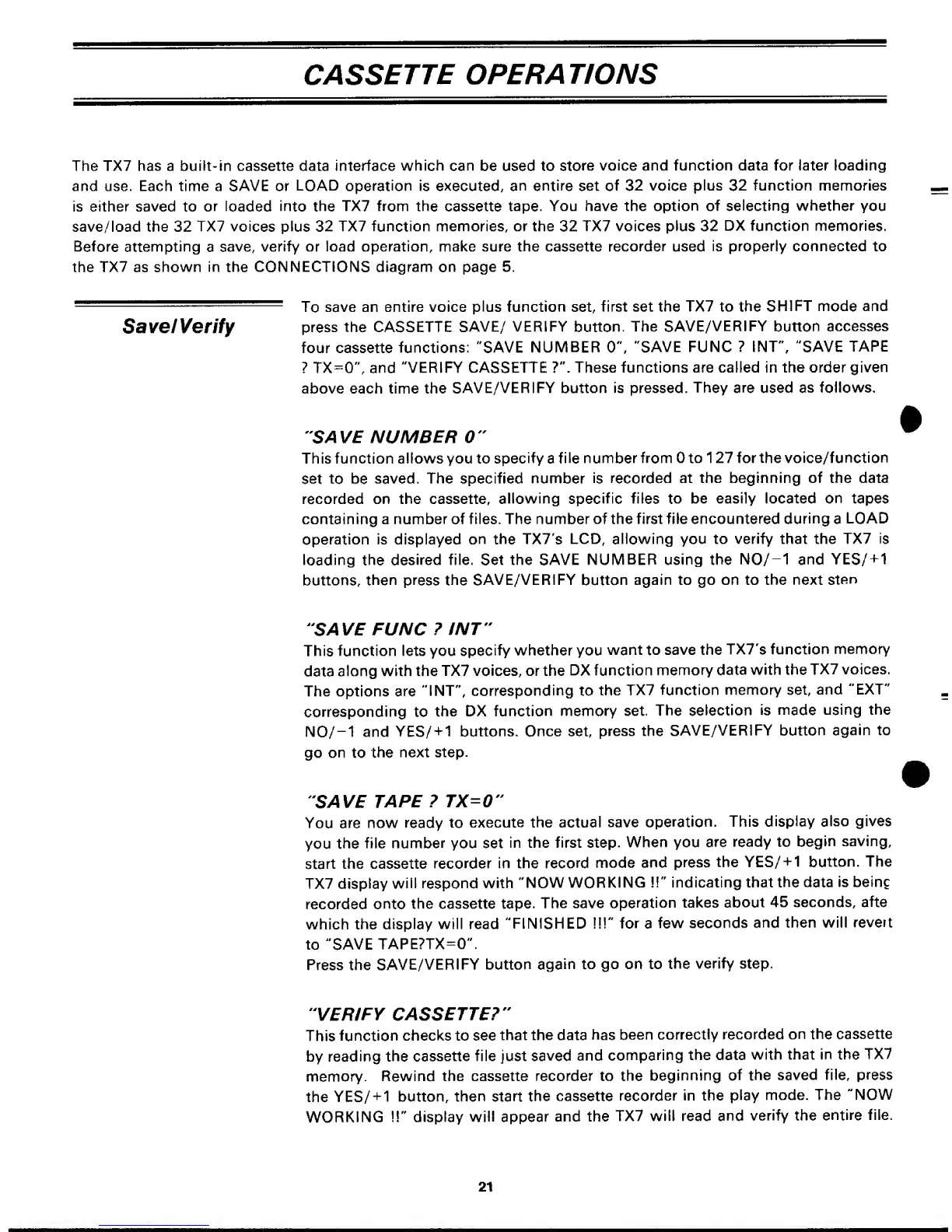

CASSETTE
OPERATIONS
The 7X7 has a built-in cassette data interface
which
can
be used to
store voice
and function data for later loading
and use. Each time a SAVE or
LOAD
operation is executed,
an entire
set
of 32
voice plus
32
function memories
is either saved to
or loaded into the
TX7 from
the
cassette
tape.
You have the option of
selecting whether
you
save/load the 32
TX7 voices plus
32 TX7 function memories, or the 32 TX7 voices plus 32
DX
function
memories.
Before attempting
a
save,
verify or load operation, make sure the cassette
recorder
used
is properly connected
to
the TX7 as
shown in the
CONNECTIONS
diagram on page
5.
—
To
save an entire voice
plus function
set,
first set the TX7 to the
SHIFT
mode
and
SaveiVerify
press
the cassette
save/ verify
button.
The
SAVE/VERIFY button
accesses
four cassette
functions: "SAVE
NUMBER
0",
"SAVE FUNC ? INT", "SAVE
TAPE
? TX-0",
and
"VERIFY CASSETTE
?".
These
functions are called in the order
given
above each time the
SAVE/VERIFY
button
is pressed.
They are
used as
follows.
"SAVE NUMBER
0"
This function allows you to
specify
a
file number
from
to
1 27 for the
voice/function
set to be
saved. The specified number
is recorded
at the beginning of the data
recorded on the cassette,
allowing
specific
files
to
be easily located
on
tapes
containing a
number
of
files. The number of the first file encountered
during
a
LOAD
operation is displayed
on the TX7's
LCD, allowing
you
to verify that the TX7
is
loading the
desired file. Set the SAVE NUMBER using the
N0/-1
and
YES/+1
buttons,
then press the
SAVE/VERIFY
button
again to go on to the
next
sten
"SAVE FUNC
? INT"
This
function lets you
specify
whether you
want
to
save the
TX7's
function
memory
data
along with the
TX7 voices, or the
DX
function
memory data
with the
TX7
voices.
The options are
"INT",
corresponding
to
the TX7
function
memory set,
and "EXT"
corresponding to
the
DX
function
memory set.
The
selection is
made
using the
N0/-1 and YES/
+
1
buttons.
Once set,
press the
SAVE/VERIFY
button
again to
go on to
the
next step.
"SAVE
TAPE
? TX=0"
You
are
now ready to
execute
the actual save
operation.
This
display
also gives
you
the
file number you set
in the first step.
When you
are
ready to
begin
saving,
start the cassette
recorder
in the
record
mode and
press
the YES/
+
1
button. The
TX7 display
will
respond
with
"NOW
WORKING
I!" indicating that
the data
is
beinc
recorded
onto
the cassette tape.
The save
operation
takes about
45
seconds,
afte
which
the display
will read
"FINISHED
!!!"
for
a
few seconds
and
then will
revert
to
"SAVETAPE?TX=0".
Press the
SAVE/VERIFY button
again to
go on to
the
verify step.
"VERIFY
CASSETTE?"
This
function
checks to see
that
the data
has
been
correctly recorded on
the
cassette
by reading
the cassette
file just
saved
and
comparing
the data
with that in the
TX7
memory.
Rewind the cassette
recorder to the
beginning
of the
saved file,
press
the YES/
+
1 button,
then start
the cassette
recorder
in the
play
mode.
The "NOW
WORKING
I!" display
will appear
and the
TX7 will read
and
verify the
entire
file.
21
