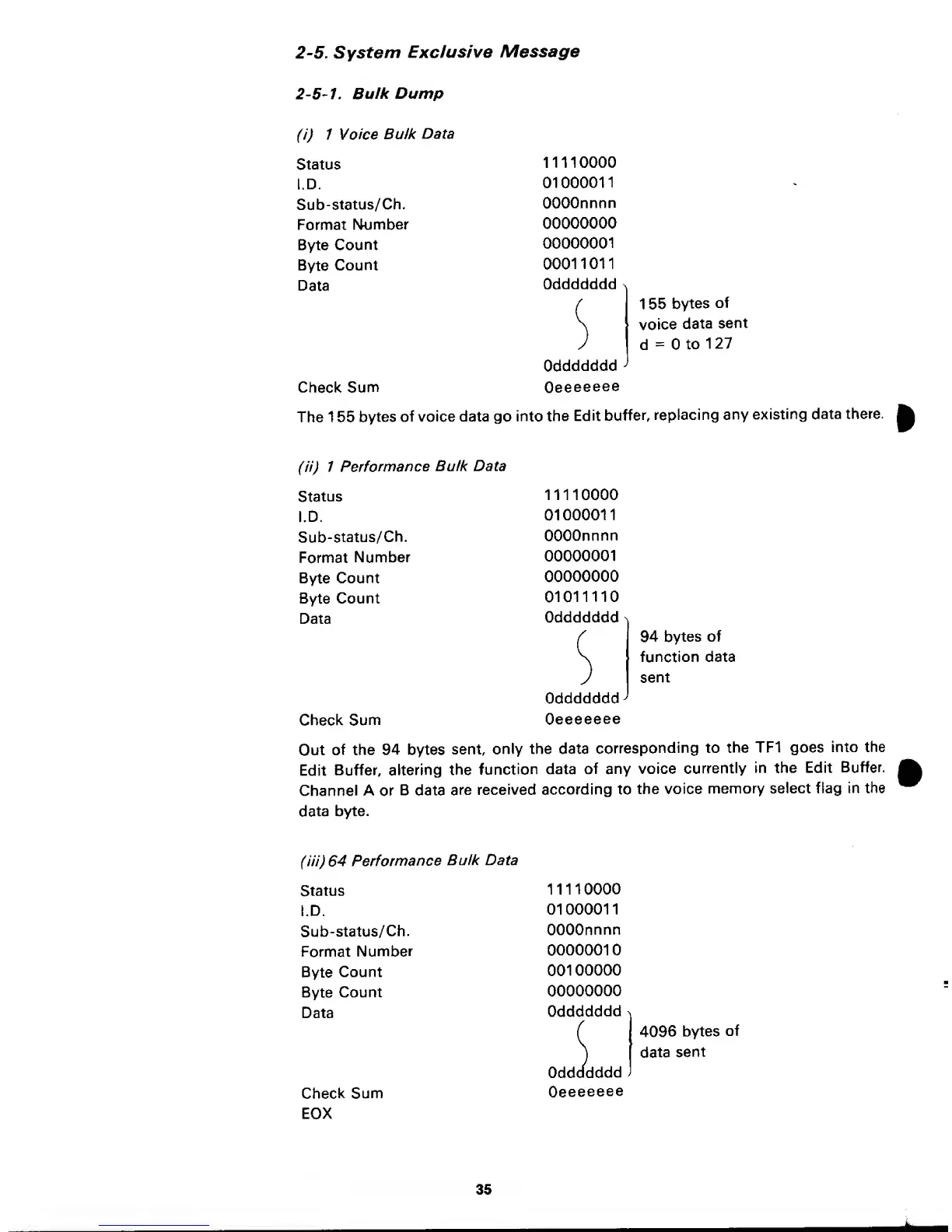

2-5.
System
Exclusive
Message
2-5-1.
Bulk
Dump
(i) 1
Voice
Bulk
Data
Status
l.D.
Sub-status/Ch.
Format
ISkimber
Byte
Count
Byte
Count
Data
Check Sum
1111 0000
01
00001
1
OOOOnnnn
00000000
00000001
00011011
Oddddddd
Oddddddd
Oeeeeeee
1
55
bytes
of
voice
data
sent
d
=
to
1 27
The 1 55
bytes of
voice data go into
the
Edit
buffer,
replacing
any
existing
data there.
(ii) 1
Performance
Bulk Data
Status
1111 0000
I.D.
01000011
Sub-status/Ch.
OOOOnnnn
Format
Number
00000001
Byte
Count
00000000
Byte Count
01011110
Data
Oddddddd
>
Oddddddd
>
Check
Sum
Oeeeeeee
94
bytes of
function data
sent
Out
of the 94 bytes
sent,
only the data
corresponding
to
the
TF1 goes
into the
Edit
Buffer,
altering
the
function
data
of any voice
currently
in the Edit
Buffer.
Channel
A
or
B data
are received
according to
the voice
memory select flag In
the
data
byte.
(Hi) 64
Performance
Bulk Data
Status
1111
0000
I.D.
01000011
Sub-status/Ch.
OOOOnnnn
Format
Number
00000010
Byte
Count
00100000
Byte Count
00000000
Data
Oddddddd
Oddddddd
Check Sum
Oeeeeeee
EOX
4096
bytes
of
data
sent
