Yamaha V150 - Basic Components; Main Components; Remote Control

11
Basic components
EMU25797

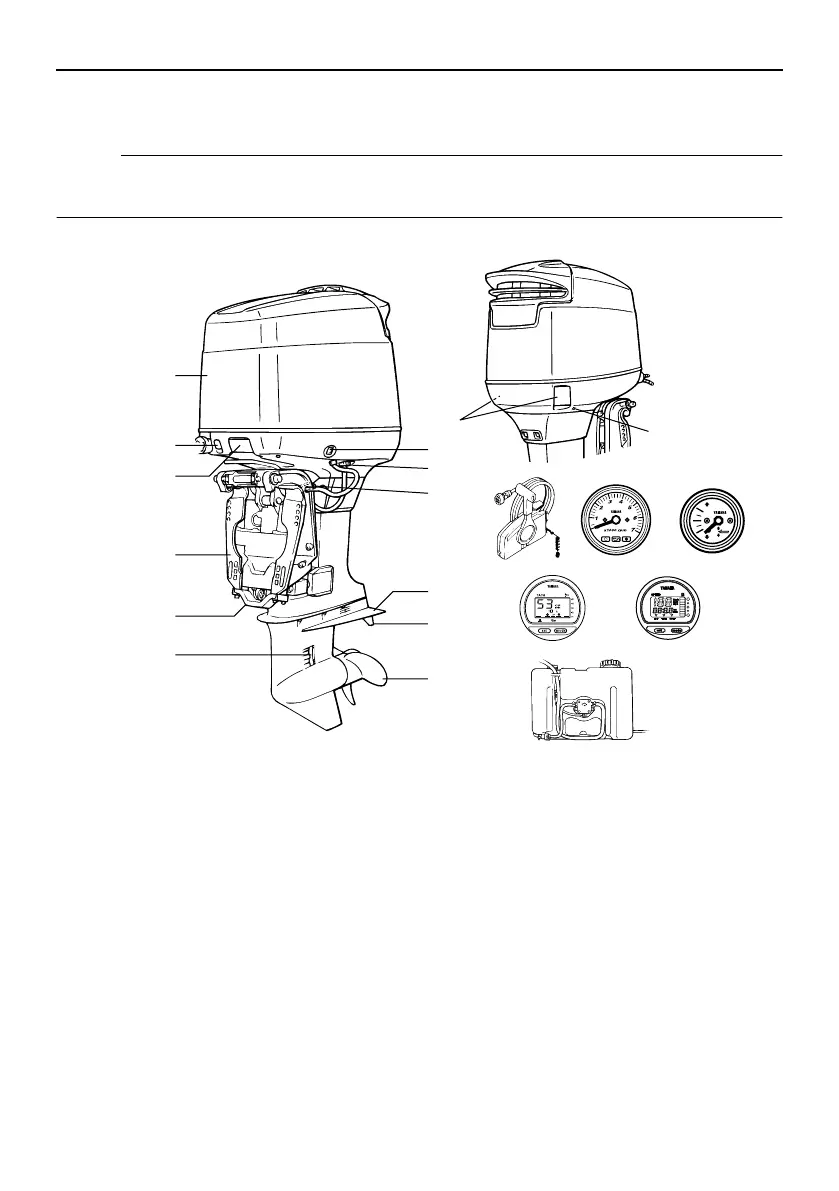

Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
V150
EMU26180
Remote control
The remote control lever actuates both the
shifter and the throttle. The electrical switch-
es are mounted on the remote control box.
15
17
16
12
11
10
9
8
7
6
5
4
3
2
1
13
3
18
19
ZMU04671
14
1. Top cowling
2. Choke knob
3. Top cowling lock lever(s)
4. Clamp bracket
5. Anode
6. Cooling water inlet
7. Propeller*
8. Trim tab
9. Anti-cavitation plate
10. Tilt support lever
11. Flushing device
12. Power trim and tilt switch
13. Cooling water pilot hole
14. Remote control box (side mount type)*
15. Tachometer*
16. Trim meter*
17. Digital tachometer*
18. Digital speedometer*
19. Remote oil tank
