6-21
1
2
3
4
5
6
7
8
9
Free play
The rear brake pedal free play
should be adjusted to 20 ~ 30 mm
at the brake pedal end. Turn the
adjusting nut on the brake rod in
direction a to increase free play or
in direction b to decrease free
play.
1. Adjusting nut
PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01199

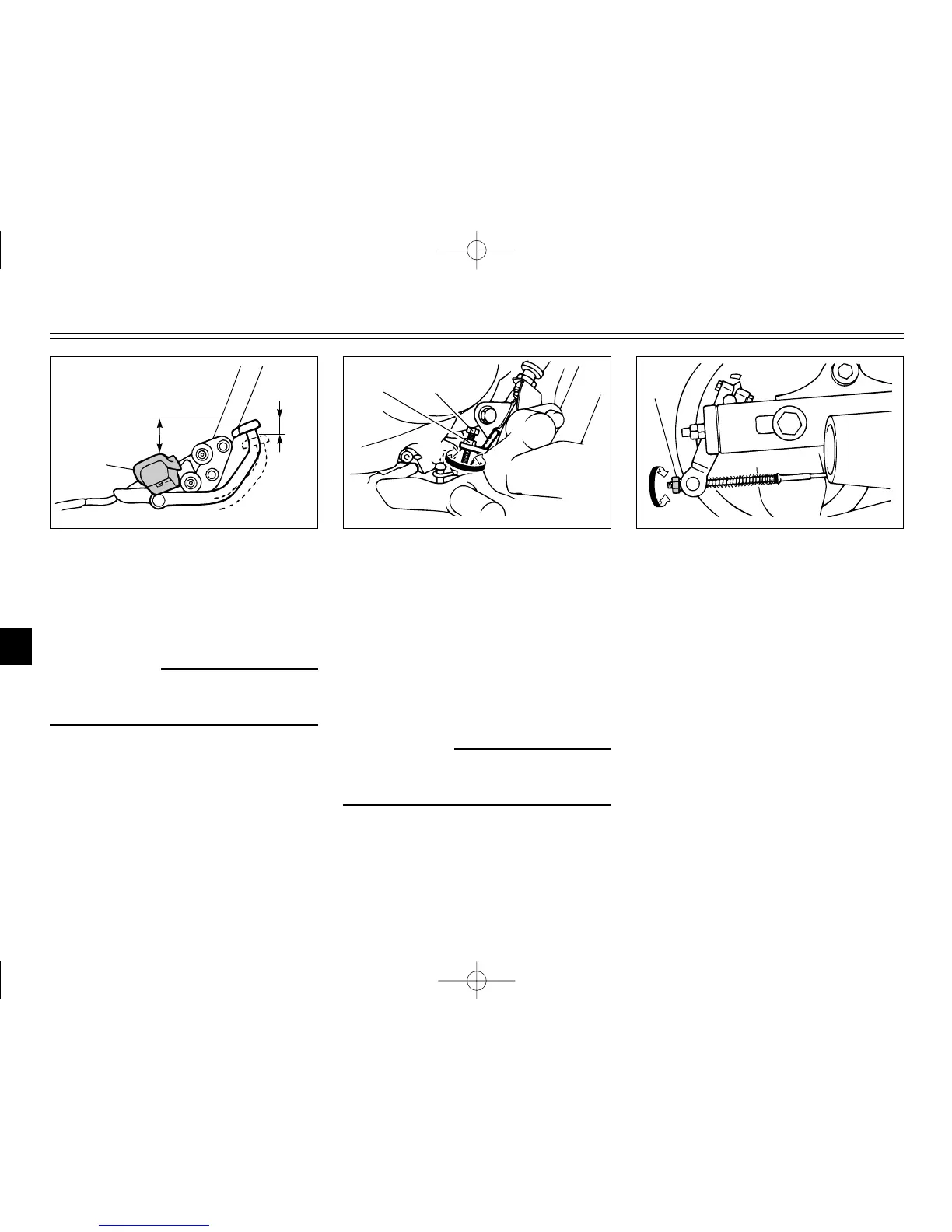

Rear brake pedal height and
free play adjustment
EW000104
w
It is advisable to have a Yamaha
dealer make this adjustment.
Pedal height
The brake pedal should be posi-
tioned so that its top end is
approximately 60 mm above the
top of the footrest.
1. Footrest
a. Pedal height: 60 mm
b. Free play
1. Loosen the locknut.
2. Turn the adjusting bolt in
direction a to raise pedal
height or in direction b to
lower pedal height.
3. Tighten the locknut.
EW000108
w
After adjusting the pedal height,
adjust brake pedal free play.
1. Locknut
2. Adjusting bolt
