6-39
1
2
3
4
5
6
7
8
9
7. Adjust the rear brake pedal
height and free play. (See page
6-21.)
EW000103
w
Check the operation of the brake
light after adjusting the rear brake.
PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01696
Rear wheel installation
1. Install the rear wheel and the
axle.
2. Install the axle nut and let the
motorcycle down.
3. Insert the brake rod into the
brake cam lever and install the
brake pedal free play adjusting
nut.
4. Install the brake torque rod
bolt and tighten to the speci-
fied tightening torque. Then
install a new cotter pin.
5. Adjust the drive chain free
play. (See page 6-25.)
6. Tighten the axle nut to the
specified tightening torque.
Specified torque:
Brake torque rod bolt:
23 Nm (2.3 m·kg)
Specified torque:
Axle nut:
105 Nm (10.5 m·kg)
4
3
5
1
2
5. Remove the rear brake pedal
free play adjusting nut and
brake rod from the brake cam
lever.
6. Loosen the locknuts and chain
adjusting nuts on each side.
7. Remove the axle nut.
8. Pull out the wheel axle and
remove the wheel assembly.

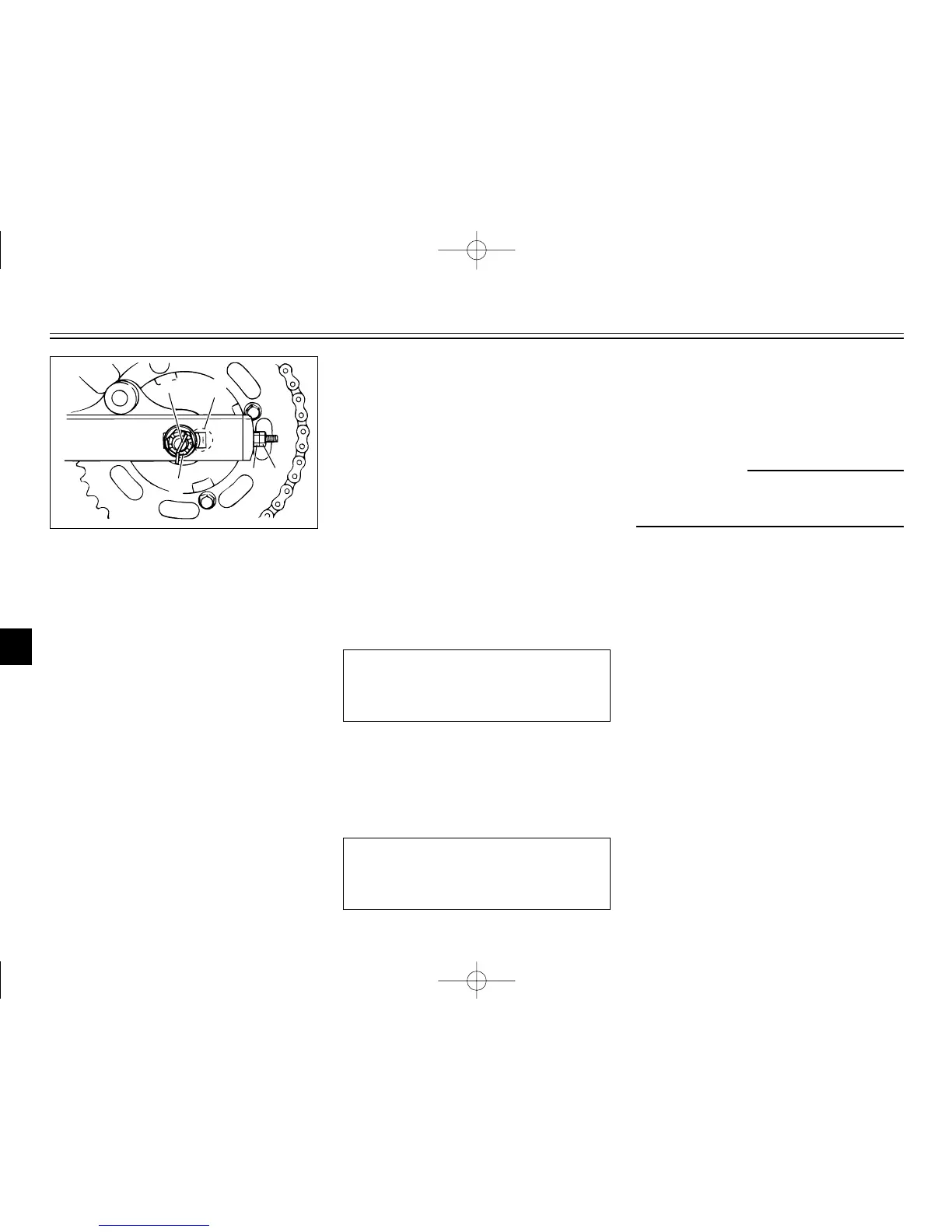

1. Cotter pin
2. Alignment marks
3. Locknut
4. Chain adjusting nut
5. Axle nut
5AJ-9-E3 (XV125S)<3.1E> 4/5/0 5:01 PM Page 70
