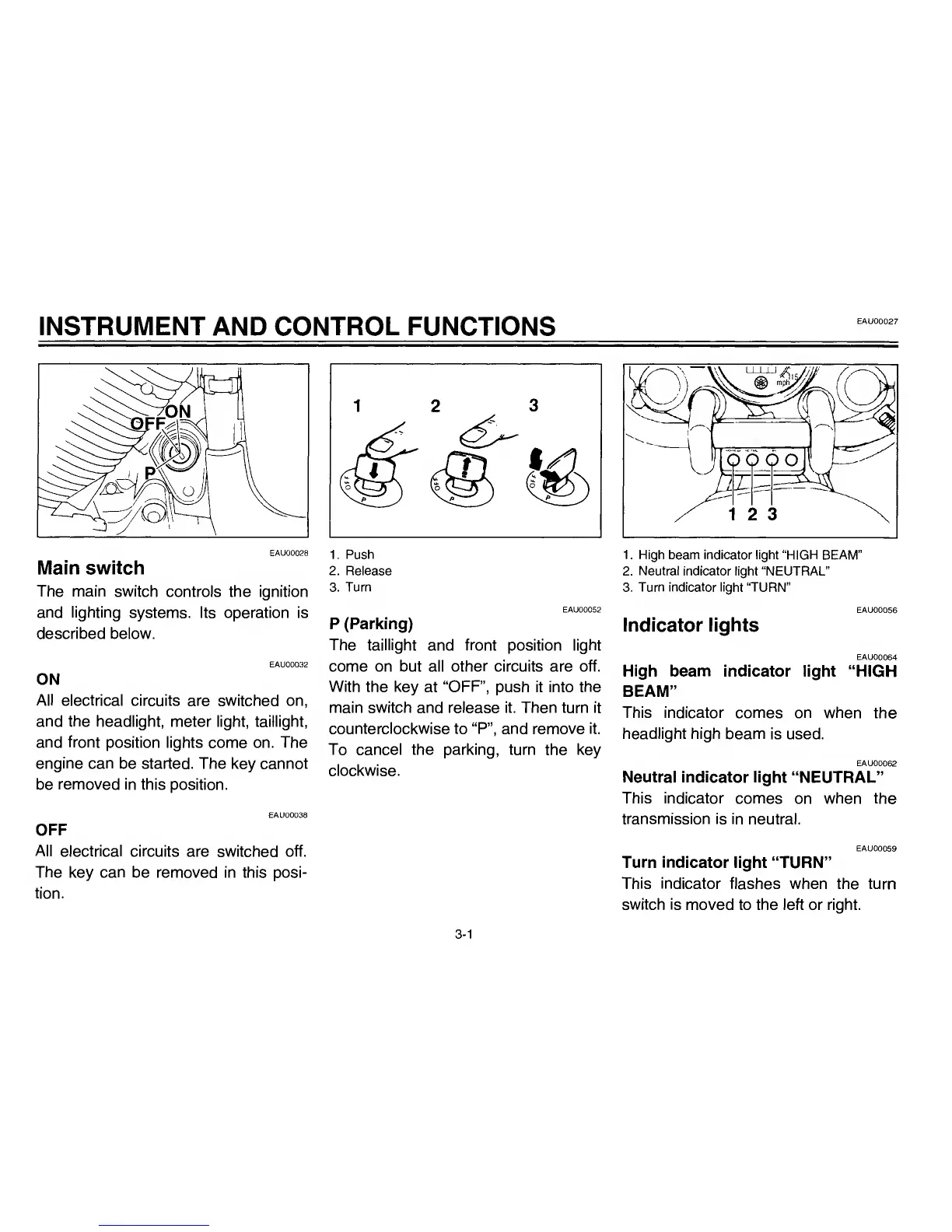

Yamaha Virago XV535M User Manual

INSTRUMENT
AND CONTROL FUNCTIONS
Main switch
The main switch
controls the
ignition
and lighting
systems. Its operation is
described below.
EAU00032
ON
All electrical
circuits are switched on,
and the
headlight, meter light, taillight,
and front
position lights come on. The
engine can
be started. The key cannot
be
removed in
this position.
EAU00038
OFF
All electrical circuits
are switched off.
The
key
can
be removed in this posi-
tion.
1. Push
2. Release
3. Turn
EAU00052
P (Parking)
The taillight
and
front
position
light
come on but all
other
circuits are off.
With
the
key
at
"OFF",
push it into
the
main switch and release it. Then turn it
counterclockwise to "P", and remove it.
To cancel the parking, turn
the
key
clockwise.
1
.
High beam indicator light "HIGH BEAM"
2.
Neutral
indicator light "NEUTRAL"
3. Turn indicator light "TURN"
EAU00056
Indicator lights
EAU00064
High beam
indicator light "HIGH
BEAM"
This indicator comes on when
the
headlight high beam
is used.
EAU00062
Neutral indicator light
"NEUTRAL"
This indicator comes
on
when
the
transmission is in
neutral.
EAU00059
Turn indicator
light "TURN"
This indicator
flashes when the turn
switch is
moved to the left or right.
3-1

Yamaha Virago XV535M Specifications

General

Displacement	535 cc
Compression Ratio	9.0:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	100/90-19
Rear Tire	140/90-15
Length	2, 230 mm
Fuel Capacity	12 liters
Engine Type	V-twin, 4-stroke
Fuel System	Mikuni BS34 carburetors
Rear Suspension	Dual shock
Bore x Stroke	76.0 x 59.0 mm
Ignition	Transistorized
