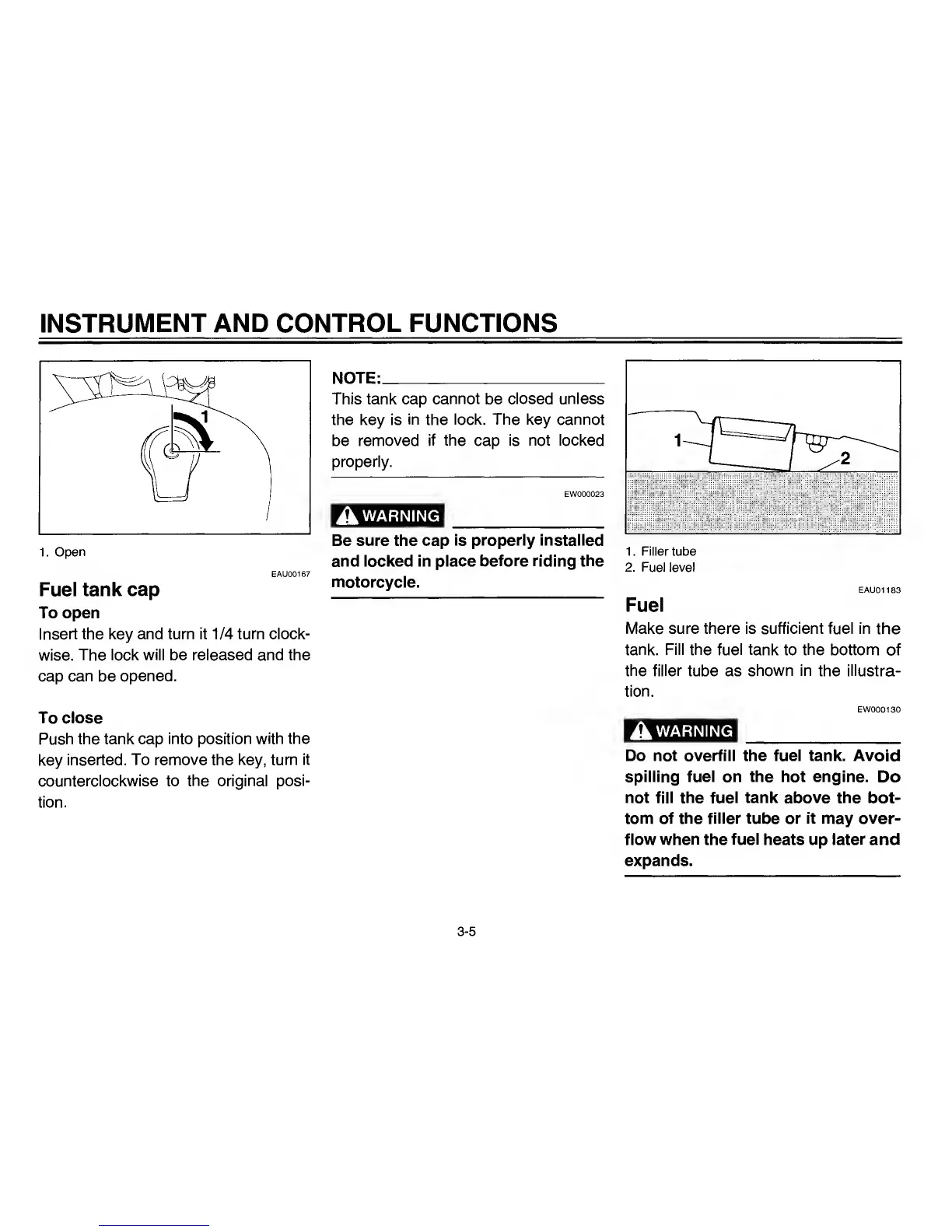

Yamaha Virago XV535M User Manual

INSTRUMENT
AND CONTROL FUNCTIONS
1.
Open
EAU00167
Fuel tank cap
To open
Insert the key and turn it 1/4 turn clock-
wise.
The lock will be released and the
cap
can
be
opened.
To close
Push the tank cap
into position with the
key
inserted. To
remove
the
key, turn it
counterclockwise to the
original posi-
tion.
NOTE:
This tank cap
cannot
be
closed unless
the key is
in
the
lock. The key cannot
be
removed if the
cap
is not locked
properly.
A
WARNING
Be sure the cap
is properly installed
and locked in place
before riding the
motorcycle.
1. Filler tube
2. Fuel level
EAU01183
Fuel
Make sure there is sufficient fuel in
the
tank. Fill the fuel tank
to
the
bottom of
the filler
tube as
shown in
the
illustra-
tion.
AWARNING
Do not overfill the fuel tank. Avoid
spilling fuel on the hot engine.
Do
not fill the fuel tank above the
bot-
tom of
the filler tube or it
may
over-
flow
when
the
fuel
heats up
later
and
expands.
3-5

Yamaha Virago XV535M Specifications

General

Displacement	535 cc
Compression Ratio	9.0:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	100/90-19
Rear Tire	140/90-15
Length	2, 230 mm
Fuel Capacity	12 liters
Engine Type	V-twin, 4-stroke
Fuel System	Mikuni BS34 carburetors
Rear Suspension	Dual shock
Bore x Stroke	76.0 x 59.0 mm
Ignition	Transistorized
