PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
7. Refill with the specified amount of
the recommended final transmis-
sion oil. WARNING! Make sure
that no foreign material enters
the final transmission case.
Make sure that no oil gets on the
tire or wheel.
[EWA11311]
8. Install the final transmission oil fill-
er cap and its new O-ring, and then
tighten the oil filler cap.
9. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU45492
Air filter and V-belt case air fil-
ter elements
The air filter element should be re-
placed and the V-belt case air filter ele-
ment should be cleaned at the intervals
specified in the periodic maintenance
and lubrication chart. Service the air fil-
ter elements more frequently if you are
riding in unusually wet or dusty areas.
The air filter check hoses must be fre-
quently checked and cleaned if neces-
sary.
Replacing the air filter element
1. Place the scooter on the center-
stand.
2. Remove the air filter case cover by
removing the screws.
3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
case. The engine should never
Tightening torque:
Final transmission oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.13 L (0.14 US qt, 0.11 Imp.qt)

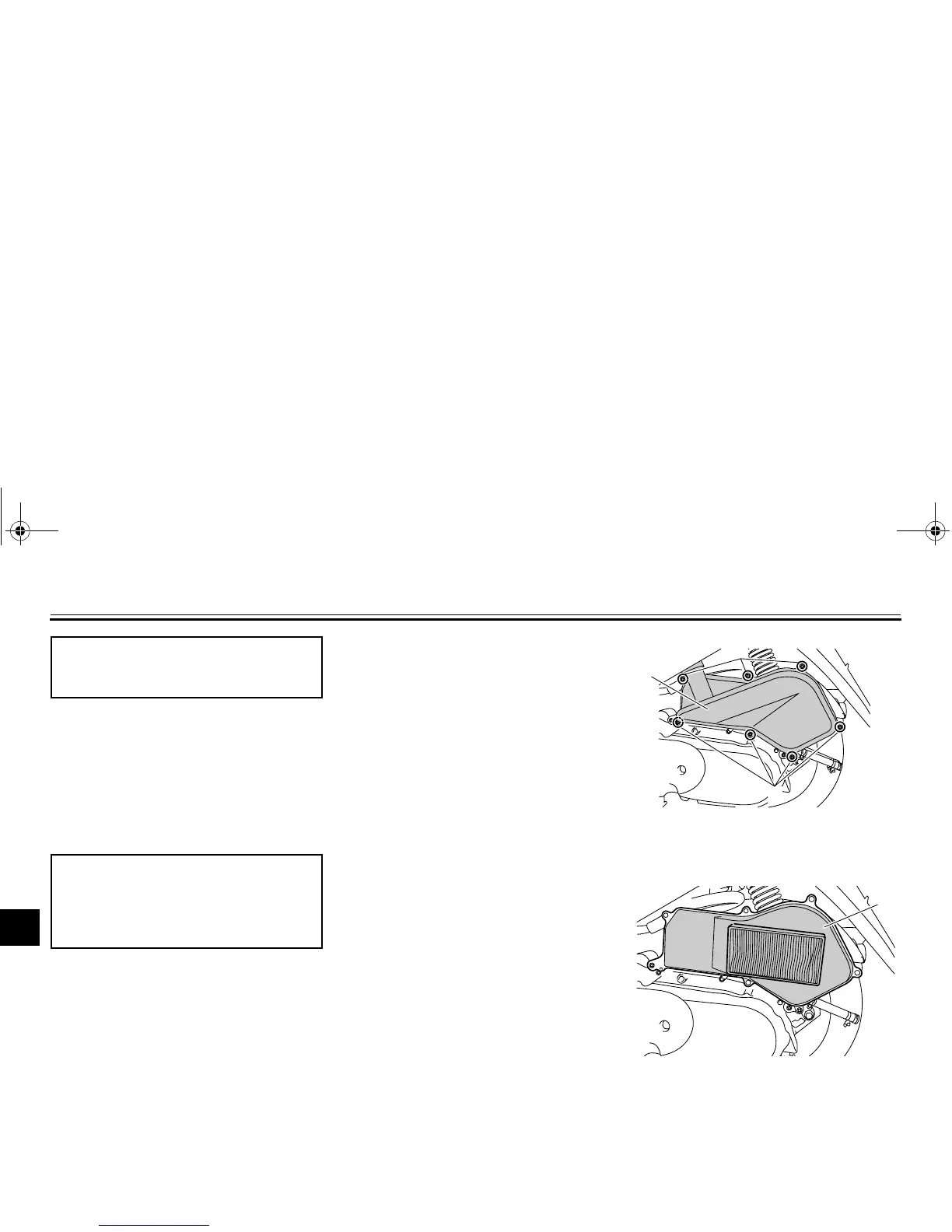

1. Air filter case cover
2. Screw
1. Air filter element
2
1
2
1
U4P7E2E0.book Page 12 Thursday, August 20, 2009 9:44 AM
