PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
EAUT2023
Replacing the fuse
The fuse holder is located beside the
battery. Remove panel B to access the
fuse. (See page 6-6.)
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131] NOTICE:
After removing and installing
the main fuse, be sure to turn
the main switch from “ON” to
“OFF” three times in 3 seconds
intervals to initialize the idle
speed control system.
[ECAT1062]
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU45503
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
NOTICE
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
1. Place the vehicle on the center-
stand.

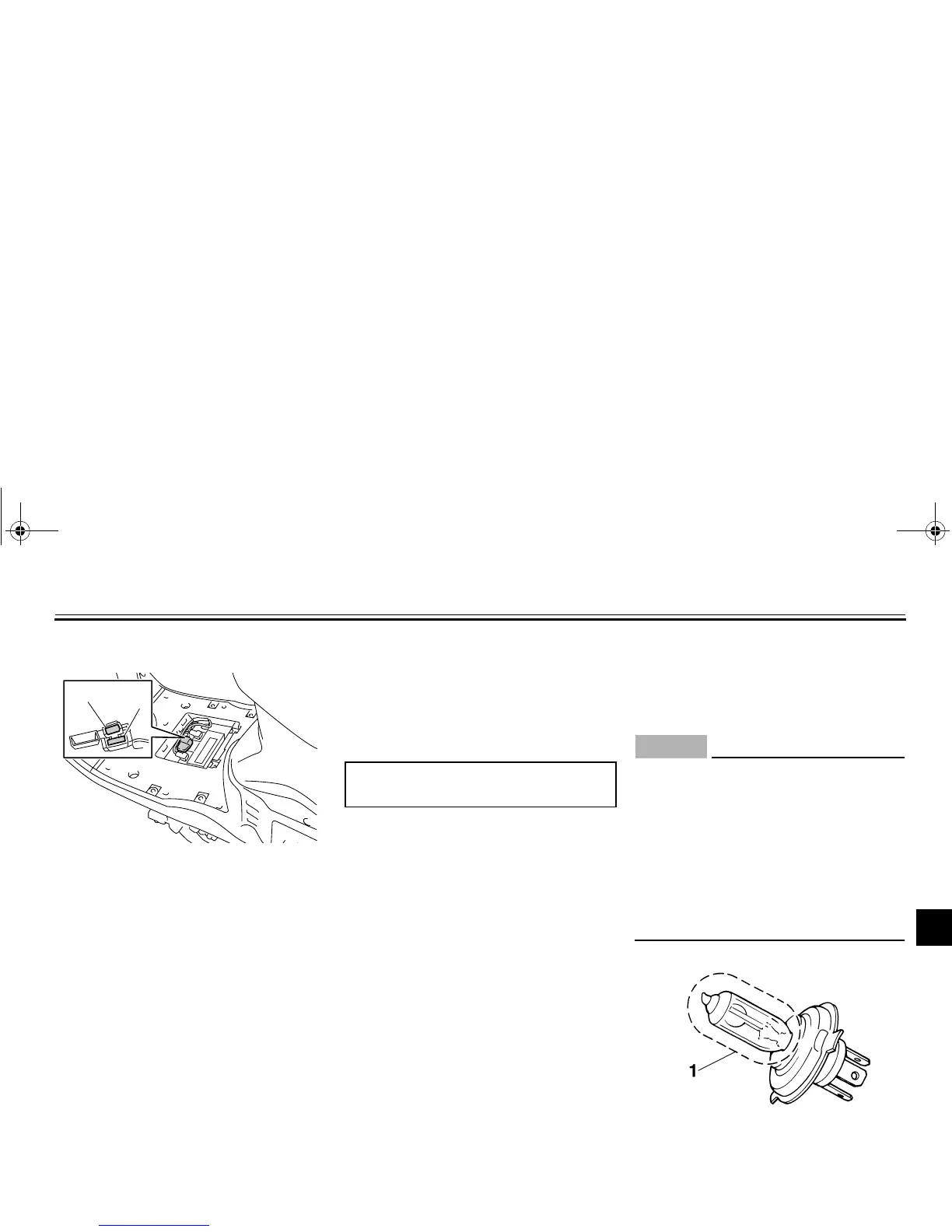

1. Fuse
2. Spare fuse
1
2
Specified fuse:
15.0 A
1. Do not touch the glass part of the bulb.
