Yamaha WaveRunner FX SHO Service Manual

5-101
E
POWR

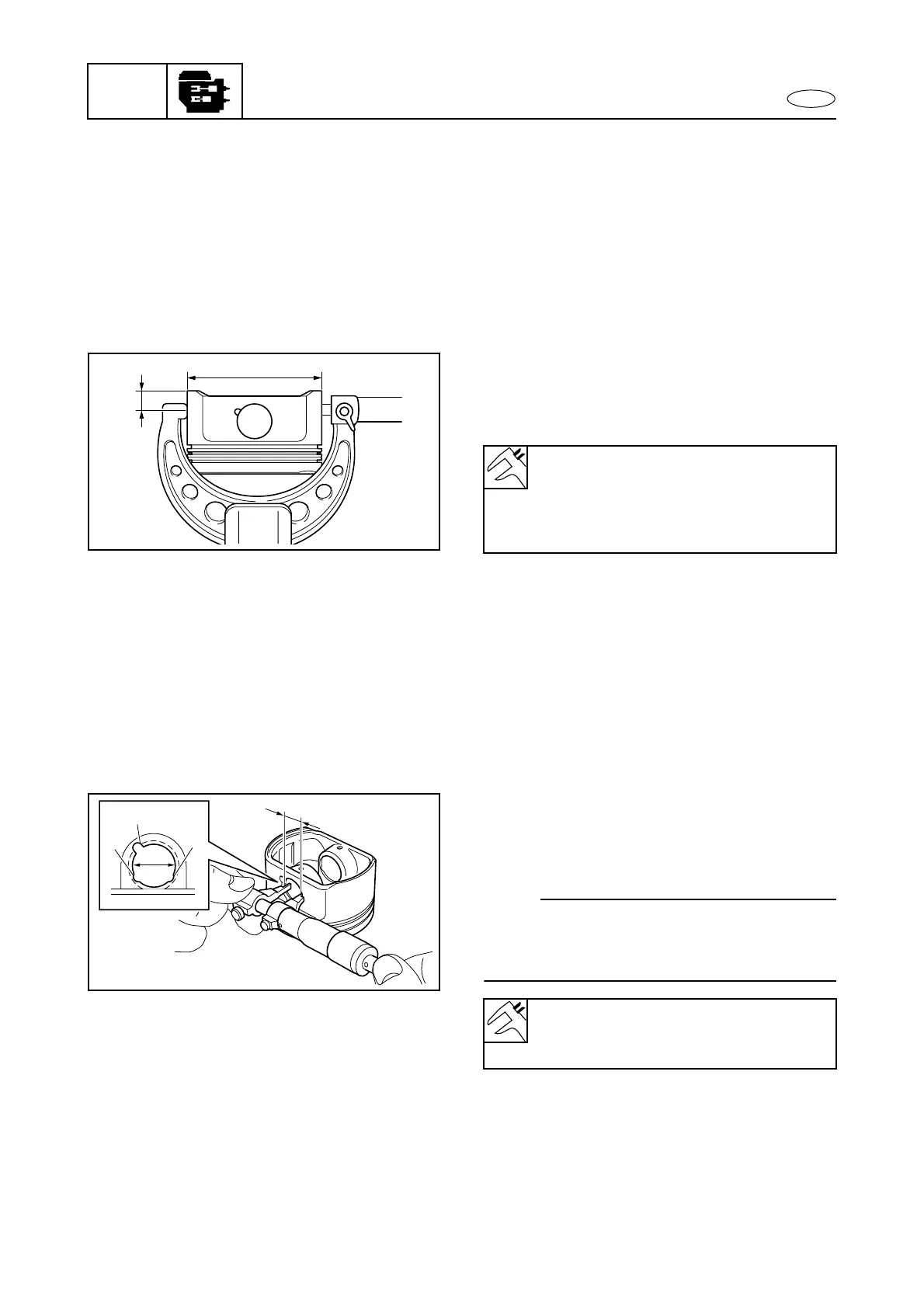

Piston check
1. Check:
• Piston wall
Vertical scratches → Replace the piston
and piston rings as a set.
2. Measure:
• Piston outside diameter a
Out of specification → Replace the pis-
ton.
Piston outside diameter a:
85.915–85.930 mm
(3.3825–3.3831 in)
Measuring point b:
10.0 mm (0.39 in)
ab
3. Measure:
• Piston pin boss bore diameter a
Out of specification → Replace the pis-
ton.
NOTE:
When measuring the piston pin boss bore, do
not measure it at the oil grooves b or ring
groove c.
Piston pin boss bore diameter a:
22.004–22.015 mm
(0.8663–0.8667 in)
c
b
b
a
Crankcase, connecting rod, and piston

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
