E
ELEC
– +
7-49
2. Check the engine stop switch continuity.
Engine stop switch continuity:
Clip 1
Engine stop
switch 2
White (W) –
Black (B)
Installed È
Free No continuity
Pushed Continuity
Removed
É
Free Continuity
Pushed Continuity

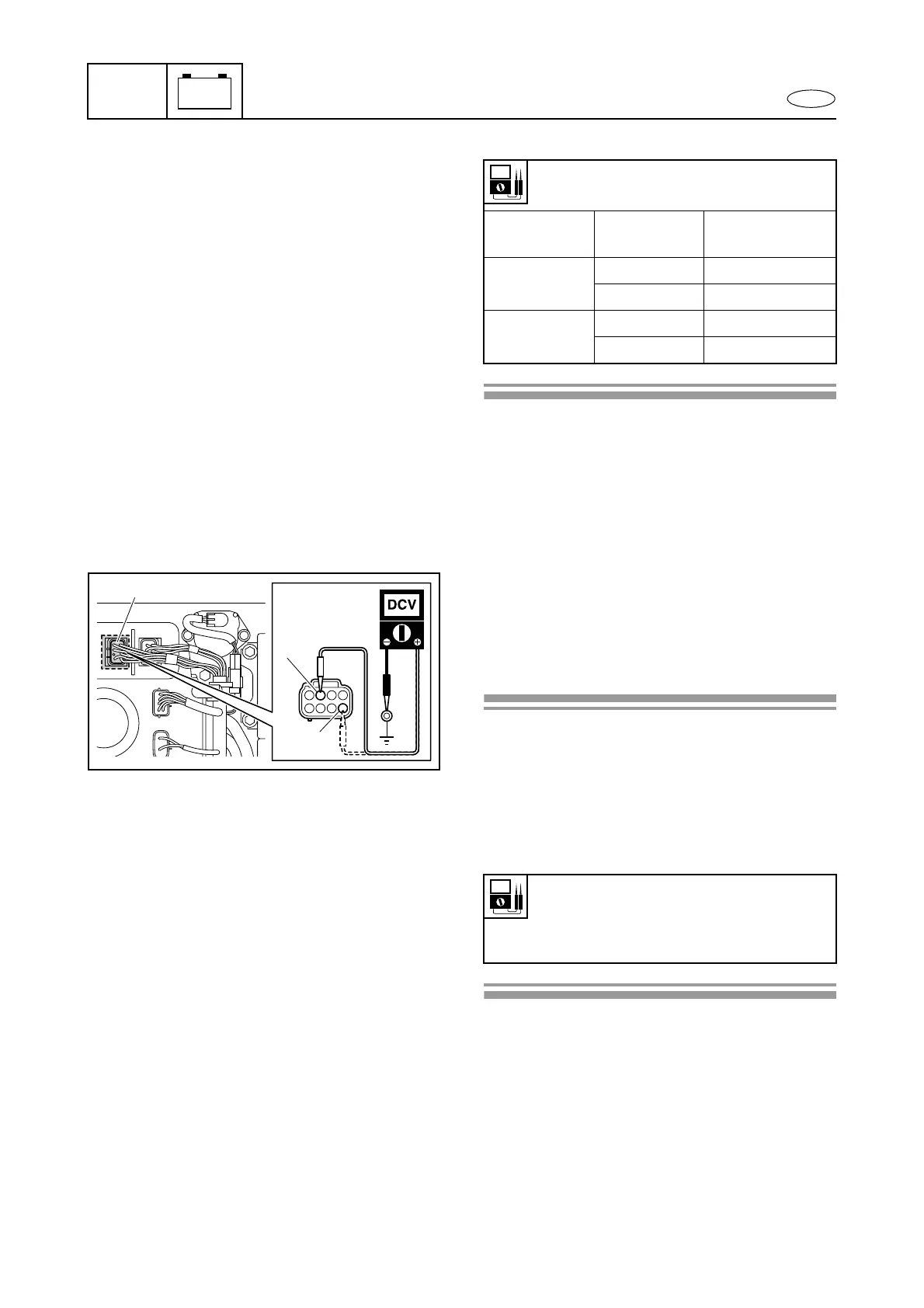

Main and fuel pump relay
1. Measure:
• Main and fuel pump relay input voltage
Out of specification → Check the wiring
harness.
Measurement steps:
1. Disconnect the main and fuel pump relay
coupler 1.
2. Measure the input voltage between the
main and fuel pump relay coupler termi-
nals 2 or 3 (wring harness end) and
ground.
Main and fuel pump relay input
voltage:
Red (R) – Ground
12 V (battery voltage)
1
R
R
2
3
Starting system

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
