Yamaha WR125R 2009 Service Manual

FUEL TANK
7-1
EAS26620

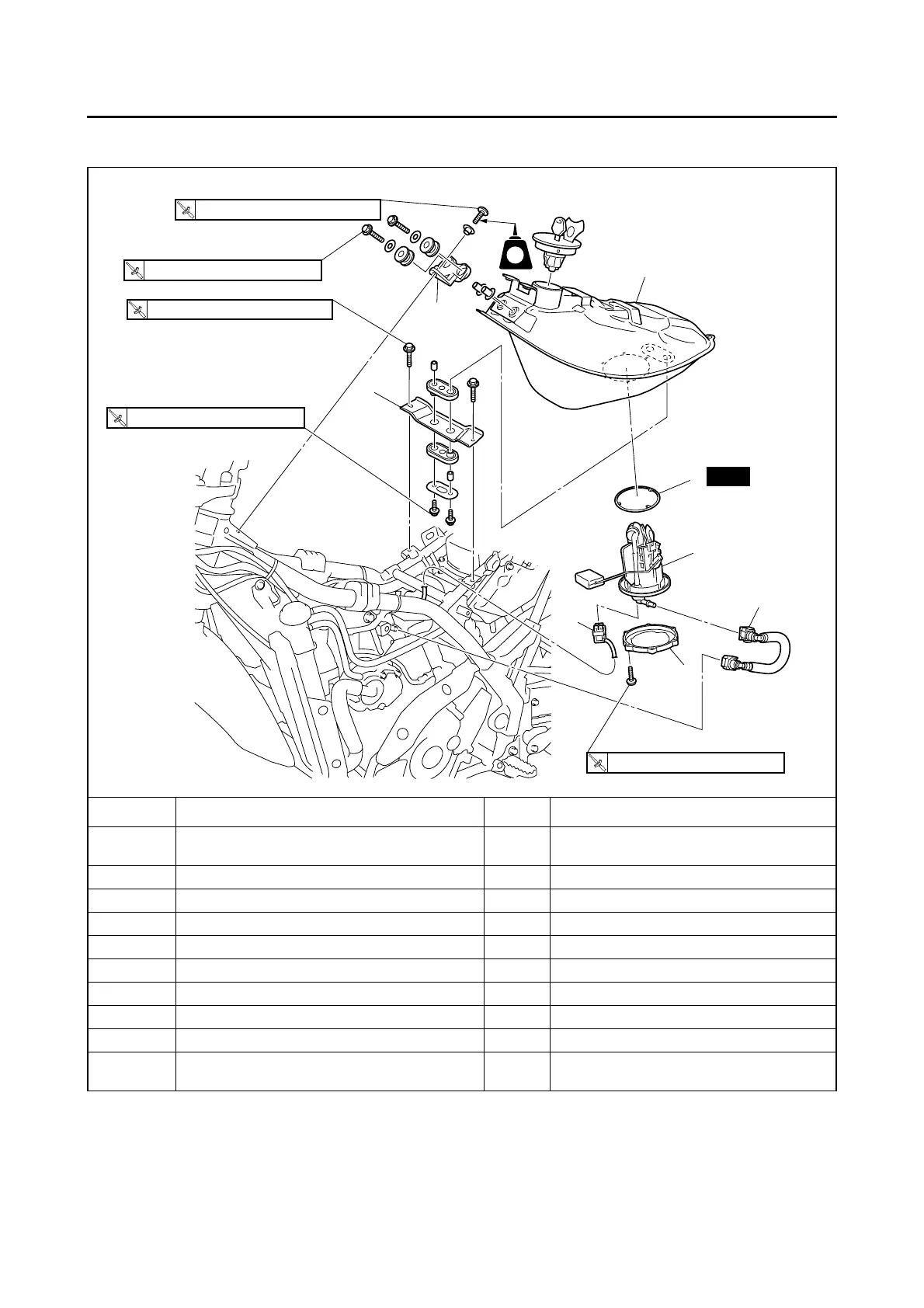

FUEL TANK
Removing the fuel tank
Order Job/Parts to remove Q’ty Remarks
Fuel tank cover assembly
Refer to “GENERAL CHASSIS” on page
4-1.
1 Fuel pump coupler 1 Disconnect.
2 Fuel hose 1
3Fuel tank 1
4 Fuel tank rear bracket 1
5 Fuel tank front bracket 1
6 Fuel pump bracket 1
7 Fuel pump 1
8 Fuel pump gasket 1
For installation, reverse the removal proce-
dure.
2
6
(6)
7
8
4
3
5
1
New
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
4 Nm (0.4 m
•
kgf, 2.9 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
LT

Yamaha WR125R 2009 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, SOHC, 4-valve
Displacement	124.7cc
Bore x Stroke	52.0 mm x 58.6 mm
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Final Drive	Chain
Front Brake	Hydraulic single disc
Rear Brake	Hydraulic single disc
Seat Height	930 mm
Lubrication System	Wet sump
Rear Brake Diameter	220 mm
Overall Length	2, 180 mm
Overall Width	835 mm
Wheel Base	1, 430 mm
Transmission	6-speed
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	80/90-21
Fuel Capacity	8.5 liters
Maximum Power	11.0 kW (15.0 PS) @ 9, 000 rpm
Maximum Torque	12.2 Nm (1.2 kg-m) @ 8, 000 rpm
Transmission System	Constant mesh
Frame	Steel
Oil Tank Capacity	1.15 litres
