ENGINE
3-10
8. Install:
• Spark plug
9. Connect:
• Spark plug cap
EAS28920

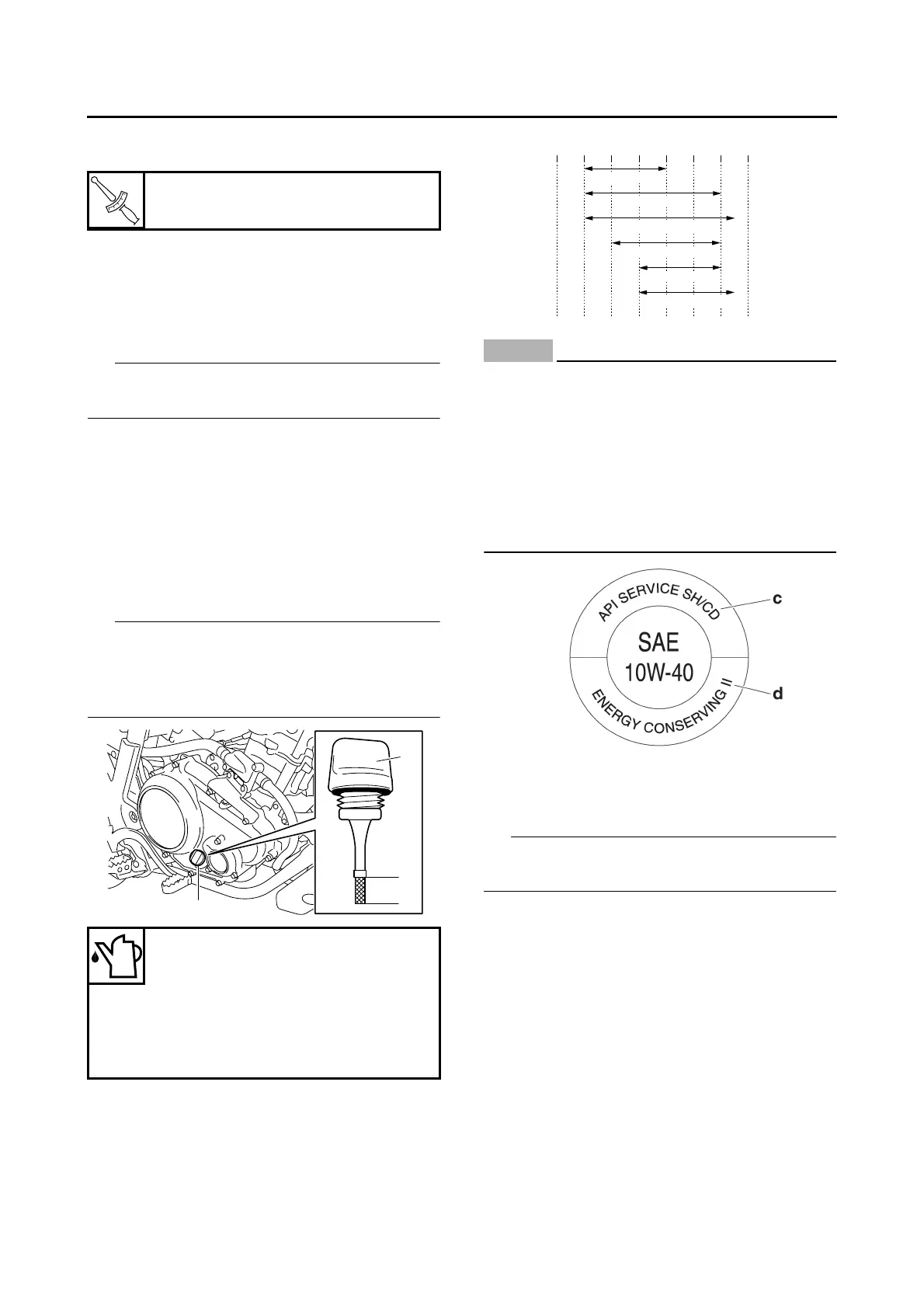

CHECKING THE ENGINE OIL LEVEL
1. Stand the vehicle on a level surface.
IP
• Place the vehicle on a suitable stand.
• Make sure the vehicle is upright.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Check:
• Engine oil level
The engine oil level should be between the
minimum level mark “a” and maximum level
mark “b”.
Below the minimum level mark → Add the
recommended engine oil to the proper level.
IP
• Before checking the engine oil level, wait a few
minutes until the oil has settled.
• Do not screw the engine oil filler cap (dipstick)
“1” in when checking the oil level.
NOTICE
ECA22B1020
• Engine oil also lubricates the clutch and the
wrong oil types or additives could cause
clutch slippage. Therefore, do not add any
chemical additives or use engine oils with a
grade of “CD” “c” or higher and do not use
oils labeled “ENERGY CONSERVING II”
“d”.
• Do not allow foreign materials to enter the
crankcase.
4. Start the engine, warm it up for several min-
utes, and then turn it off.
5. Check the engine oil level again.
IP
Before checking the engine oil level, wait a few
minutes until the oil has settled.
EAS20810
CHANGING THE ENGINE OIL
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place a container under the engine oil drain
plug.
3. Remove:
• Engine oil filler cap (dipstick) “1”
• Engine oil drain plug “2”
• O-ring “3”
• Spring “4”
• Engine oil strainer “5”
T
R
.
.
Spark plug
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
Type
SAE 10W-30, SAE 10W-40, SAE
15W-40, SAE 20W-40 or SAE
20W-50
Recommended engine oil grade
API service SG type or higher,
JASO standard MA
1
1
b
a
-20 -10 0
10
20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40
SAE 20W-40
SAE 20W-50
SAE 10W-40
SAE 10W-50
