5 - 46
CHAS
EC560000
STEERING
Extent of removal: 1 Under bracket removal 2 Bearing removal
Extent of removal Order Part name Q’ty Remarks

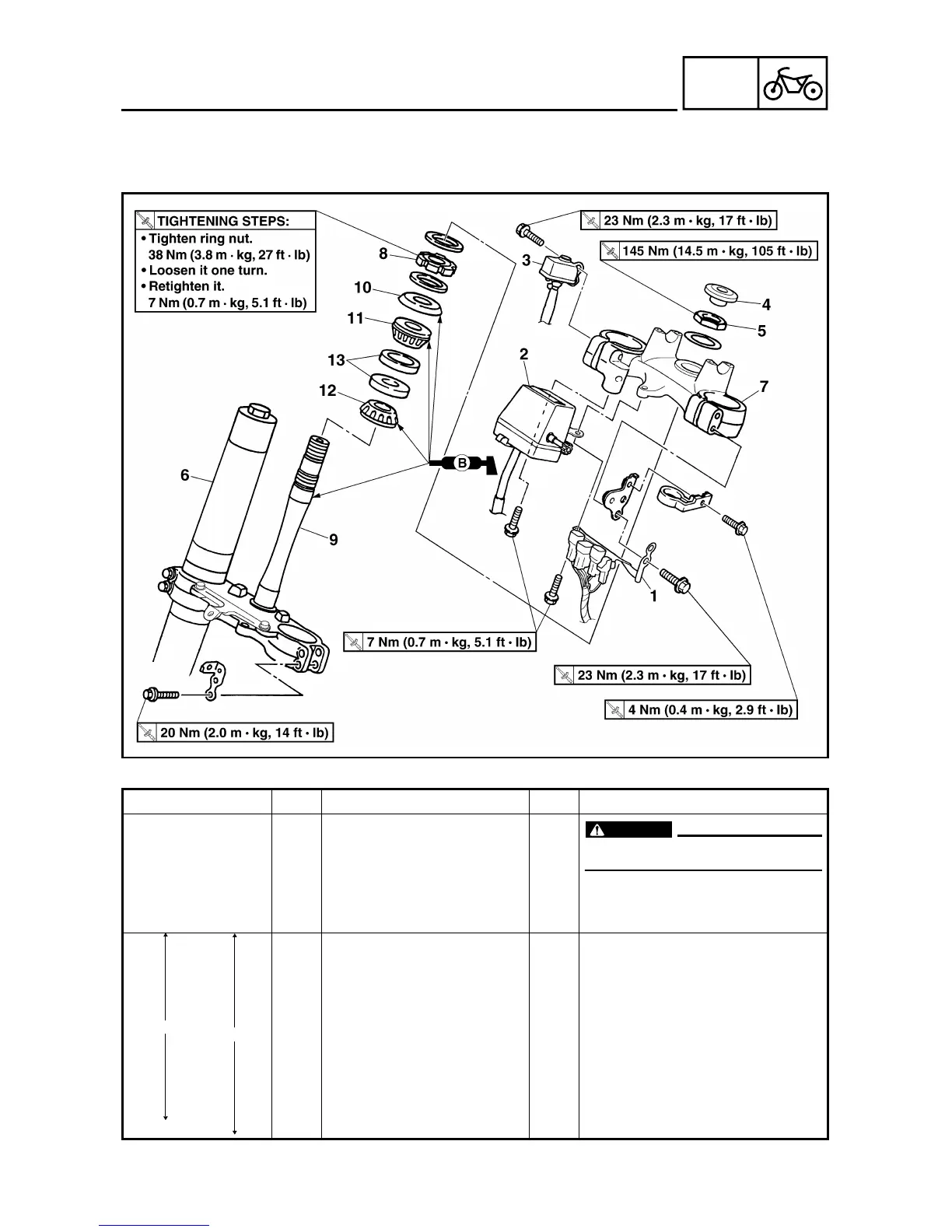

STEERING REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Refer to “HANDLEBAR” section.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Headlight
Handlebar
Hose guide
Front fender
1 Coupler bracket 1
2 Trip meter 1
3 Main switch 1 Disconnect the main switch lead.
4 Steering shaft cap 1
5 Steering shaft nut 1
6 Front fork 2 Refer to “FRONT FORK” section.
7 Handle crown 1
8 Ring nut 1 Use special tool.
Refer to “REMOVAL POINTS”.
9 Under bracket 1
10 Ball race cover 1
2
1
STEERING
To Next Page
