Yamaha XC125 User Manual

]_._1

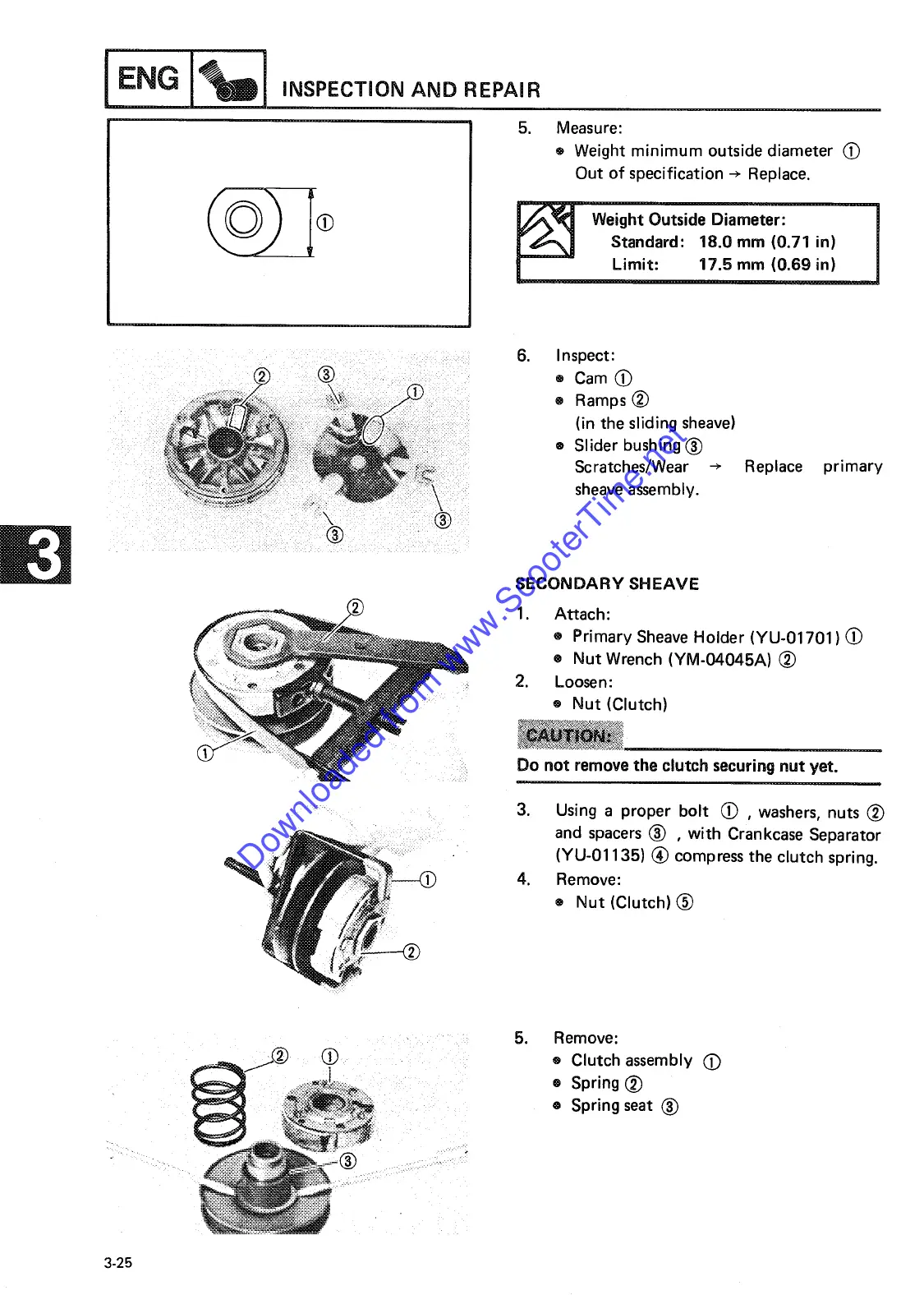

5. Measure:
e Weight minimum outside diameter (_)
Out of specification -_ Replace.
e,tout.Oiaeter,
6. Inspect:
@
Cam
Q
.................................. ® Ramps (_
_:ii _ :_:i_...... _-i_..... .....
i:i:i: fill;I (in the sliding sheave)
i!:i::_:ill: iii., e Slider bushing (_)
_i!ii_ Scratches/Wear-*sheaveassembly. Replace primary
SECONDARY SHEAVE
1. Attach:
e Primary Sheave Holder (YU-01701) (_
® Nut Wrench (YM-04045A)
:_ 2. Loosen:
Nut (Clutch)
Do not remove the clutch securing nut yet.
3. Using a proper bolt (_ , washers, nuts (_
" : , , , and spacers (_ , with Crankcase Separator
(YU-01135) (_) compress the clutch spring.
4. Remove:
• Nut (Clutch)(_
• 5. Remove:
® Clutch assembly
® Spring (_)
t • e Spring seat (_)
" _ . •
3-25
Downloaded from www.ScooterTime.net

Yamaha XC125 Specifications

General

Displacement	125cc
Bore x Stroke	52.4 mm x 57.9 mm
Fuel System	Fuel Injection
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Seat Height	780 mm
Engine Type	4-stroke, SOHC, 2-valve
Starter System	Electric
Transmission	V-Belt Automatic
Front Brake	Single disc
Rear Brake	Drum
Engine	Single cylinder, 4-stroke, air-cooled, SOHC
