Seats (XVS1100)
Passenger seat

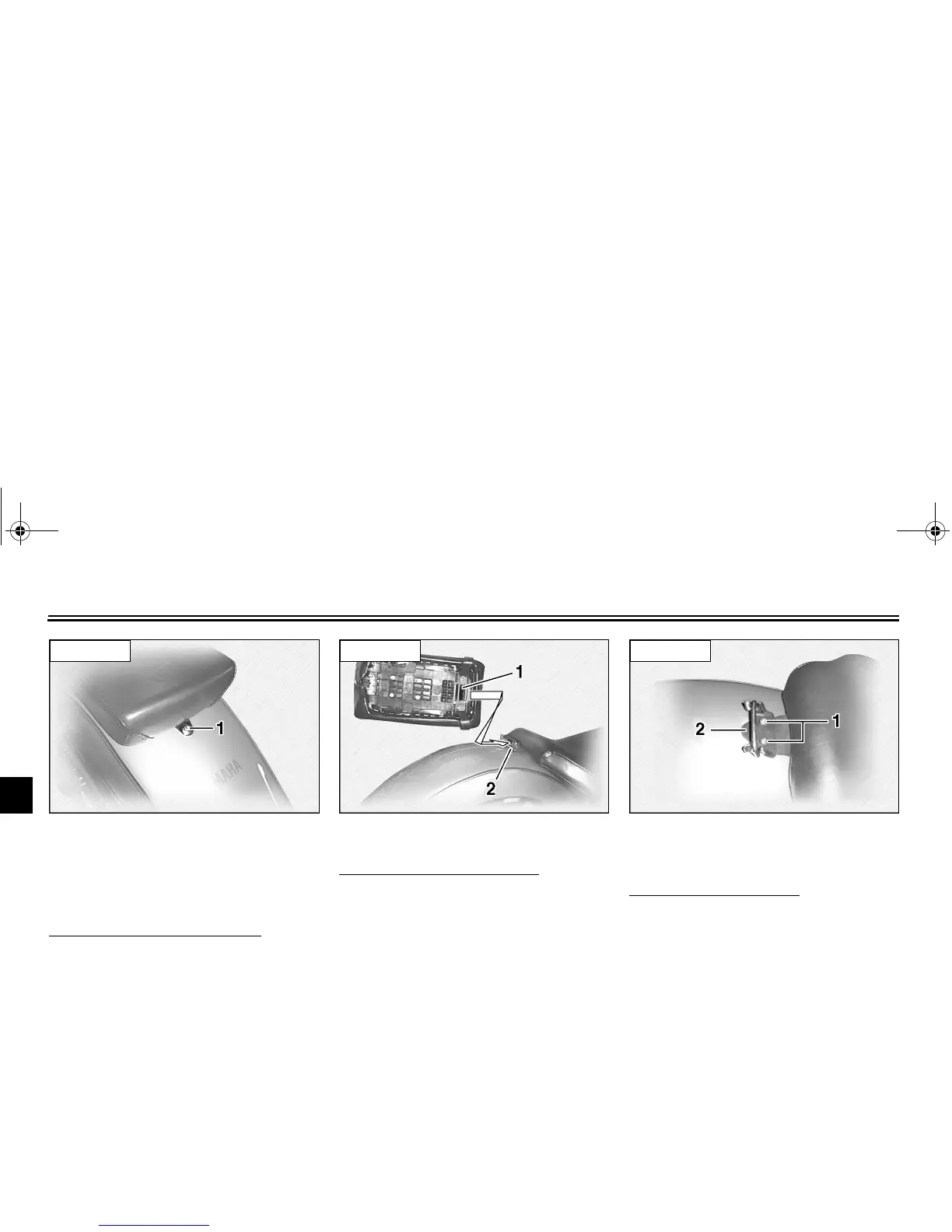

To remove the passenger seat
Remove the nut, and then pull the pas-
senger seat up.
To install the passenger seat
Insert the projection on the front of the
passenger seat into the seat holder as
shown, place the seat in the original
position, and then install the nut.
Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the bolts and bracket,
and then pull the rider seat up.
1. Nut
XVS1100
1. Projection
2. Seat holder
XVS1100
1. Bolt (× 2)
2. Bracket
XVS1100
