INSTRUMENT AND CONTROL FUNCTIONS
3-16
3

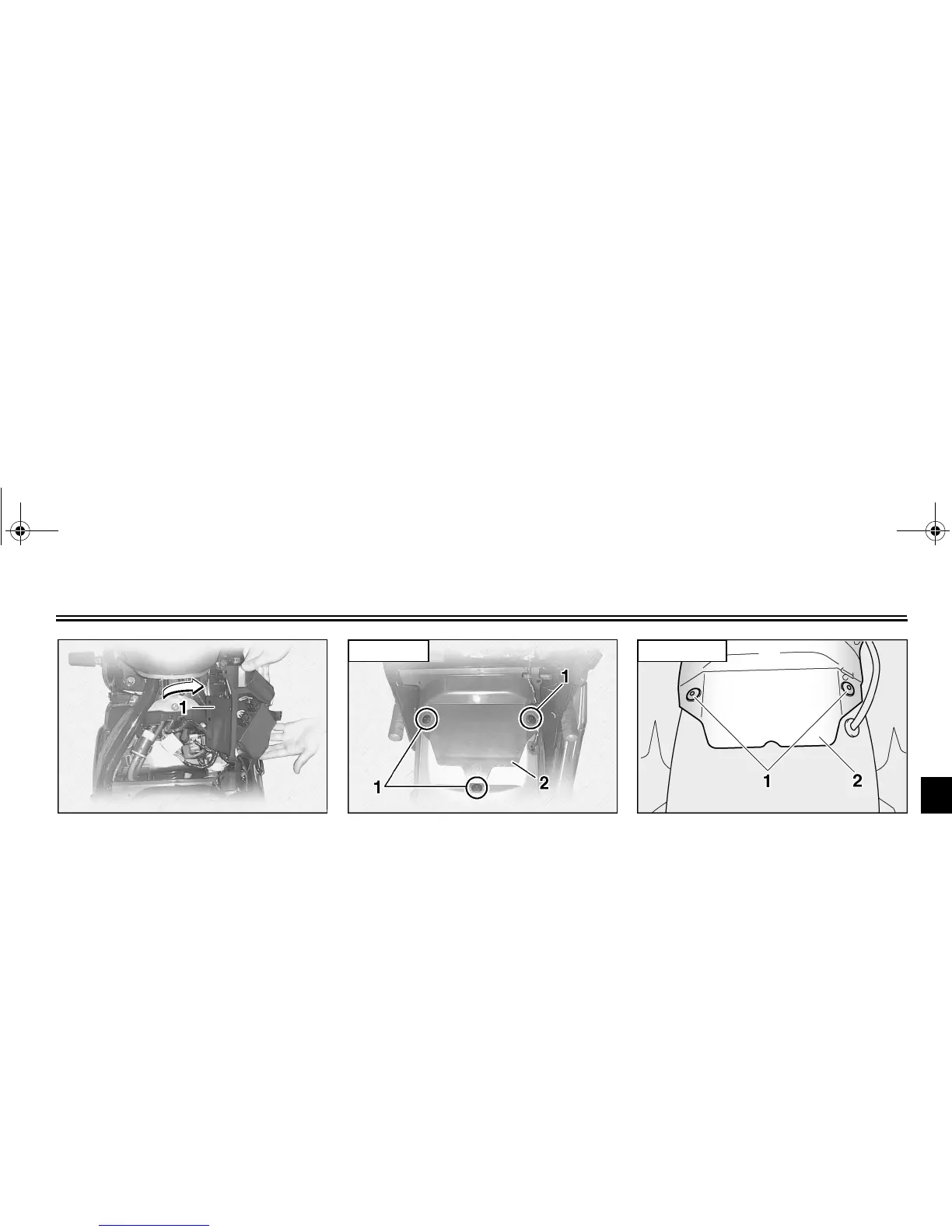

3. Pull the ignitor unit panel out to the
right.
4. Remove the mudguard by remov-
ing each quick fastener.
1. Ignitor unit panel 1. Quick fastener (× 3)
2. Mudguard
XVS1100
1. Quick fastener (× 2)
2. Mudguard
XVS1100A
