Yamaha YP400T - Installing the Starter Clutch; Installing the Generator

5 - 54
ENG
STARTER CLUTCH AND GENERATOR
EAS00355

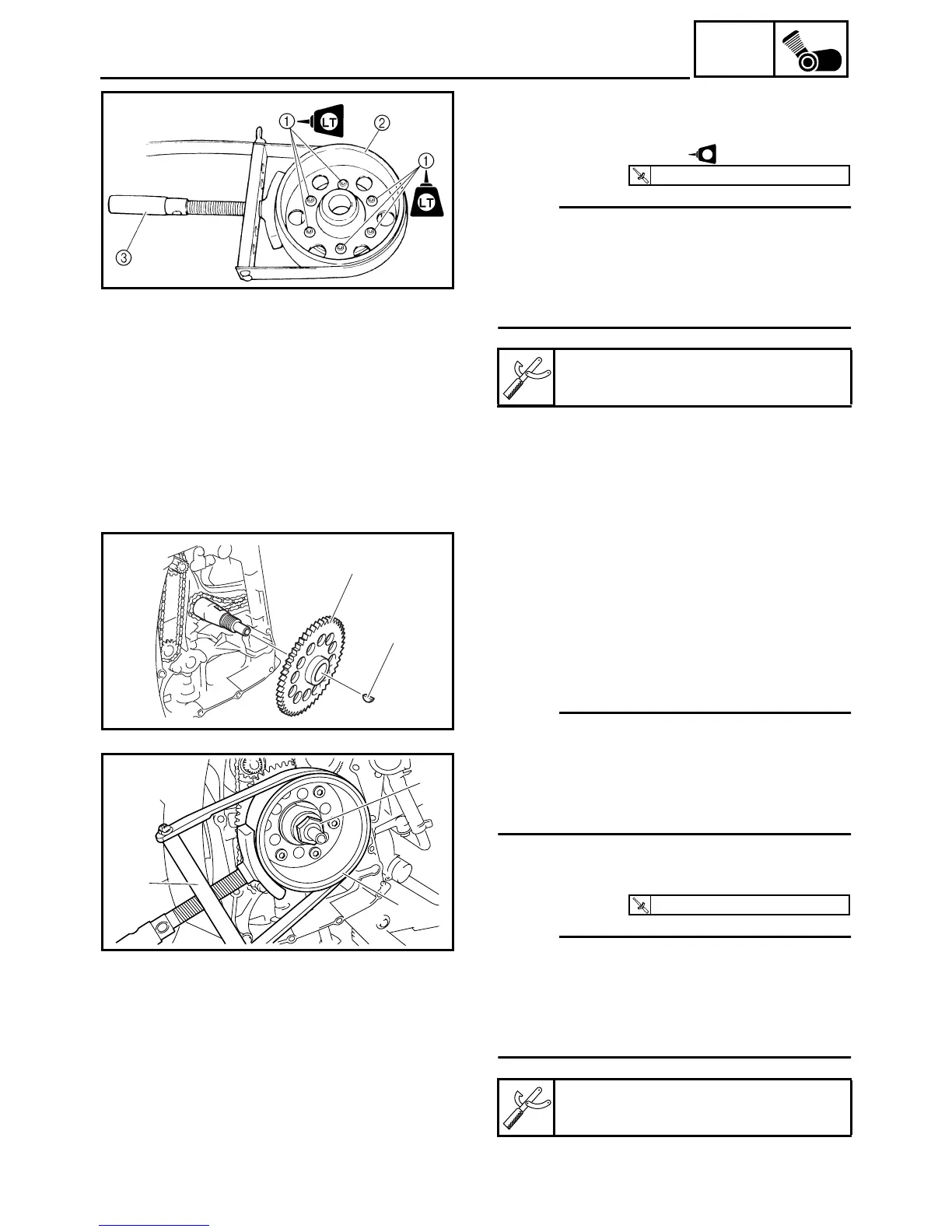

INSTALLING THE STARTER CLUTCH
1. Install:
• starter clutch bolts
1
NOTE:
_
• While holding the generator rotor
2
with the
sheave holder
3
, tighten the starter clutch
bolts.
• Do not allow the sheave holder to touch the
projection on the generator rotor.
Sheave holder
90890-01701, YS-01880-A
LT
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
EAS00354
INSTALLING THE GENERATOR
1. Install:
• starter clutch gear
1
• woodruff key
2
• generator rotor
• washer
• generator rotor nut
NOTE:
_
• Clean the tapered portion of the crankshaft
and the generator rotor hub.
• When installing the generator rotor, make
sure the woodruff key is properly seated in
the keyway of the crankshaft.
2. Tighten:
• generator rotor nut
1
NOTE:
_
• While holding the generator rotor
2
with the
sheave holder
3
, tighten the generator rotor
nut.
• Do not allow the sheave holder to touch the
projection on the generator rotor.
Sheave holder
90890-01701, YS-01880-A
2
1
1
2
3
T
R
.
.
130 Nm (13.0 m · kg, 94 ft · lb)
