Yamaha YZ250F 2006 User Manual

5 - 10
CHAS
FRONT BRAKE AND REAR BRAKE
EC5A0000
FRONT BRAKE AND REAR BRAKE
EC5A8000
FRONT BRAKE
Extent of removal:
1
Brake hose removal
2
Brake caliper removal
3
Brake master cylinder removal

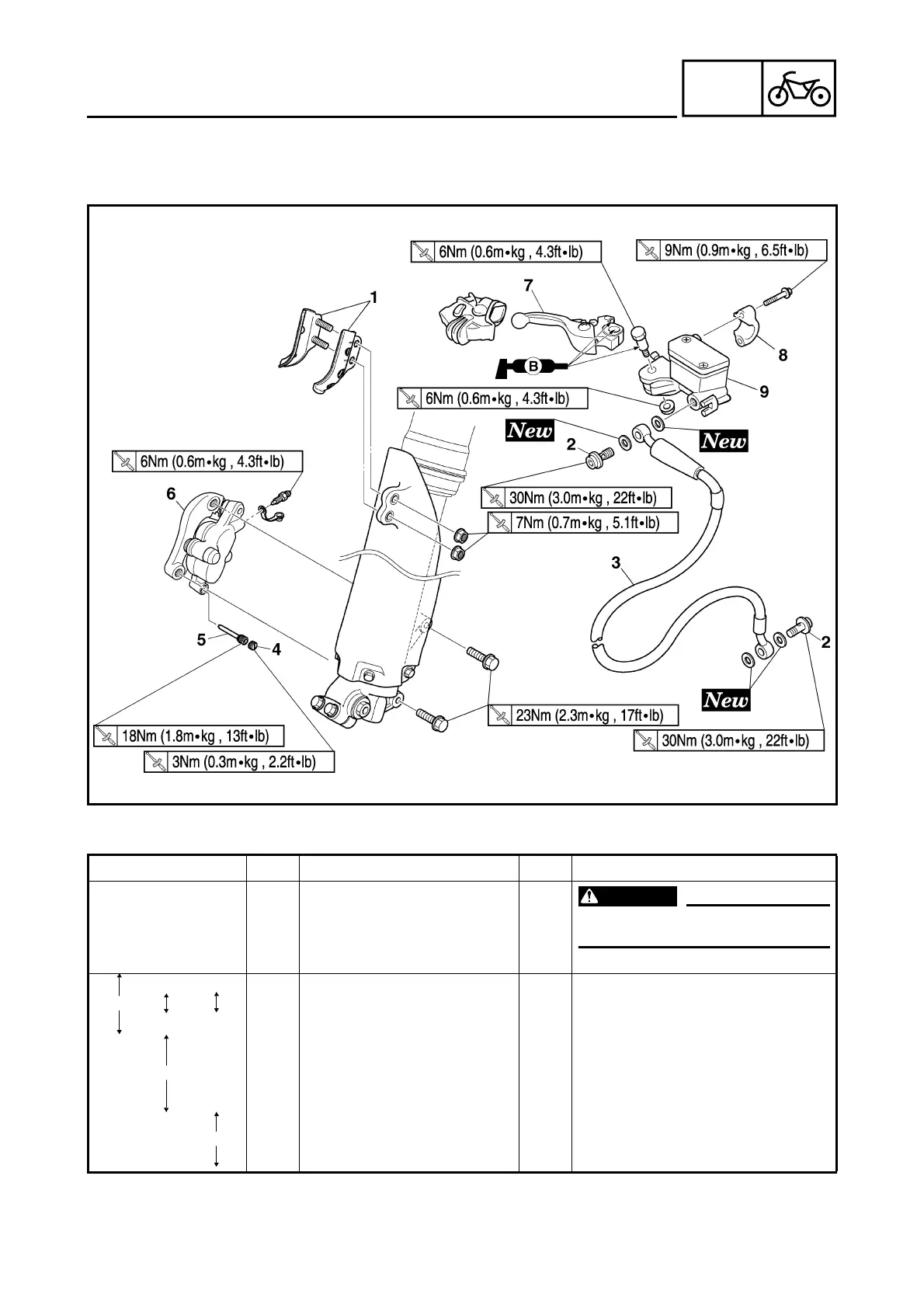

Extent of removal Order Part name Q’ty Remarks
FRONT BRAKE REMOVAL
WARNING
Support the machine securely so
there is no danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Drain the brake fluid. Refer to “REMOVAL POINTS”.
1 Brake hose holder (protector) 2
2 Union bolt 2
3 Brake hose 1
4 Pad pin plug 1 Remove when loosening the pad pin.
5 Pad pin 1 Loosen when disassembling the brake
caliper.
6 Brake caliper 1
7Brake lever 1
8 Brake master cylinder bracket 1
9 Brake master cylinder 1
3
3
2
2
1

Yamaha YZ250F 2006 Specifications

General

Displacement	249cc
Bore x Stroke	77.0mm x 53.6mm
Compression Ratio	12.5:1
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Tire	80/100-21
Rear Tire	100/90-19
Engine Type	Liquid-cooled, 4-stroke, DOHC, 5-valve
Fuel System	Keihin FCR37
Front Suspension	48mm inverted telescopic fork, fully adjustable
Rear Suspension	Fully adjustable monoshock
Front Brake	Hydraulic single disc
Rear Brake	Hydraulic single disc
Dry Weight	204 lbs
Wheelbase	58.1 in
Ground Clearance	14.6 in
Seat Height	995mm (39.2 inches)
