Yamaha YZ250F 2014 Service Manual

FRONT FORK
4-37
EAS1SM1165
FRONT FORK

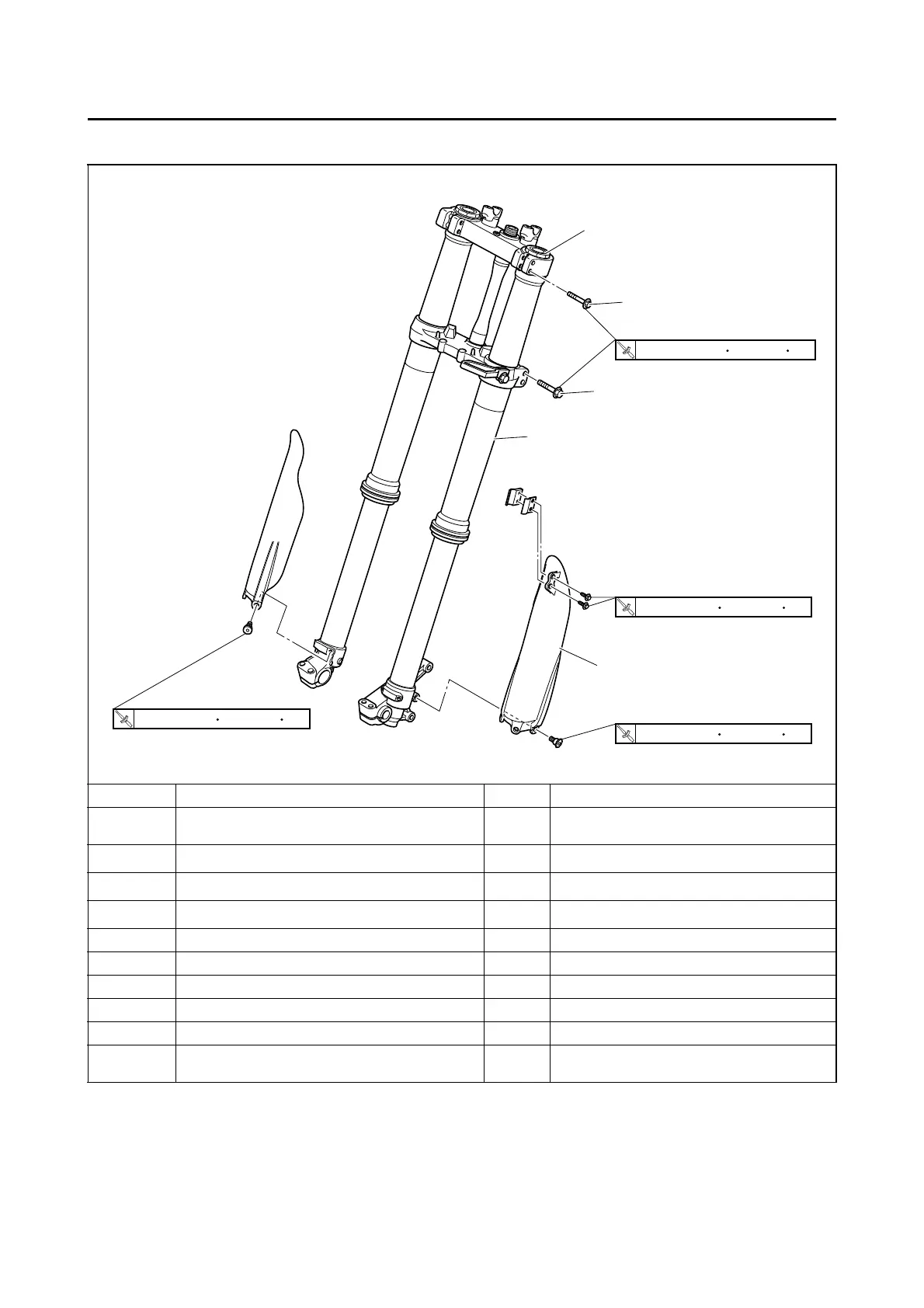

Removing the front fork legs
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
Front wheel Refer to “FRONT WHEEL” on page 4-3.
Front brake caliper Refer to “FRONT BRAKE” on page 4-11.
Number plate Refer to “GENERAL CHASSIS” on page 4-1.
1 Protector 1
2 Upper bracket pinch bolts 2 Loosen.
3 Damper assembly 1 Loosen.
4 Lower bracket pinch bolts 2 Loosen.
5 Front fork leg 1
For installation, reverse the removal proce-
dure.
3
2
4
5
1
T
.R.
21 Nm (2.1 m lbf)kgf, 15 ft
T
.R.
9 Nm (0.9 m
lbf)kgf, 6.5 ft
T
.R.
5 Nm (0.5 m
lbf)kgf, 3.6 ft
T
.R.
5 Nm (0.5 m
lbf)kgf, 3.6 ft

Yamaha YZ250F 2014 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	250cc
Bore x Stroke	77.0mm x 53.6mm
Compression Ratio	13.5:1
Fuel Delivery	Fuel Injection
Ignition	TCI
Transmission	Constant-mesh 5-speed; multiplate wet clutch
Final Drive	Chain
Suspension / Front	KYB® Speed-Sensitive System inverted fork; fully adjustable, 12.2-in travel
Brakes / Front	Hydraulic single disc brake, 250mm
Brakes / Rear	Hydraulic single disc brake, 245mm
Tires / Front	80/100-21
Tires / Rear	100/90-19
Seat Height	38.0 in
Ground Clearance	12.8 in
Fuel Capacity	2.0 gal
Wet Weight	231 lb
Suspension / Rear	KYB® Fully adjustable single shock; 12.4-in travel
Wheelbase	58.3 in
Trail	4.7 in
