OIL PUMP
5-54
EAS24980
CHECKING THE OIL PIPES
The following procedure applies to all of the oil
delivery pipes.
1. Check:
• Ventilation chamber oil drain pipe
• Oil pipe
Damage → Replace.
Obstruction → Wash and blow out with com-
pressed air.
EAS24990
CHECKING THE OIL STRAINER
1. Check:
• Oil strainer
Damage → Replace.
Contaminants → Clean with solvent.
EAS25010

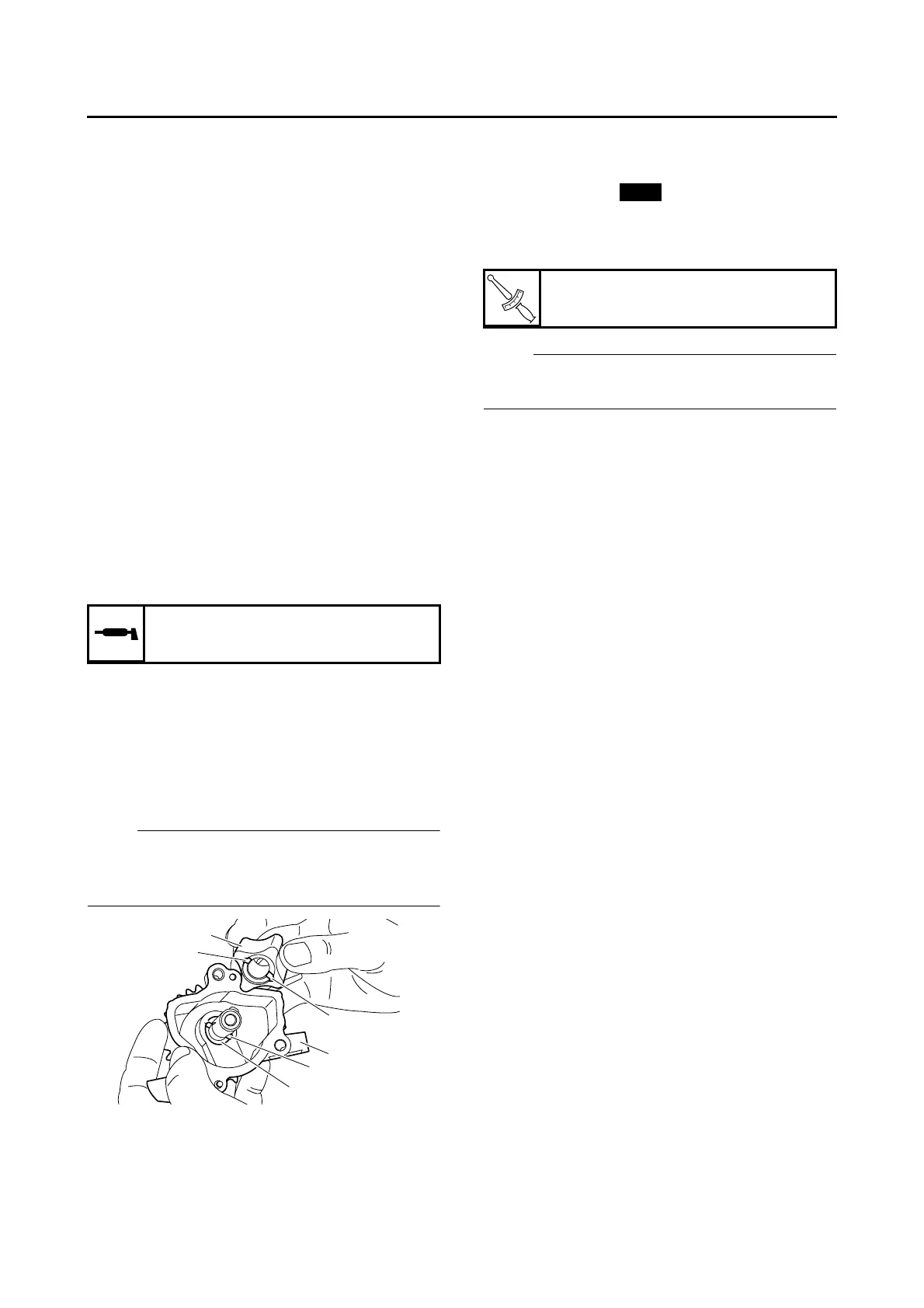

ASSEMBLING THE OIL PUMP
1. Lubricate:
• Inner rotor
• Outer rotor
• Oil pump shaft
(with the recommended lubricant)
2. Install:
• Oil pump driven sprocket
• Oil pump housing “1”
• Washer “2”
• Pin “3”
• Oil pump inner rotor “4”
• Oil pump outer rotor
NOTE:
When installing the inner rotor, align the pin “3”
in the oil pump shaft with the groove “a” in the in-
ner rotor “4”.
3. Check:
• Oil pump operation
Refer to “CHECKING THE OIL PUMP” on
page 5-53.
EAS25050
INSTALLING THE OIL PAN
1. Install:
• Oil pan gasket
• Oil pan
• Bottom cowling brackets
• Oil level switch lead holder
NOTE:
Tighten the oil pan bolts in stages and in a criss-
cross pattern.
Recommended lubricant
Engine oil
1
a
3
2
4
a
T
R
.
.
Oil pan bolt
12 Nm (1.2 m·kg, 8.7 ft·lb)
New

Yamaha YZF-R6(V) 2006 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, forward-inclined parallel 4-cylinder
Displacement	599 cc
Bore x Stroke	67.0 x 42.5 mm
Compression Ratio	12.8 : 1
Fuel System	Fuel injection
Lubrication system	Wet sump
Final Drive	Chain
Rear Suspension	Swingarm, (link suspension)
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Overall Length	2, 040 mm
Overall Height	1, 100 mm
Seat Height	850 mm
Minimum Ground Clearance	130 mm
Oil capacity	3.4 litres
Ignition	TCI
Clutch Type	Wet, multiple-disc
Transmission	6-speed
Frame type	Aluminium Deltabox
Front Brake	Dual 310 mm discs
Rear Brake	220 mm disc
Fuel Capacity	17 liters
