Yamaha YZF-R7 User Manual

7 - 78
CHAS
EB706204

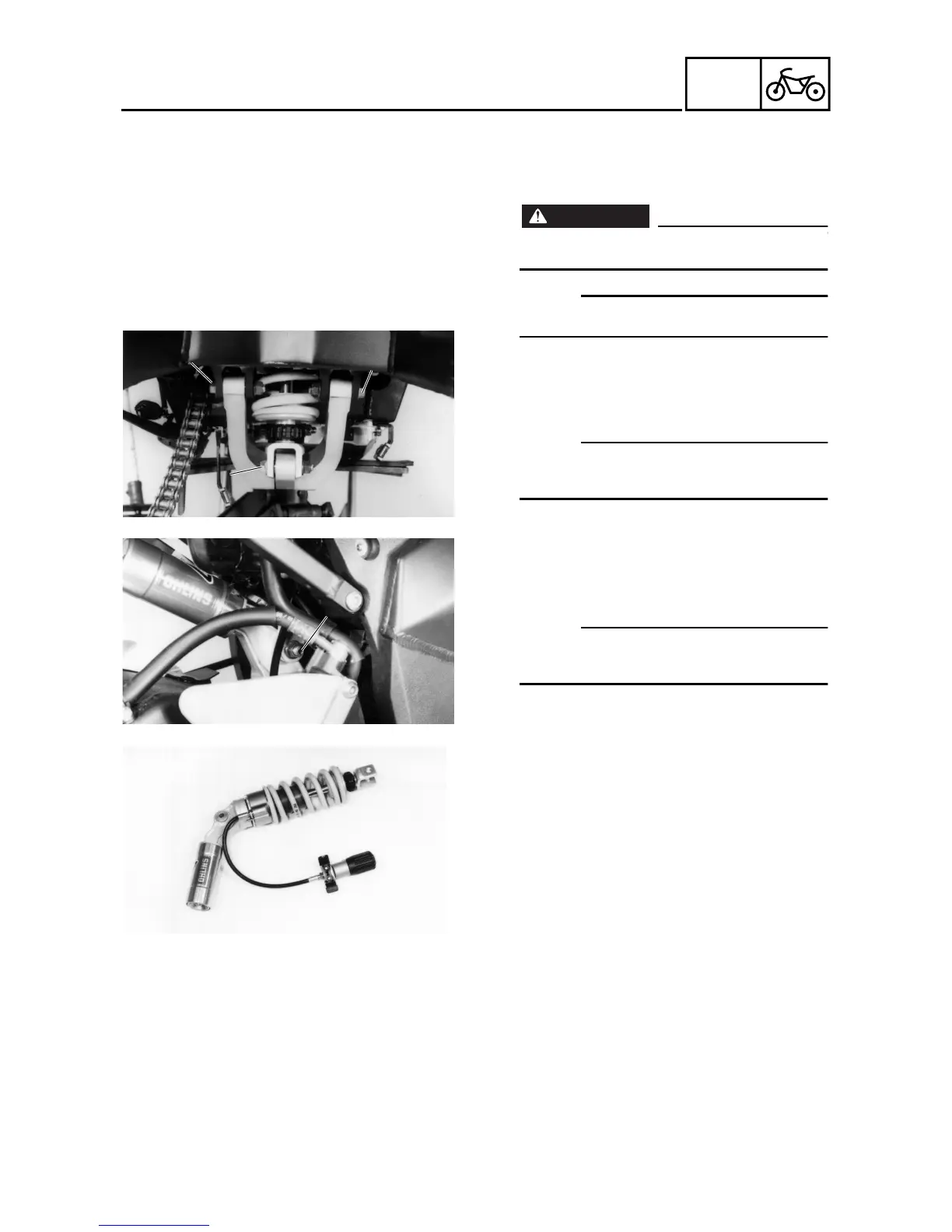

REMOVING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Stand the motorcycle on a level surface.
WARNING
WARNING
Securely support the motorcycle so that
there is no danger of it falling over.
NOTE:
Place the motorcycle on a suitable stand
so that the rear wheel is elevated.
2. Remove:
• rear shock absorber assembly lower
bolt 1
• connecting arm-to-swingarm bolt 2
NOTE:
While removing the rear shock absorber
assembly lower bolt, hold the swingarm
so that it does not drop down.
2

2

2

2

1

1

3. Remove:
• rear shock absorber assembly upper
bolt 1
• rear shock absorber assembly
NOTE:
Raise the swingarm and then remove
the rear shock absorber assembly from
between the swingarm.
1

1

EB706401
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY AND GAS CYLINDER
1. Check:
• rear shock absorber rod
Bends/damage → Replace the rear
shock absorber assembly.
• rear shock absorber
Gas leaks/oil leaks → Replace the rear
shock absorber assembly.
• spring
Damage/wear → Replace the rear
shock absorber assembly.
• gas cylinder
Damage/gas leaks → Replace.
• bushings
Damage/wear → Replace.
• dust seals
Damage/wear → Replace.
• bolts
Bends/damage/wear → Replace.
REAR SHOCK ABSORBER ASSEMBLY

Yamaha YZF-R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel injection
Final Drive	Chain
Front Brakes	Dual 298mm hydraulic disc; ABS
Rear Brakes	245mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Seat Height	32.9 in
Fuel Capacity	3.4 gal
Wet Weight	414 lb
Ground Clearance	5.3 in
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Transmission	6-speed
Front Suspension	41mm KYB inverted fork, adjustable preload, rebound and compression damping; 5.1-in travel
Rear Suspension	Single shock, adjustable preload and rebound damping; 5.1-in travel
