Yamaha Z200N User Manual

5-47
POWR
E
CRANKCASE
CRANKCASE
5

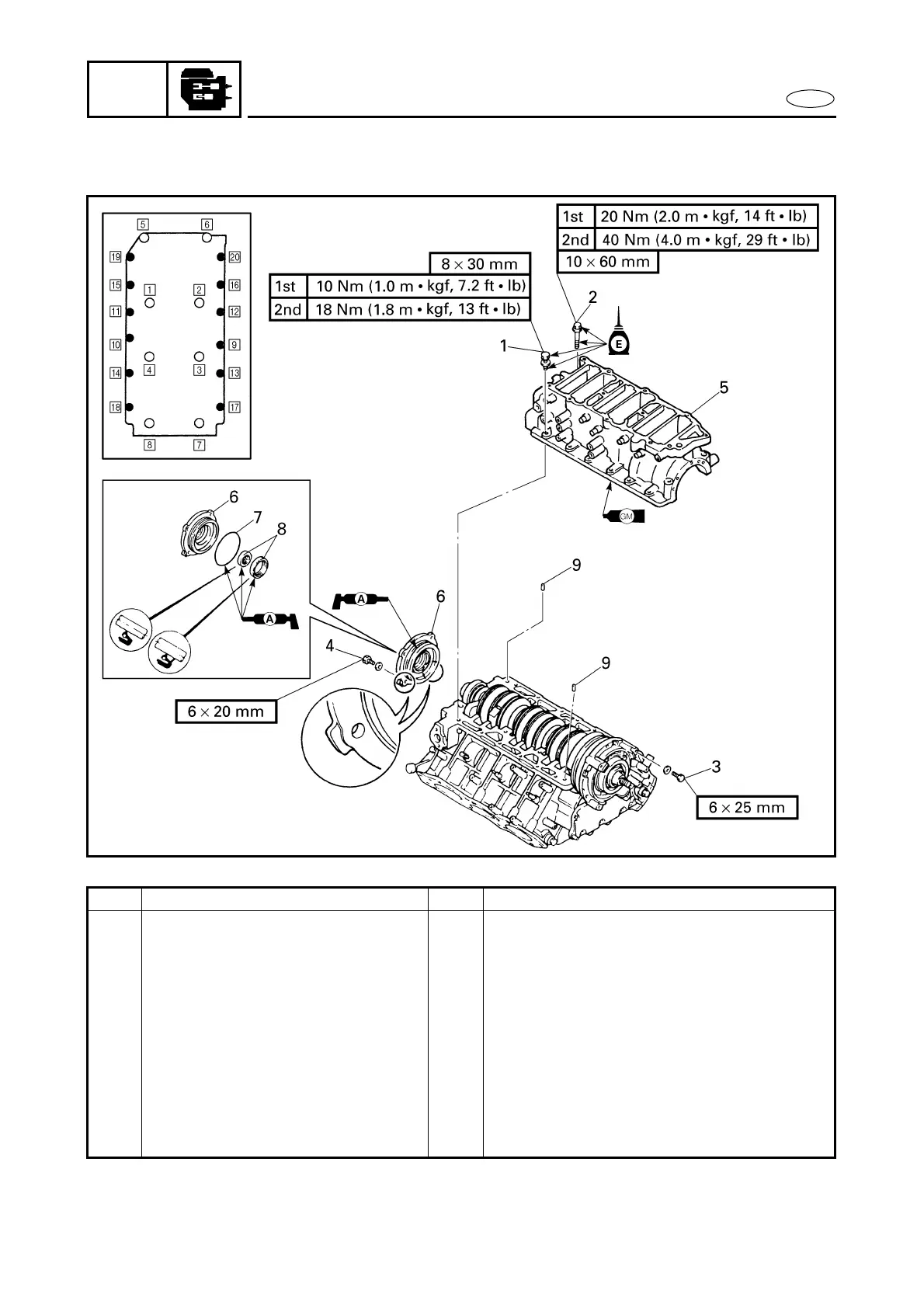

REMOVING/INSTALLING THE CRANKCASE 5
Order Job/Part Q’ty Remarks
Flywheel magnet assembly Refer to “FLYWHEEL MAGNET
ASSEMBLY” on page 5-1.
Power unit Refer to “POWER UNIT” on page 5-4.
Pulser coil assembly Refer to “STATOR ASSEMBLY” on
page 5-12.
Intake manifold Refer to “REED VALVES” on page 5-32.
External fittings Refer to “EXTERNAL FITTINGS” on
page 5-35.
1 Bolt 12
2 Bolt 8
Continued on next page.
5320

Yamaha Z200N Specifications

General

Engine Type	2-Stroke
Horsepower	200 hp
Max Power Output	147.1 kW
Full Throttle RPM Range	5000-6000 RPM
Starting System	Electric
Gear Shift	Forward, Neutral, Reverse
Displacement	2596 cc
Shaft Length	L, X
Gear Ratio	1.86 (26/14)
