6-39
E
LOWR
PROPELLER SHAFT HOUSING ASSEMBLY
(COUNTER ROTATION MODELS)
6

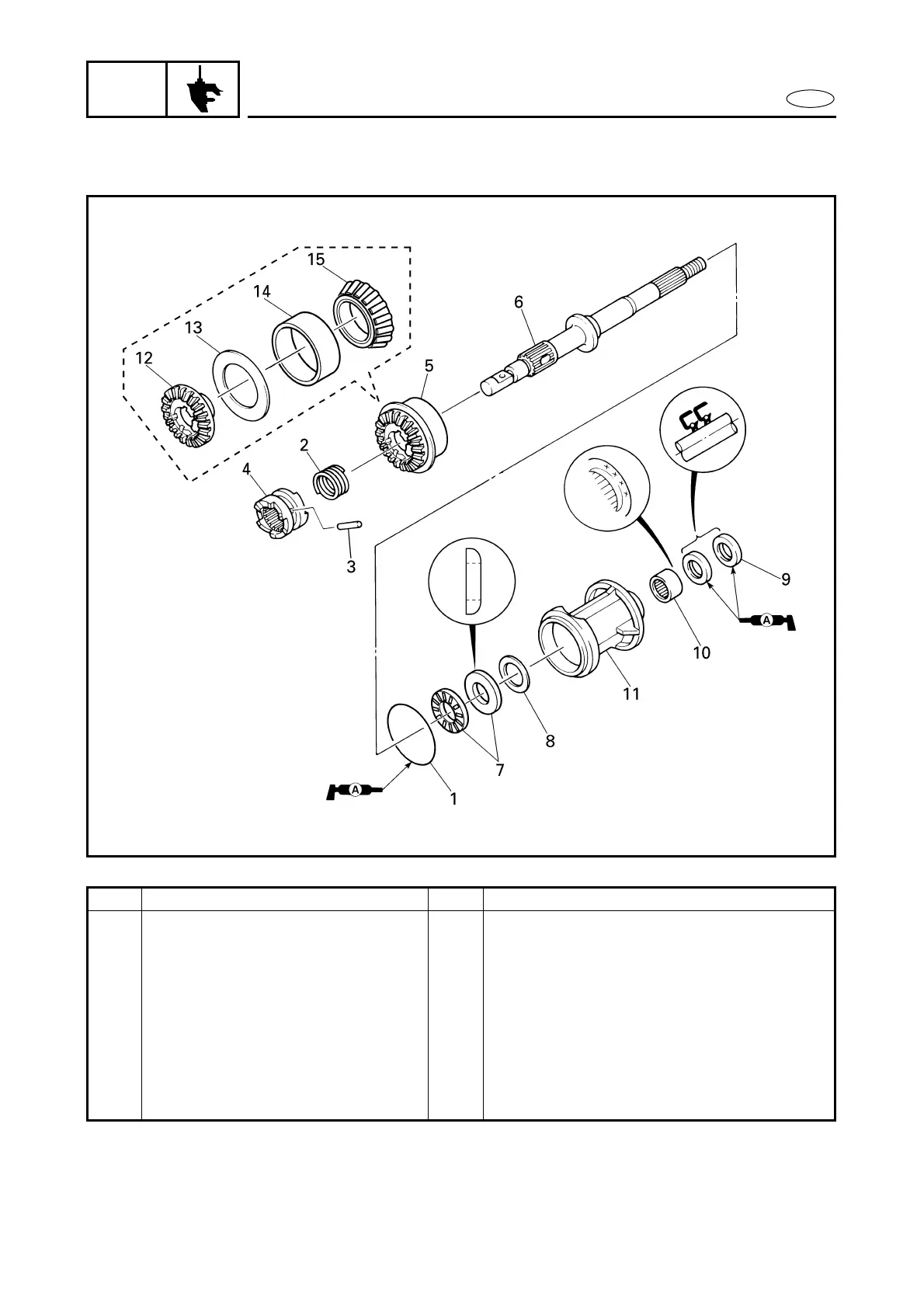

DISASSEMBLING/ASSEMBLING THE PROPELLER SHAFT HOUSING ASSEMBLY
Order Job/Part Q’ty Remarks
1 O-ring 1
2 Spring 1
3 Pin 1
4 Dog clutch 1
5 Forward gear assembly 1
6 Propeller shaft assembly 1
7 Thrust bearing 1
8 Propeller shaft shim *
Continued on next page.
*: As required
