INSTRUMENT AND CONTROL FUNCTIONS
EAU1044D
INSTRUMENT AND CONTROL FUNCTIONS
EAU10460

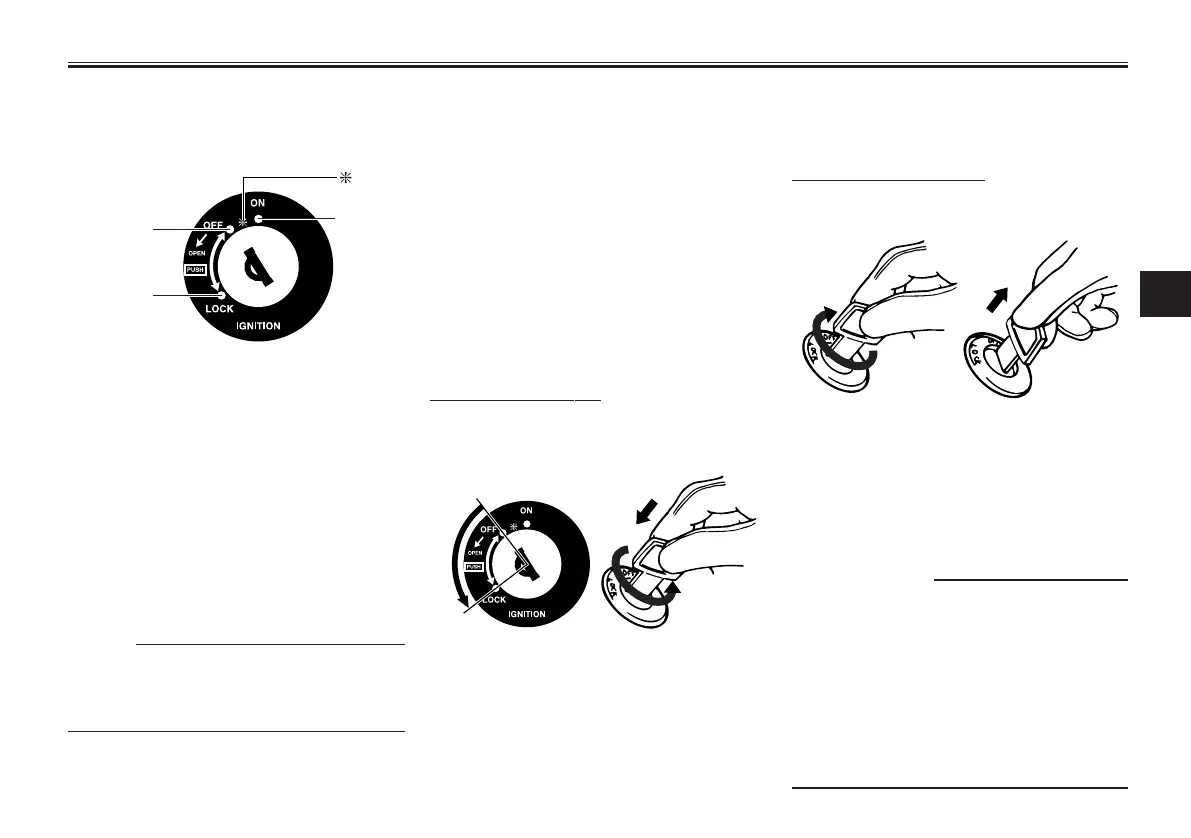

Main switch/steering lock
ZAUM00**
ON
OFF
LOCK
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
Main switch/steering lock<IXE>
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAUT1020
ON
All electrical circuits are supplied with
power, the taillight and the license plate
light come on, and the engine can be
started. The key cannot be removed.
NOTE:
The headlight and meter lighting come
on automatically when the engine is
started.
EAU10670
*
The 2-stroke engine oil level warning
light should come on. (See page 3-2.)
EAU10680
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be re-
moved.
To lock the steering
ZAUM00**
1
1. Push
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
1
2
ZAUM00**
1. Turn
2. Release
Push the key in, and then turn it to “OFF”
while still pushing it.
EWA10060
w
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
