III-2 MAGNETO
A. Disassembly
1. Remove starter pulley bolt (P-67) and washer (P-82).
2. Remove starter pulley (P-28).
3. Remove key (P-98).
4. Remove four clamp plate nuts (M-42) washers (M-20) and clamp plates (M-41).
5. Remove coil plate assembly (M-1). Tap with soft hammer to lift up.
See figure 11.
6. Remove flywheel nut (M-46). Use special tool 102-809-0100. Clamp flywheel.
See figure 12.
7. Remove flywheel (M-44) using special tool 102-809-0200. See figure 13.
8. Clean all parts in solvent. Wipe dry or blow with air.

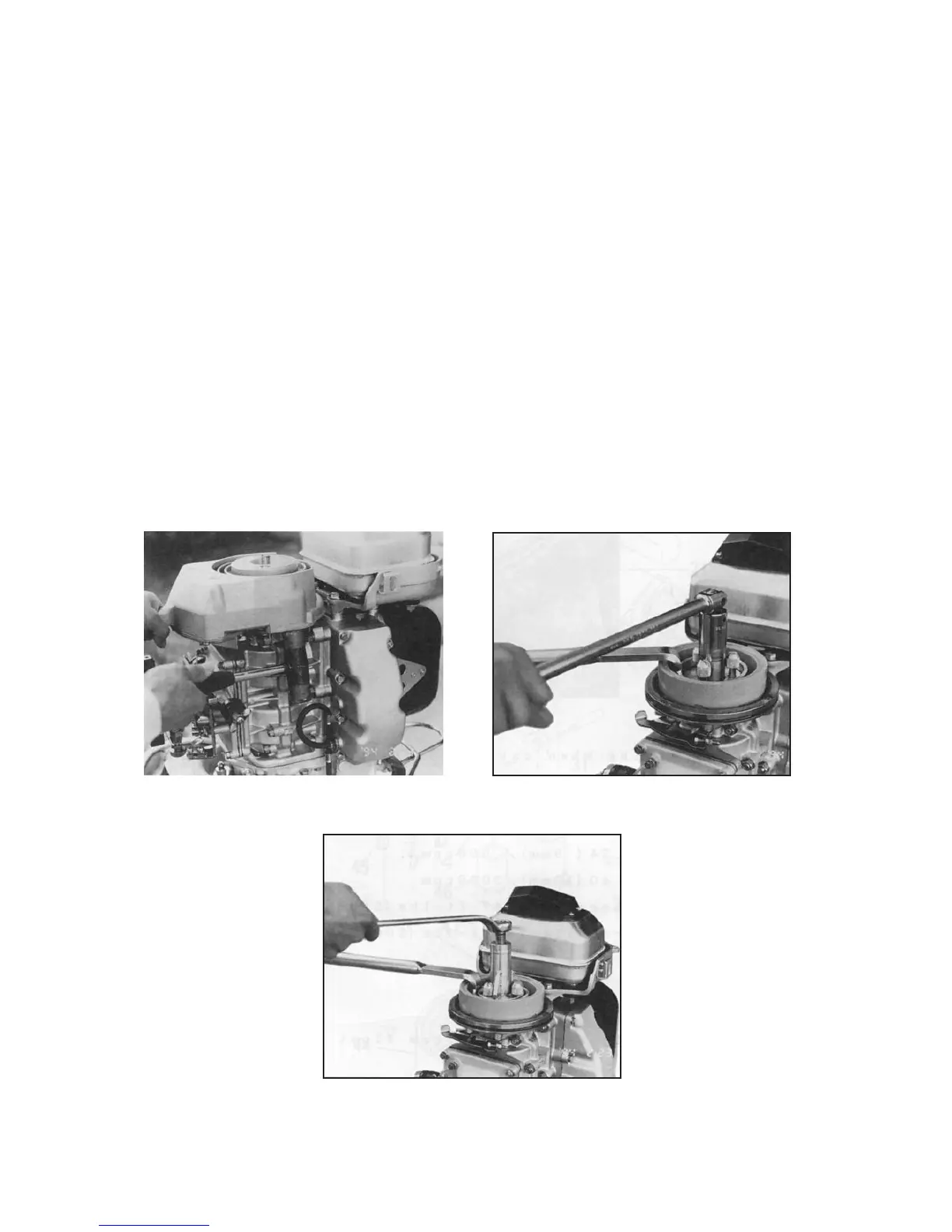

Figure 11 Figure 12
Figure 13
– 13 –
