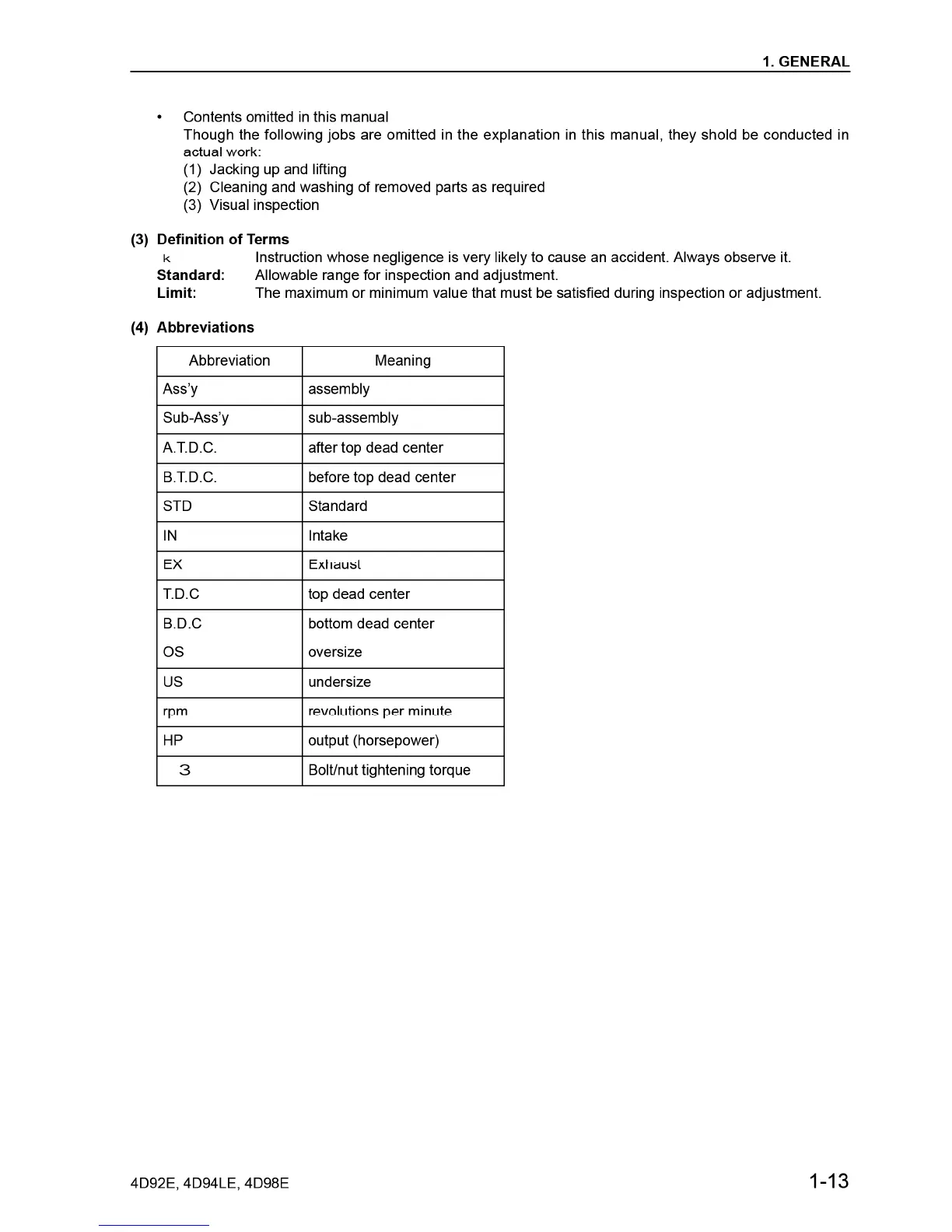

1.
GENERAL
Contents omitted
in
this manual
Though the following
jobs
are omitted in the explanation
in
this manual, they shold be conducted in
actual work:
(1) Jacking up and lifting
(2) Cleaning and washing
of
removed parts as required
(3) Visual inspection
(3)
Definition
of
Terms
k
Standard:
Instruction whose negligence is very likely to cause an accident. Always observe it.
Allowable range for inspection and adjustment.
Limit:
The maximum or minimum value that must be satisfied during inspection or adjustment.
(4)
Abbreviations
Abbreviation Meaning
Ass'y
assembly
Sub-Ass'y
sub-assembly
AT
D.C. after top dead center
B.TD.C. before top dead center
STD Standard
IN
Intake
EX Exhaust
TD.C
top dead center
B.D.C bottom dead center
as
oversize
US undersize
rpm revolutions per minute
HP
output (horsepower)
3
Bolt/nut tightening torque
4D92E,4D94LE,4D98E
1-13
