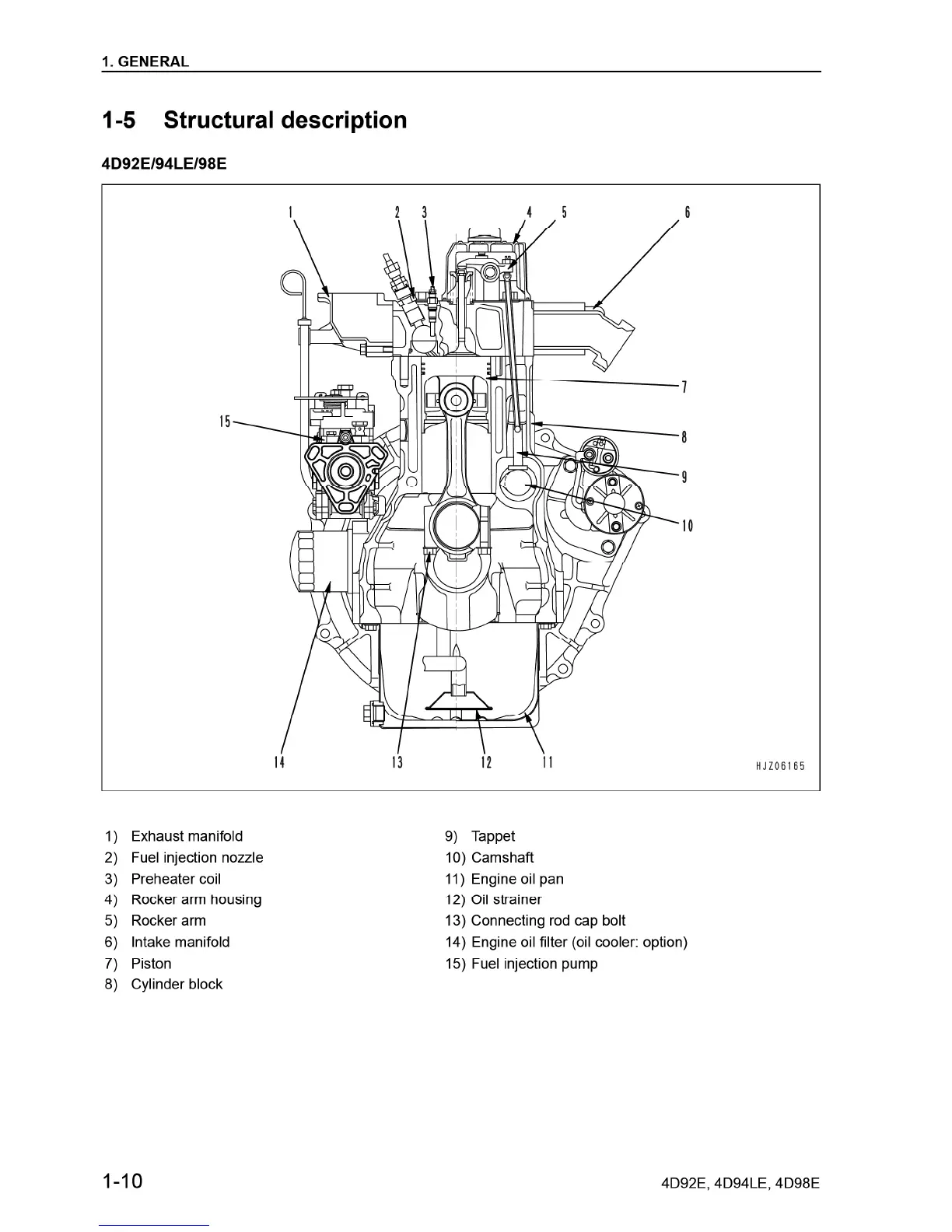

Yanmar 4D98E - Structural Description

1. GENERAL
1-5 Structural description
4D92E/94LE/98E
4
15
10
14
13 12 II
HJZ06165
1) Exhaust manifold 9) Tappet
2) Fuel injection nozzle 10) Camshaft
3) Preheater coil 11) Engine oil pan
4) Rocker arm housing 12) Oil strainer
5) Rocker arm 13) Connecting rod cap bolt
6) Intake manifold 14) Engine oil filter (oil cooler: option)
7) Piston 15) Fuel injection pump
8) Cylinder block
1-10
4D92E,4D94LE,4D98E
