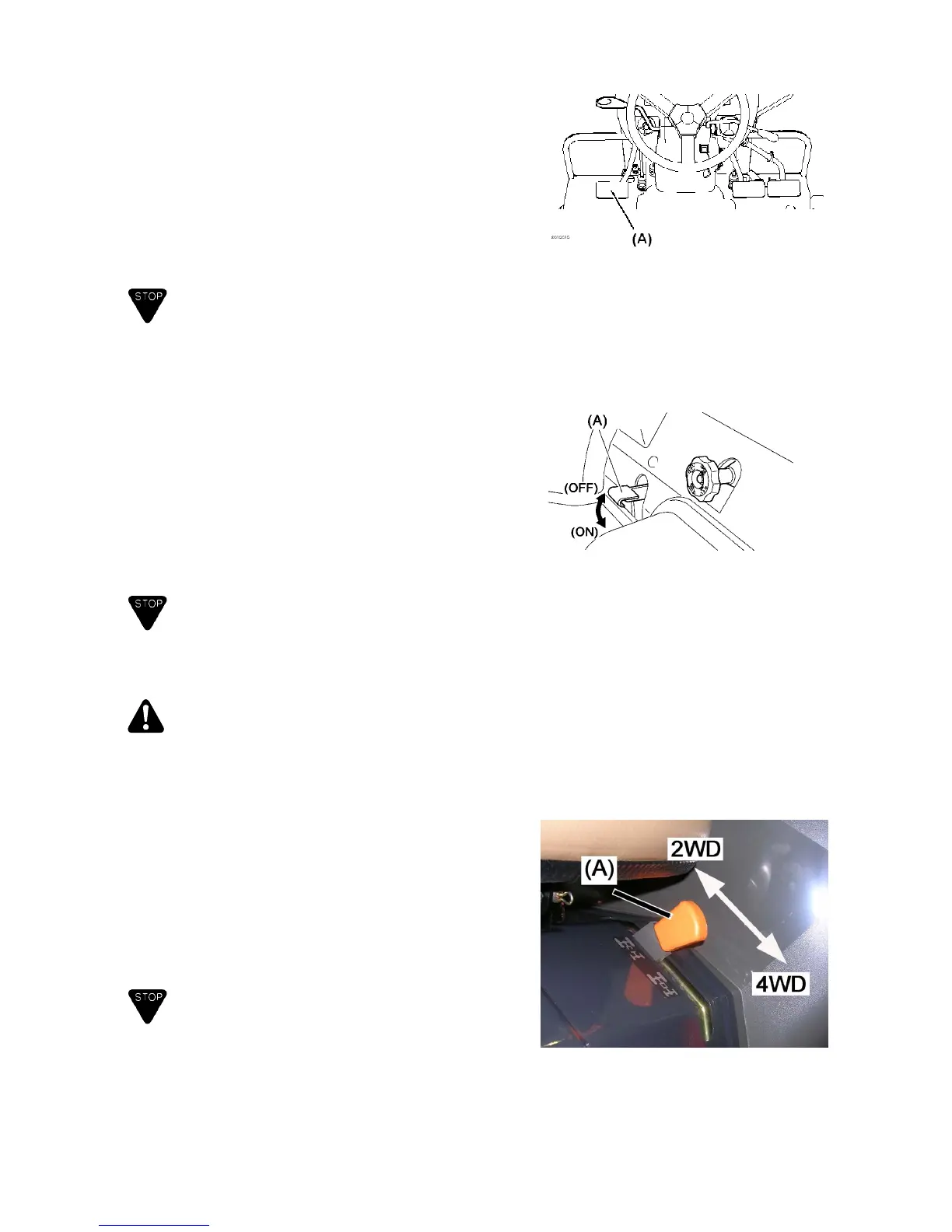

Clutch pedal
The clutch pedal transmits or cuts engine power to
transmission.
To disengage the clutch, depress clutch pedal and
engine power is disconnected.
To engage the clutch after depressing clutch pedal,
release the pedal slowly and engine power transmits to
transmission.
(A) Clutch pedal
IMPORTANT
Do not rest your foot on the clutch pedal while
operating. It may cause premature wearing of clutch
disc.
Differential gear lock pedal
A differential gear system is equipped on front and rear
axles of this tractor for smooth turning.
Depressing this pedal locks rear axle differential gear
box and rear wheels rotate as if right and left axles are
connected. When one side rear wheel spins and the
other does not rotate, depress the pedal to lock the
differential gear for escaping.
To unlock differential, release the depressed pedal.
IMPORTANT
When differential gear is locked, drive tractor slow
speed and keep going straight. Never steer tractor
while depressing the pedal.
WARNING
Never fail to unlock the differential gear after escaping
from the place. Otherwise, you can not make an
intended turn and an accident may result.
(A) Differential lock pedal
(ON) Lock differential gear
(keep depressing pedal)
(OFF) Release lock (release pedal)
Front wheel drive lever
The lever engages or disengages front wheel drive.
Depress clutch pedal and move the lever when tractor
stops.
(A) Front wheel drive lever
(4WD) ON: Four-wheel drive
(2WD) OFF: Two-wheel drive
IMPORTANT
Be sure tractor stops whenever move the lever.
Disengage front wheel drive when drive with high gear
on a road, hard surface place or towing trailer.
