L-N Operation Manual
COMPONENT IDENTIFICATION

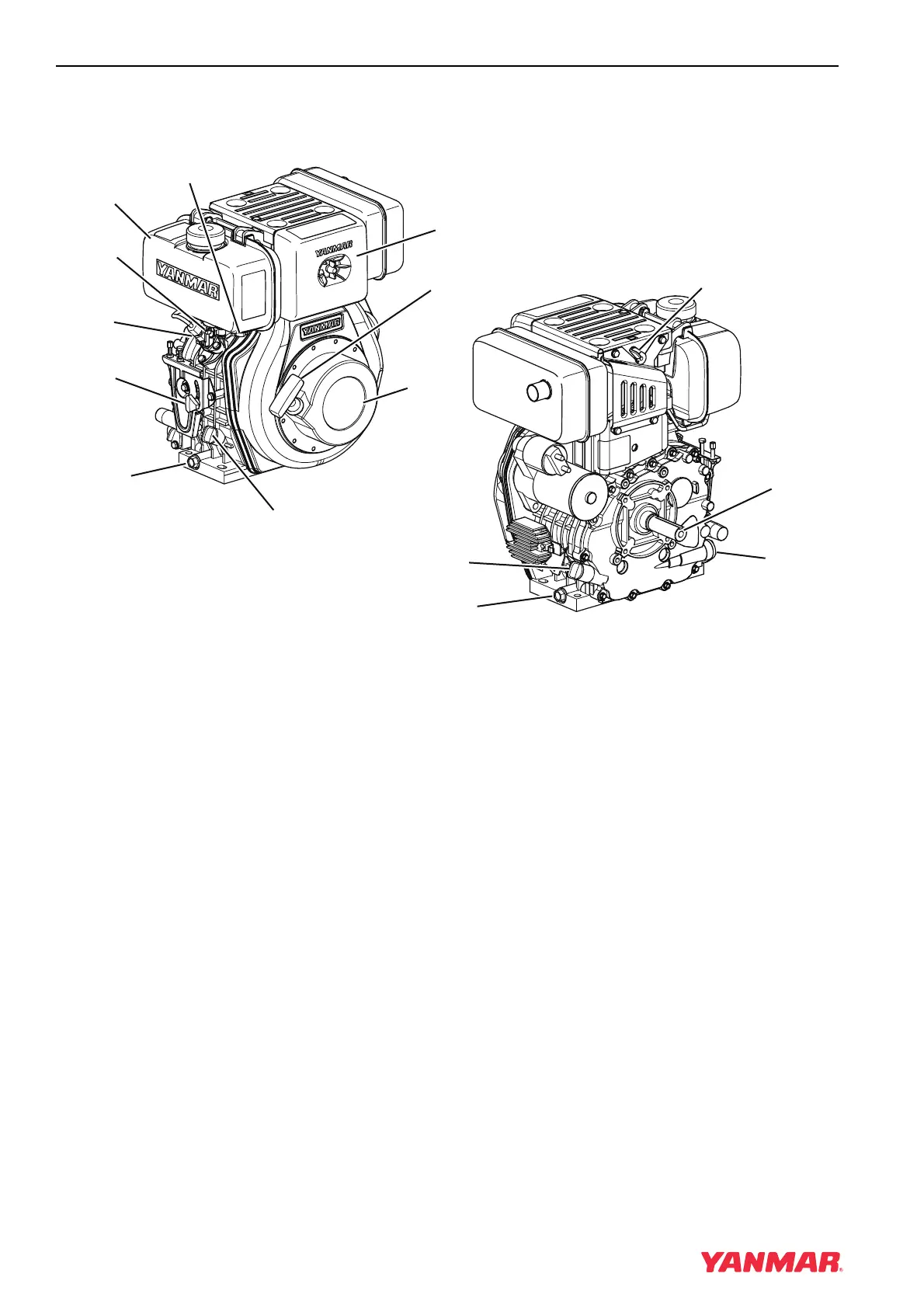

Figure 1 shows where major engine components are located.
Note: L48N standard engines are not equipped with covers. L70N and L100N engines are represented
in this manual.
0001126A
(3)
(4)
(5)
(6)
(8)
(9)
(10)
(1)
(11)
(7)
(7)
(6)
(12)
(13)
(2)
Figure 1
1. Fuel Drain Plug
2. Decompression Lever
3. Air Cleaner
4. Recoil Starter Handle
5. Recoil Starter
6. Oil Cap / Dipstick
7. Oil Drain Plug
8. Engine Speed Control Lever
9. Fuel Injection Pump
10. Fuel Cock
11. Fuel Tank
12. PTO Shaft
13. Oil Filter
