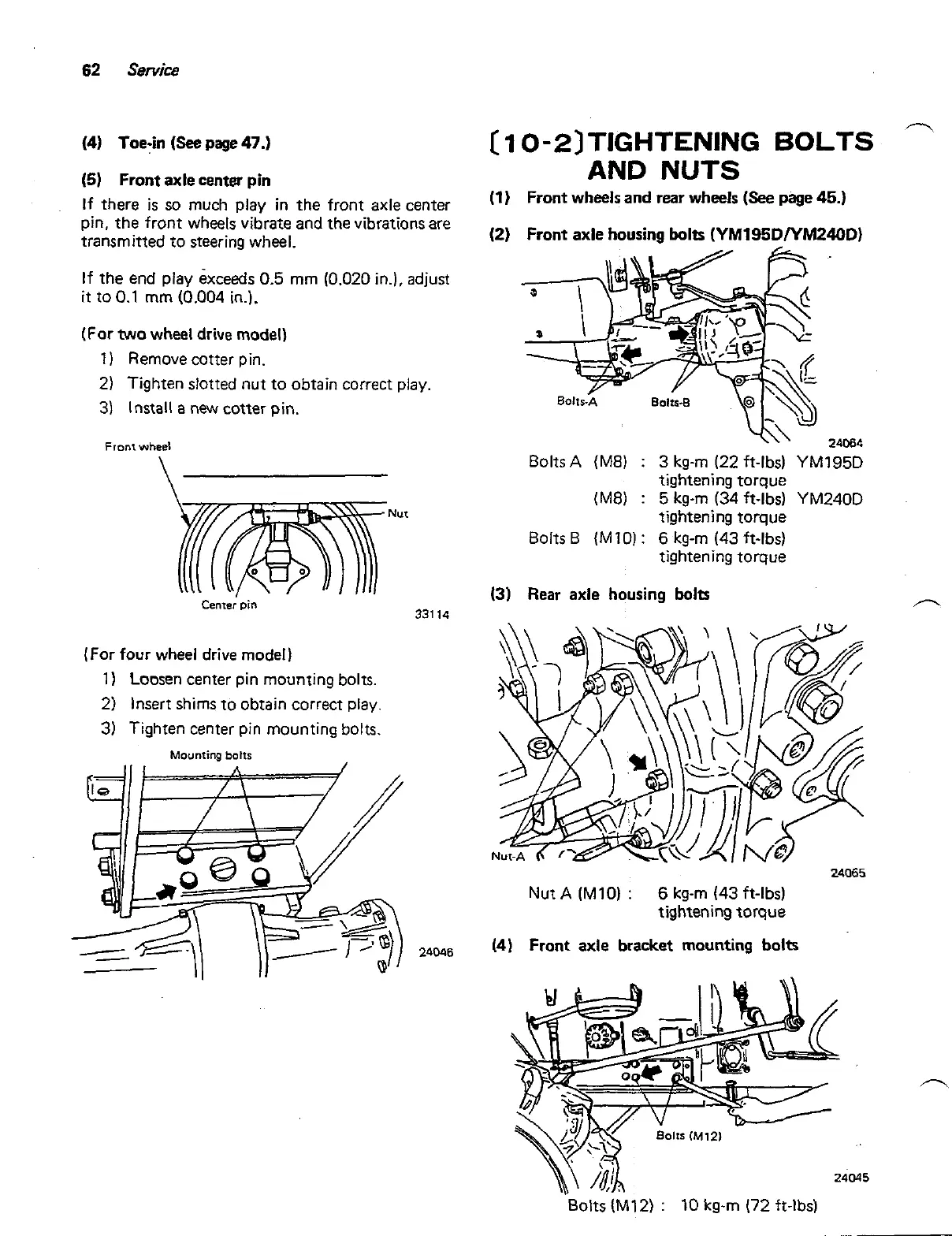

62
Service
(4) Toe-in
(See
page
47.)
(5)
Front axle center pin
If there
is
so much play in the front axle center
pin, the front wheels vibrate and the vibrations are
transmitted to steering wheel.
If the end play exceeds 0.5
mm (0.020 in.), adjust
it to 0.1 rnm (0.004
in.).
(For two wheel drive model)
1) Remove cotter pin.
2) Tighten slotted nut to obtain correct play.
3)
Install
a
new cotter pin.
From
wheel
\
cent&
pin
331
14
(For four wheel drive model)
1)
Loosen center pin mounting bolts
2) Insert shims to obtain correct play.
3) Tighten center pin mounting bolts.
Mounting
bolts
-
,--,
[
1
0-2)
TIGHTENING BOLTS
AND NUTS
(1) Front wheels and rear wheels
(See
page 45.)
(2) Front axle housing bolts
(YM195DIYM240D)
Bolts
A
(M8)
:
3 kg-rn (22 ft-lbs) YM195D
tightening torque
(Me)
:
5
kg-m (34 ft-lbs) YM240D
tightening torque
Bolts
B
(M10)
:
6
kg-m (43 ft-lbs)
tightening torque
(3)
Rear axle housing bolts
A
24065
Nut
A
(M10)
:
6
kg-m (43 ft-lbs)
tightening torque
(4)
Front axle bradcet mounting bolts
24045
Bolts (M12)
:
10 kg-m (72 ft-lbs)
To Next Page
