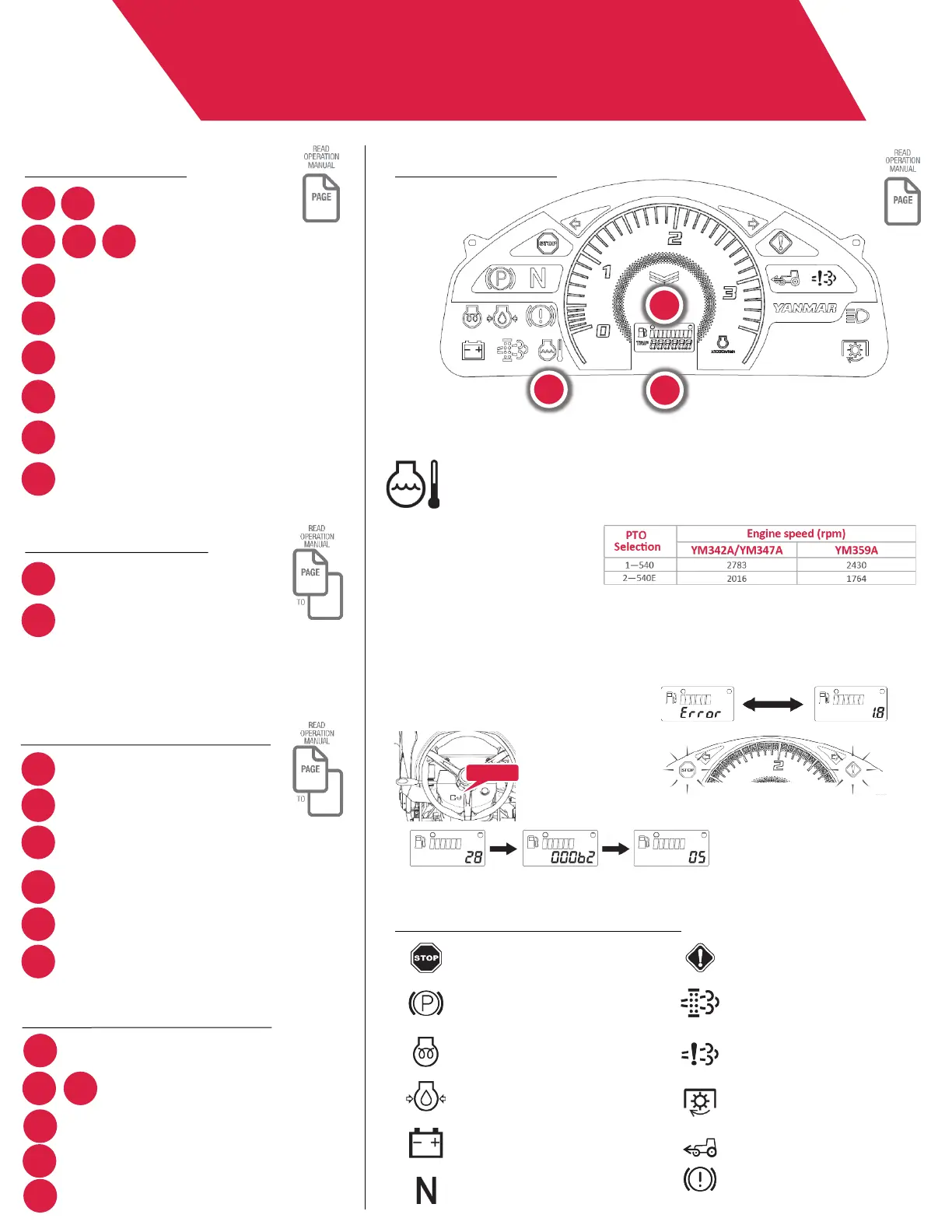

LAMPS & INDICATORS ON METER PANEL
YM342A
YM347A
YM359A
Start Engine
3
1
2
Parking brake set and locked
7
Shift 3-point hitch lever forward to lower
any attached implements to the ground.
8
Foot off of the accelerator pedal
PTO Operation
12
Select the desired position of the
PTO select lever [540E/540]
6
Push and rotate the PTO switch
to [ON]
Note: When the PTO lever is set to 540E (2), the engine speed will decrease if
the engine speed is greater than the maximum speed for the 540E selection.
Travel Speed Control
4
Stop the tractor to select the
range shift lever [L/H]
2
Parking brake released
8
Press or release the accelerator pedal
to adjust the travel speed.
1
3
Meter Panel
9
Push the throttle control lever forward to
increase the engine speed.
For More Control
15
Hydraulic flow control/stop knob
16
2WD/4WD lever
1. Coolant Temperature Lamp
2. Tachometer
2
Indicates the current engine speed
in increments of 100 Revolutions
Per Minutes (rpm).
5-13
7
3-point hitch control lever
Solid Green: The engine is in normal operating range.
Flashing Green: The engine is close to overheating.
Solid Red: The engine is overheating. Stop and check for debris blockage on radiator.
Flashing Red: Water temperature sensor failure.
Fuel gauge: Indicate fuel level. When the remaining fuel becomes extremely low, the icon will start blinking.
Hour meter: Always check the current engine operating hour for next service intervals.
3. LCD (Fuel gauge/Hour meter)
4. LCD (Error codes)
Push DISP switch (1)
Push DISP switch (2) Push DISP switch (3)
DISP Switch
Remark: When turning the Key switch
ON, all lamps turn on once. These
indicators are not used on the YM3 US
Version
PTO lamp
PTO switch is in the “ON” position.
Error NCD lamp
Issue is happening at EGR (Exhaust
Gas Recirculation) system.
DPF lamp
Request to perform DPF regeneration.
See back page.
Caution lamp
Electrical issue(s) is happening.
See “Error code”.
Engine stop lamp
Serious engine trouble is happening.
Parking brake indicator light
Indicate parking brake is engaged.
Glow lamp
Indicate engine air heater is working
for cold start.
Engine oil pressure warning light
Engine oil pressure issue is happening.
Charging light
Battery charging issue is happening.
N (Neutral) indicator light
Reverser lever is in the N (Neutral)
position.
6
Push and rotate the PTO switch to [OFF]
9
Push throttle control lever forward to
the 1/3 to 1/2 fast positions
10
Depress the clutch pedal fully
4 5
7-1
11
Turn the key switch [START]
9-1
9-5
8-6
8-9
3
Select gear with main shift lever
5
Position reverser lever to forward/backward
17
Differential Lock Pedal
13
Operator seat forward/backward
lever and seat suspension knob
14
Error Code: When an error occurs, ‘Error’
flashes and alternates with the normal display.
Error Normal
Press the DISP
switch three times
to display the code.
Each press displays
another element of
the code.
Lamps and Indicators
YANMAR COMPACT UTILITY TRACTOR | QUICK OPERATION AND MAINTENANCE GUIDE
Depress the clutch
and shift levers to neutral [N].
* Depress the clutch
*
*
*
*
* With the tractor in a stationary position, in neutral, and PTO switch off
To Next Page
